Accu-Cable SIP20MPC
Accu-Cable SIP20MPC
Roll over image to zoom in Click on image to zoom
Accu-Cable SIP20MPC
Accu-Cable SIP20MPC

Accu-Cable SIP20MPC

Accu-CableSKU: SIP293
Price:
$31.50

Description

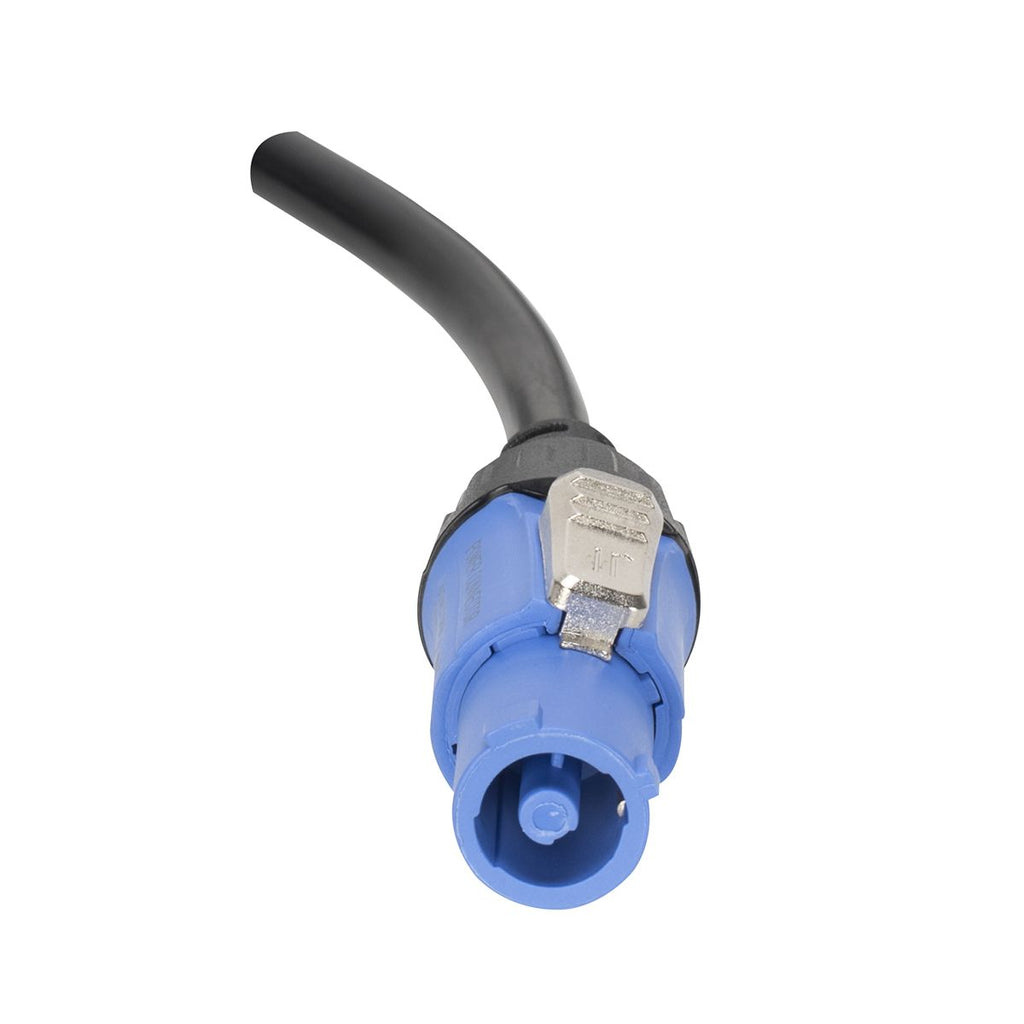

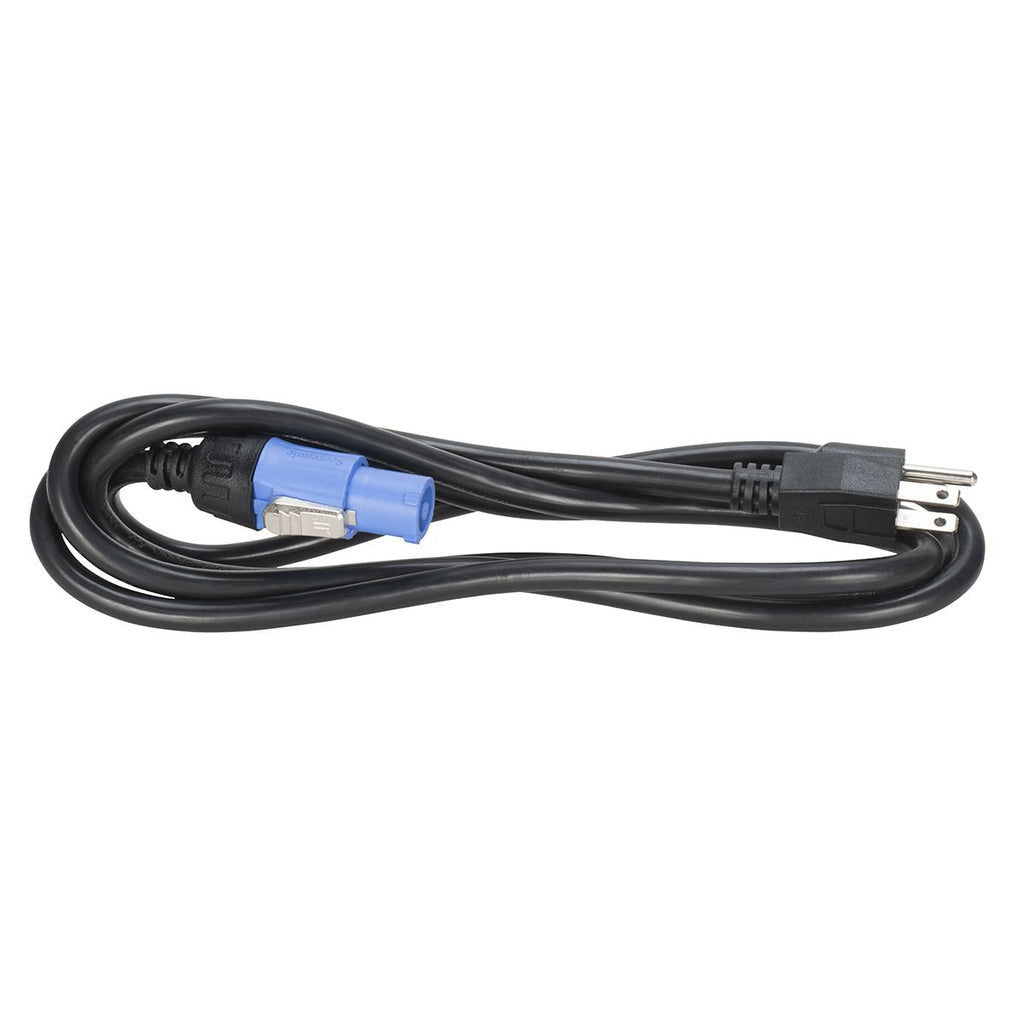

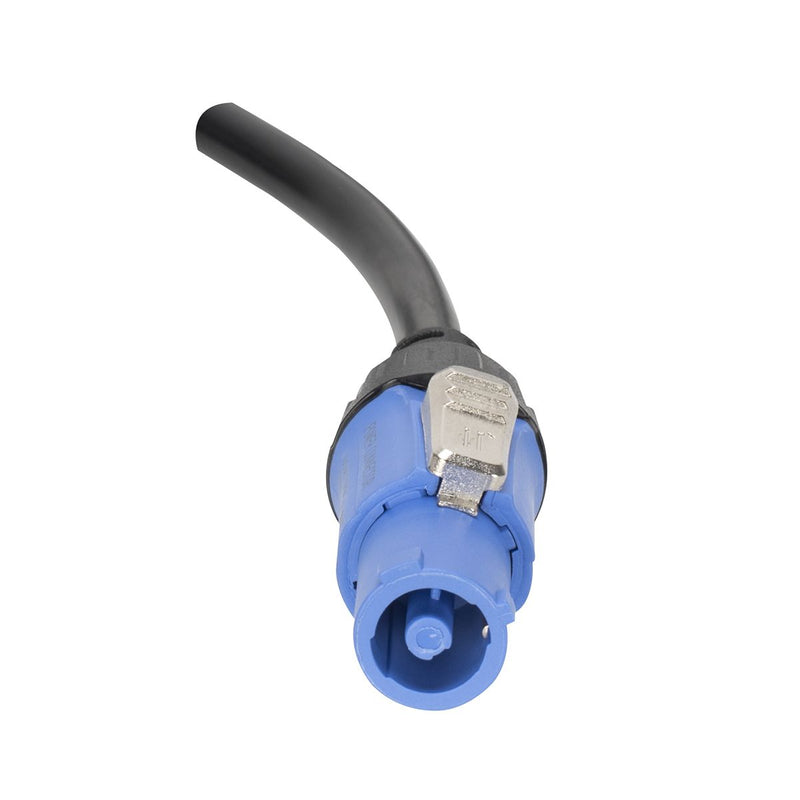

Moulded Locking IP20 fixture side connector to 120V, IP20 male Edison plug.

Features:
  • Contacts: 2+PE
  • Rated Current: 15A
  • Rated Voltage: 250V AC
  • Contact Resistance: ≤5mΩ
  • Dielectric Strength: 4000V DC
  • Insulation Resistance: >1000MΩ
  • Sevice Life: >1000 Mating Cycles
  • Shell: PA
  • Contacts: Cu Alloy
  • Contact Surface Ag
  • Ingress Protection: IP20
  • Flame-retardant Grade" UL94-V0
  • Temperature Range: -22F to 176F (-30C to +80C)
  • Standard: IEC61984
