ADJ Novastar MCTRL660PRO

ADJ - American DJSKU: MCT771

Price:
Sale price$1,249.99
 More payment options

Description

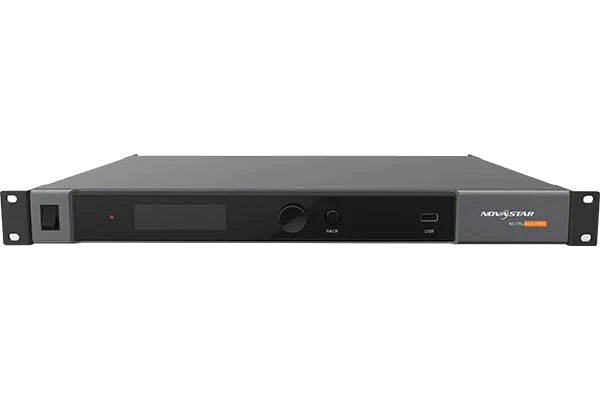

From Blizzard Lighting and developed by NovaStar, the MCTRL660 Pro is a professional, low-latency controller for ultra-large screen pixel displays. With independent gamma adjustment for RGB and auto LED screen configuration, this unit can handle a loading capacity of up to 1920×1200@60Hz. Customize resolutions to configure video pixel level brightness and chroma calibration with easy-use features such as web control, one-click backup, and quick recovery.



Features:

  • Cascading Supported
  • Independent gamma adjustment of RGB
  • A low latency of less than 1 frame (≤ 10 lines)
  • One-click backup and quick recovery
  • Image flip/mirroring stage effects
  • Auto LED screen configuration and Web control
  • Pixel level brightness and chroma calibration


Specifications:

  • Product Type: Video Controller
  • Input Resolution: 1920×1200 @60Hz
  • Capacity: 2.3 Million Pixels
  • Control Method: USB, ETHERNET, GENLOCK
  • Video Interface: HDMI/DVI/3G-SDI
  • Video Format: RGB444/YCbCr444/YCbCr422/YCbCr420
  • Audio Interface: HDMI/3.5mm audio connector

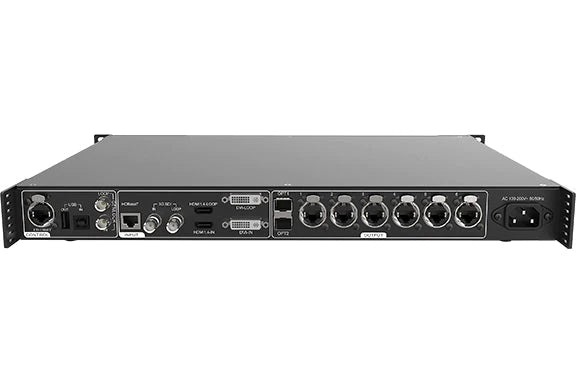

  • Output: 6× Gigabit Ethernet ports, 2× 10G optical ports
  • Bit Depth Of Video Resource: 8/10/12-bit
  • Input Resolution: 1920×1200 @60Hz
  • Dual working modes: sending card and fiber converter
  • Power & Current: 100-240VAC, 50/60Hz
  • Power consumption: 20W
  • Certification: CE, ROHS, FCC, UL, EAC
  • Operating temperature: -4°F to 140°F (-20°C to 60°C)
  • Working humidity: 0% to 90%
  • Dimensions: 19 x 13.8 x 2" (482.6 x 349 x 50.7mm)
  • Weight: 10.2 lbs. (4.6 kg)
