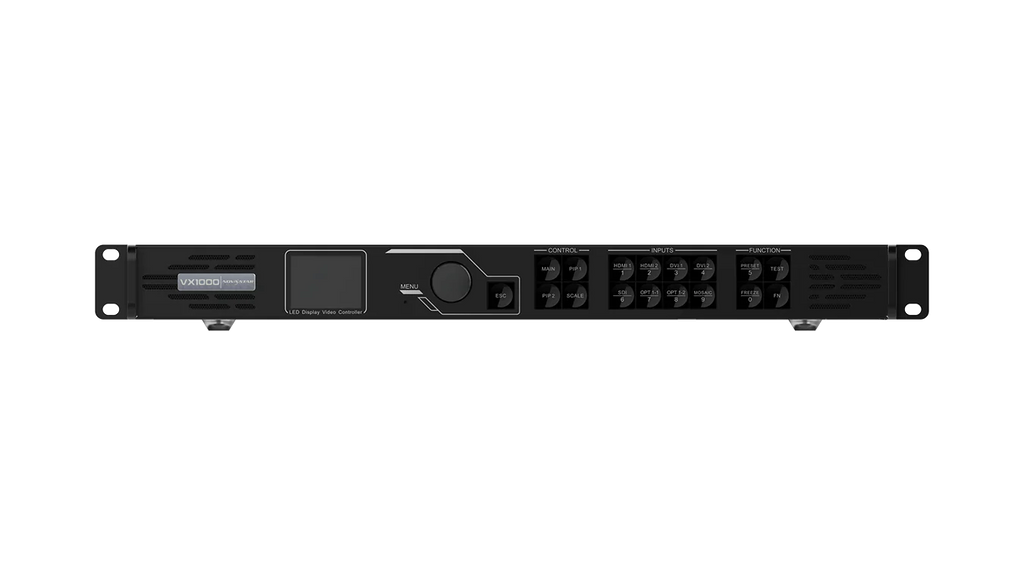

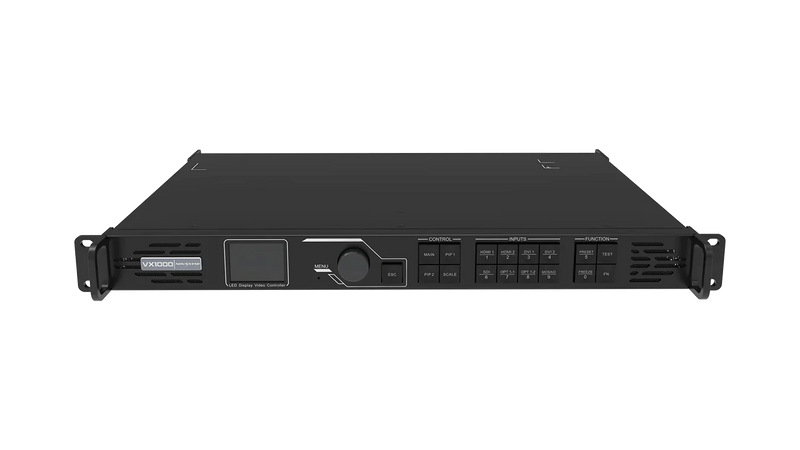

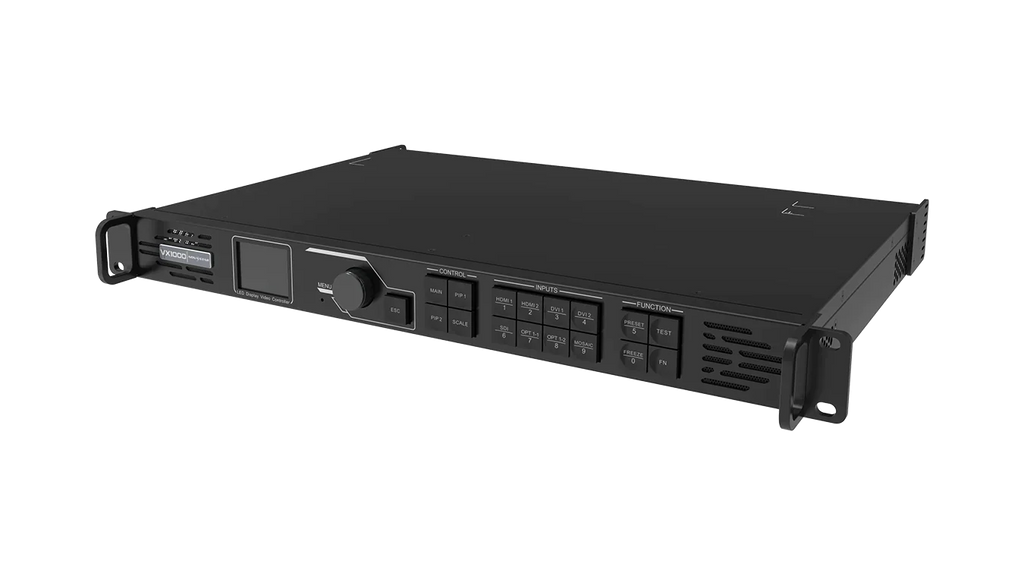

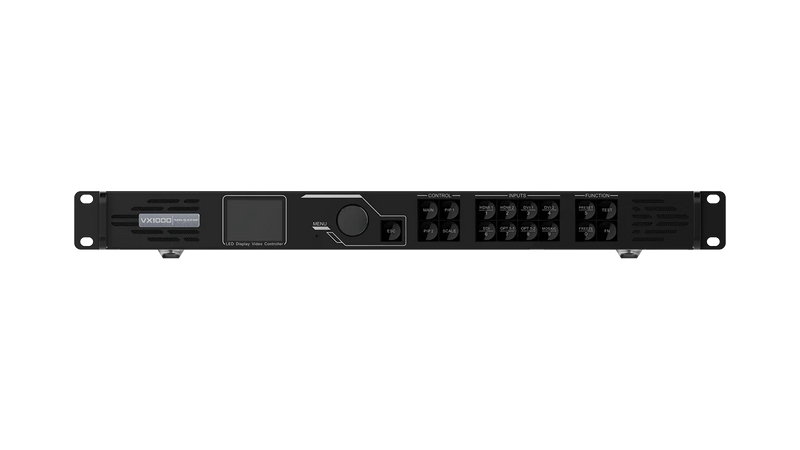

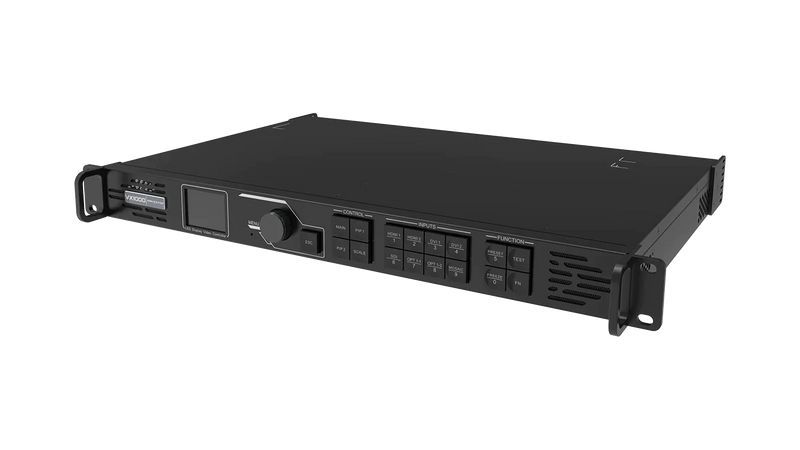

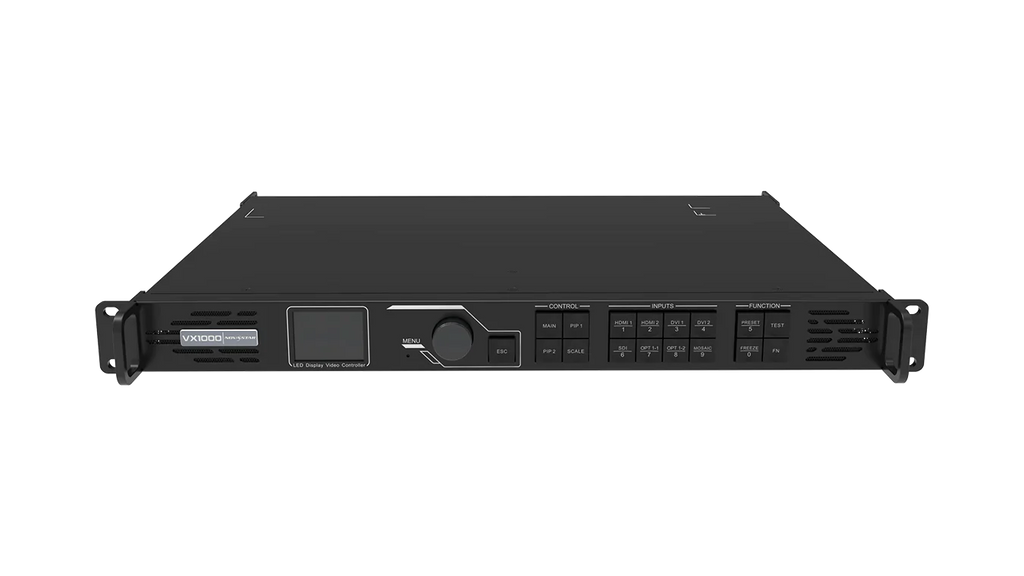

ADJ Novastar VX1000

• 2-in-1 video controller & processor
• Drives up to 6.5M pixels with one unit
• Perfect for ultra wide/high screens

All-in-One Controller
The VX1000 is NovaStar's new all-in-one controller that conveniently integrates video processing and video control all into one box. It features 10 Ethernet ports and it supports video controller, fiber converter, and bypass working modes. One VX1000 unit can drive up to 6.5 million pixels, with a maximum output width and height up to 10,240 pixels and 8,192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screen applications.

Highly Versatile
It's capable of receiving a variety of video signals and able to process high-resolution 4K×1K@60Hz images. It features stepless output scaling, low latency, 3D, pixel-level brightness, chroma calibration, and more to present you with an excellent image display experience. Thanks to its powerful video processing and sending capabilities, it can be used in applications such as medium and high-end rental, stage control systems, and fine-pitch LED screens for project use.

Specifications:

• Loading capacity: 6.5m pixels
• Layers: 3 x 4Kx1K@60Hz
• Mosaic input source supported
• Audio input and output
• 3D functions
• Low latency
• Output synchronization

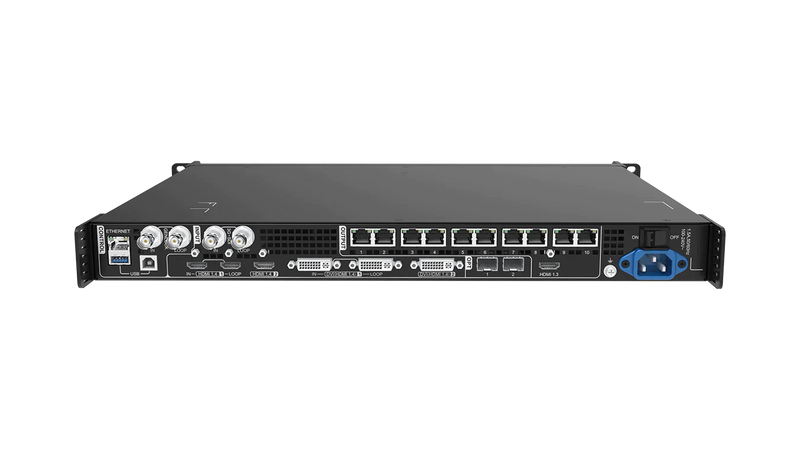

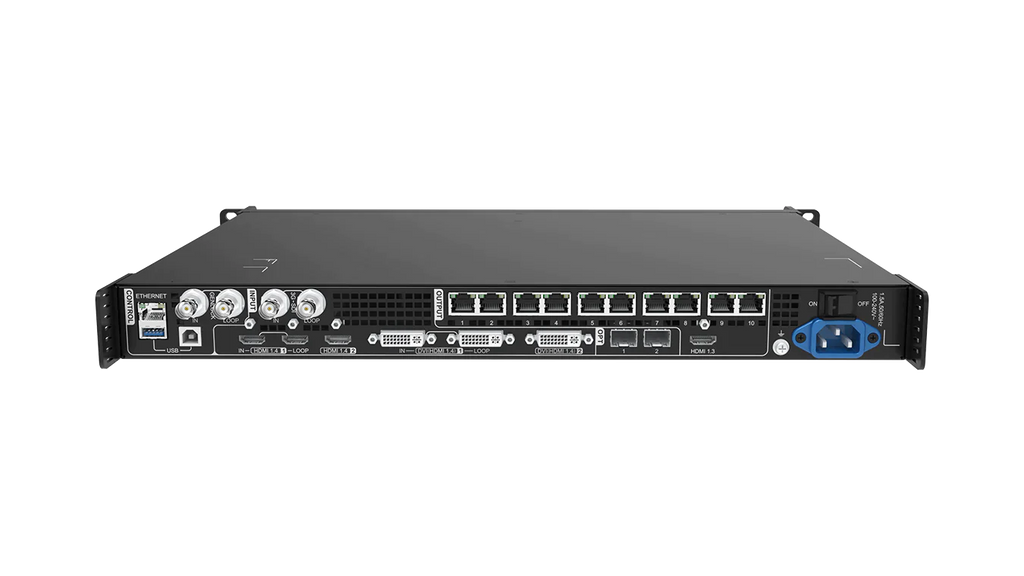

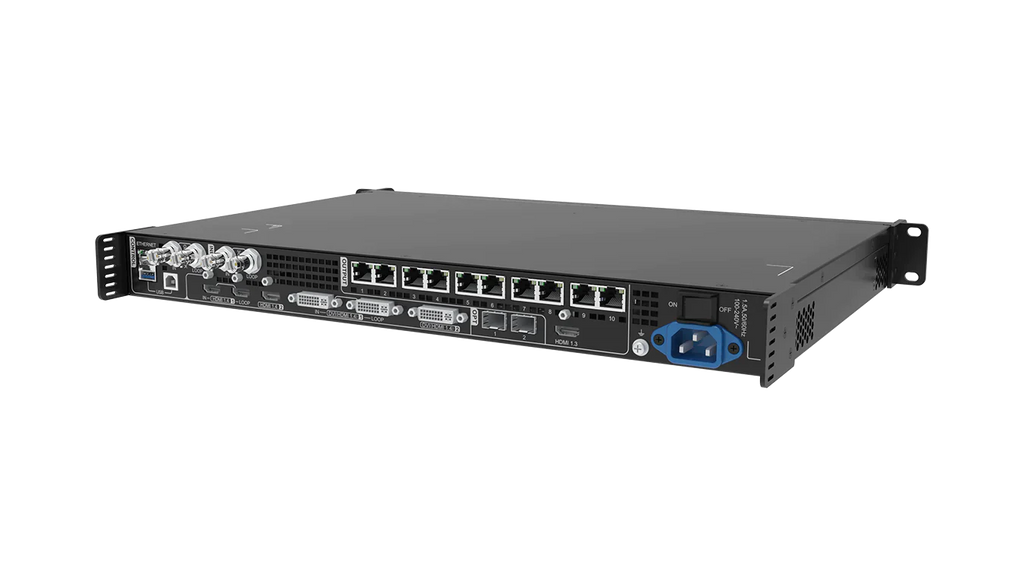

Connectors:

• 2x HDMI 1.4 + LOOP In
• 2x DVI (HDMI 4.1) + LOOP In
• 1x 3G-SDI + LOOP In
• 10x Gigabit Ethernet outputs
• 2x 10G OPT ports
• 1x HDMI 1.3 (monitor)
• 1x RJ45 Ethernet (PC)
• 1x USB Type A (PC)
• 1x USB Type B (cascading)
• 1x Genlock In + LOOP

Control:

• LCD menu display
• Intuitive display interface
• PC: Ethernet, USB (A/B), Genlock IN + LOOP

Power:

• 100-240VAC, 50-60 Hz
• Power consumption: 28W, 1.5A

Dimensions and weight:

• 13.3" L x 19" W x 2" H
• 13.9 lbs
