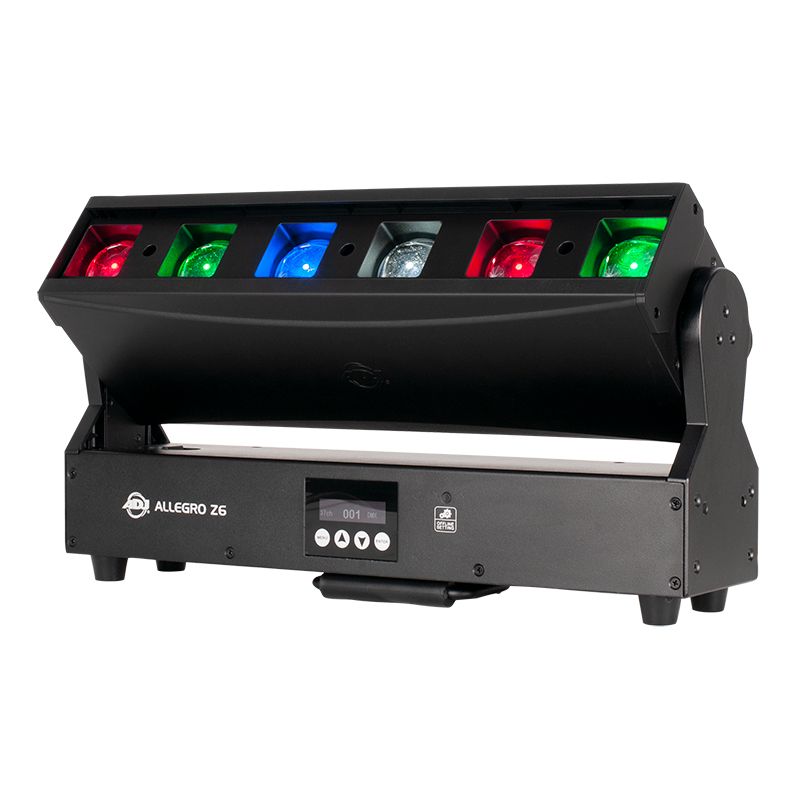

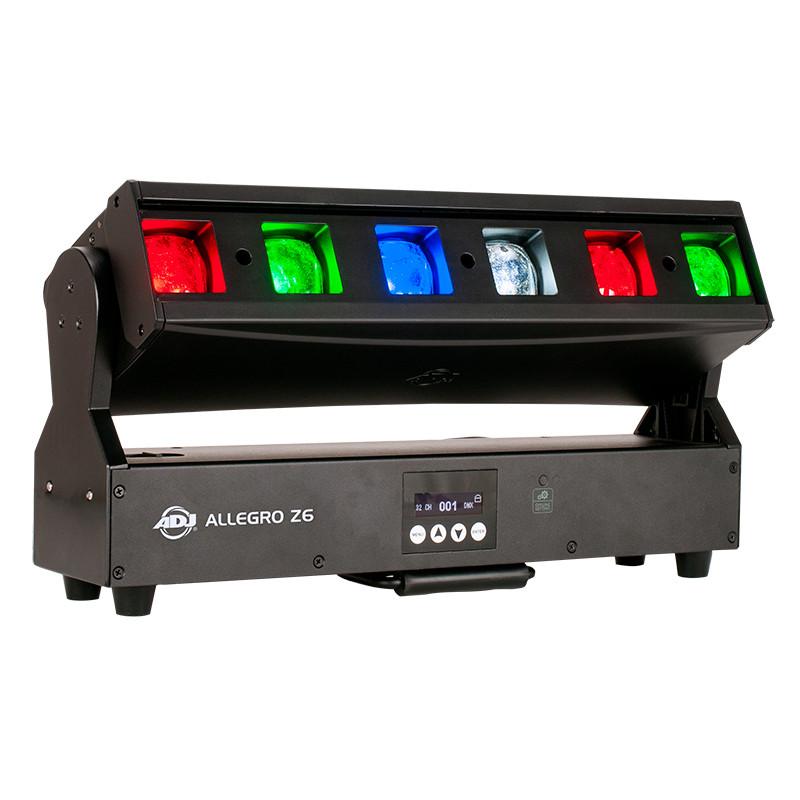

ADJ Allegro Z6

Quick moving linear fixture with 6 lenses with individual color control, motorized zoom (4 ~ 42-degrees), motorized tilt and strobe and pulse effects.

The Allegro Z6 has a 4-button function display, 5-pin DMX In/Out to link data and locking power connectors to daisy chain power. The fixture also has RJ45 In/Out connections for Art-Net and Kling-Net control. There is a convenient USB input for updating the fixture’s firmware.

Specifications

• LED: 6x 30W QUAD (4-In-1) RGBW LEDs (30,000 hr.)

• Motorized Zoom: 4° ~ 42°

• LUX: 47,000 @ 2M, Zoomed in to 4°; 1,900 @ 2M, Zoomed out to 42°

Features:

• Motorized Zoom

• Tilt Lock for stable transporting

• USB Input for Updating Fixture Firmware

• Folding carrying handle

• Rubber feet so fixture can be set on the ground

• All metal construction with black housing

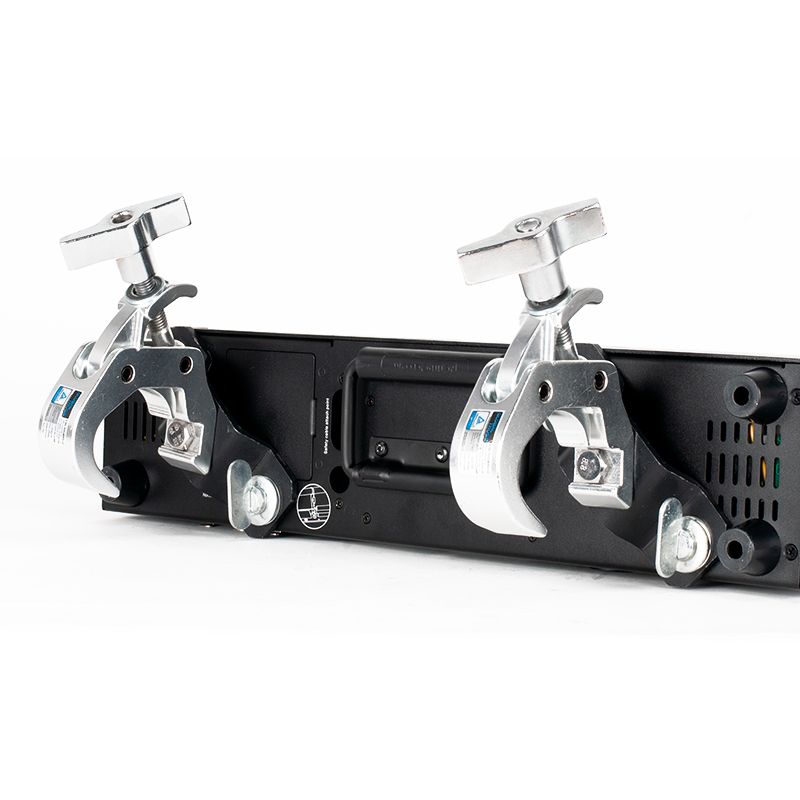

• Includes 2 Omega brackets for mounting to truss

• Flicker Free, 1200Hz PWM frequency

Construction:

• Display: OLED display with function buttons

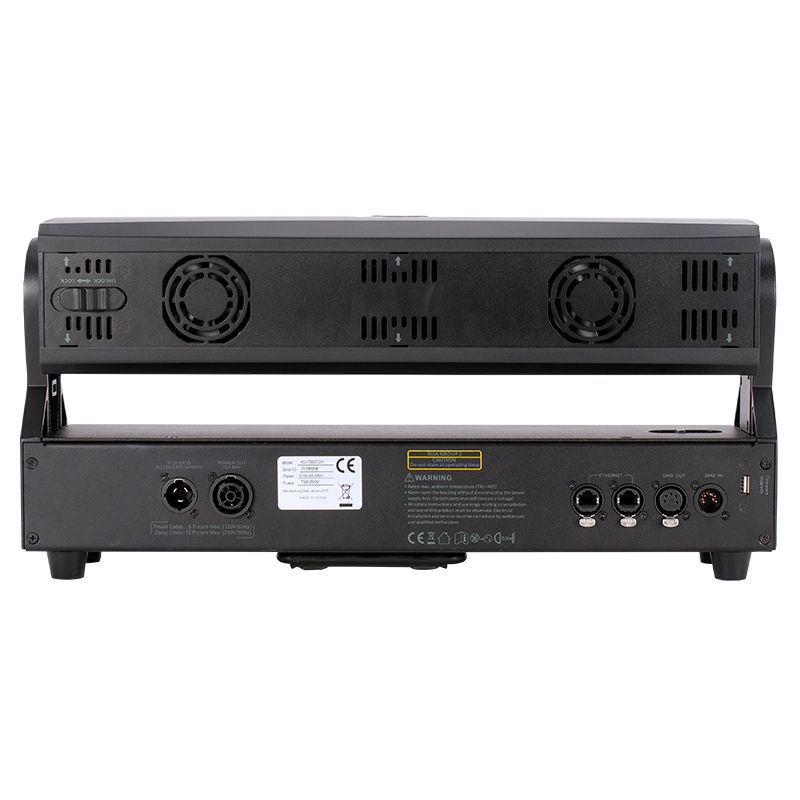

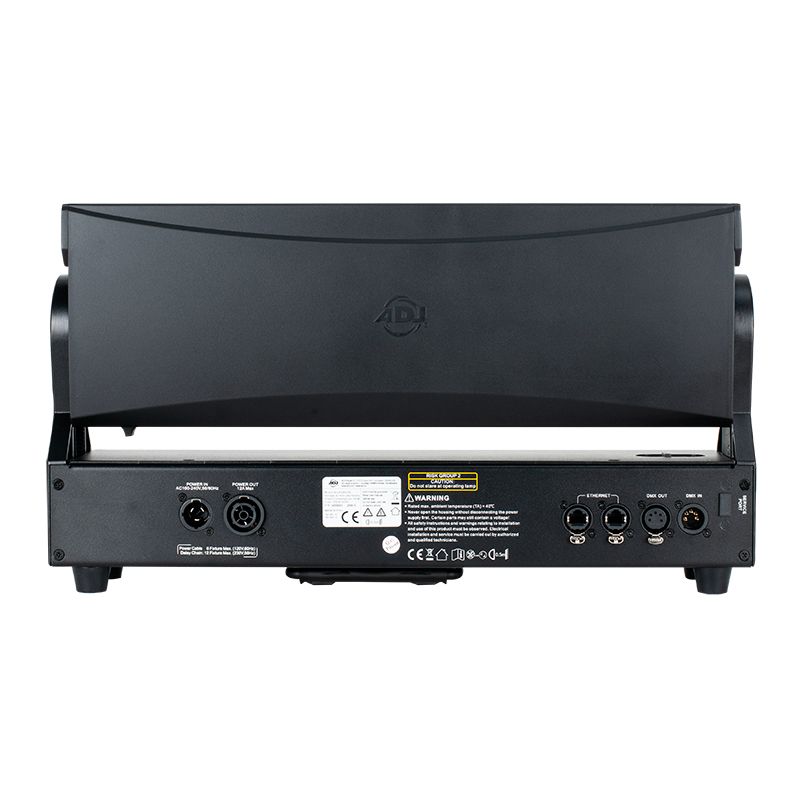

• 5-pin DMX In/Out for data linking

• RJ45 In/Out for Art-Net & Kling-Net control

• Locking power In/Out to daisy chain up to 6 fixtures (@ 120V), 11 fixtures (@ 230V)

Control:

• Control Modes: DMX512, RDM, Art-Net & Kling-Net

• Multiple DMX channel modes

• Tilt & Tilt Fine: 220°

• Strobe & Pulse Effects

• 6 individually controlled Pixels

• 0-100% Dimming + 16-bit Fine Dimming

• 6 Preset Dim Curve Modes plus Dim Speed control

• With Wired Digital Communication Network

Electrical:

• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)

• Power consumption: 240W max

Dimensions & Weight:

• Dimension (LxWxH): 19.6” x 4.5” x 11” / 500x113x278mm

• Weight: 21 lbs. / 9.5kg.

What's Included:

• Two Omega Brackets

• Locking power cord
