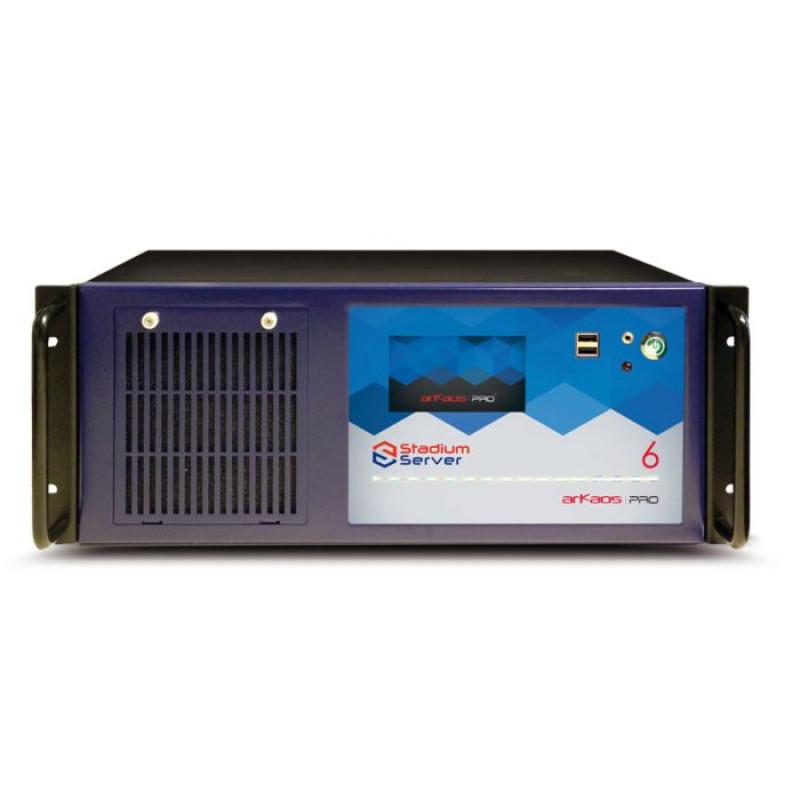

ADJ ArKaos Stadium Server

The ArKaos Stadium Server is the most powerful and versatile of the ArKaos Media Server Product Line designed for Professional Lighting Designers.

Features

Plug and Play Simplicity
Vast library of high quality digital media from world’s best visual content providers

Comes installed with MediaMaster Pro

Smart Design
Full-option media server

Runs full HD video on up to six EDID managed outputs

Two HD-SDI inputs and fast SSD drives as standard

Large LED status strip for quick visual feedback on the server’s operation state

Front display allows use of server without the need of additional screens

Fast recovery system by Acronis allows extremely simple reset from the boot menu

Pre-configured to work directly with all market-leading DMX lighting desks

Blistering Performance
Shock-resistant up to 2G

Easy access to fans and filters

Thoroughly tested in structural strength, and toleration of heat and vibration

Totally road-ready

Specifications

Specifications

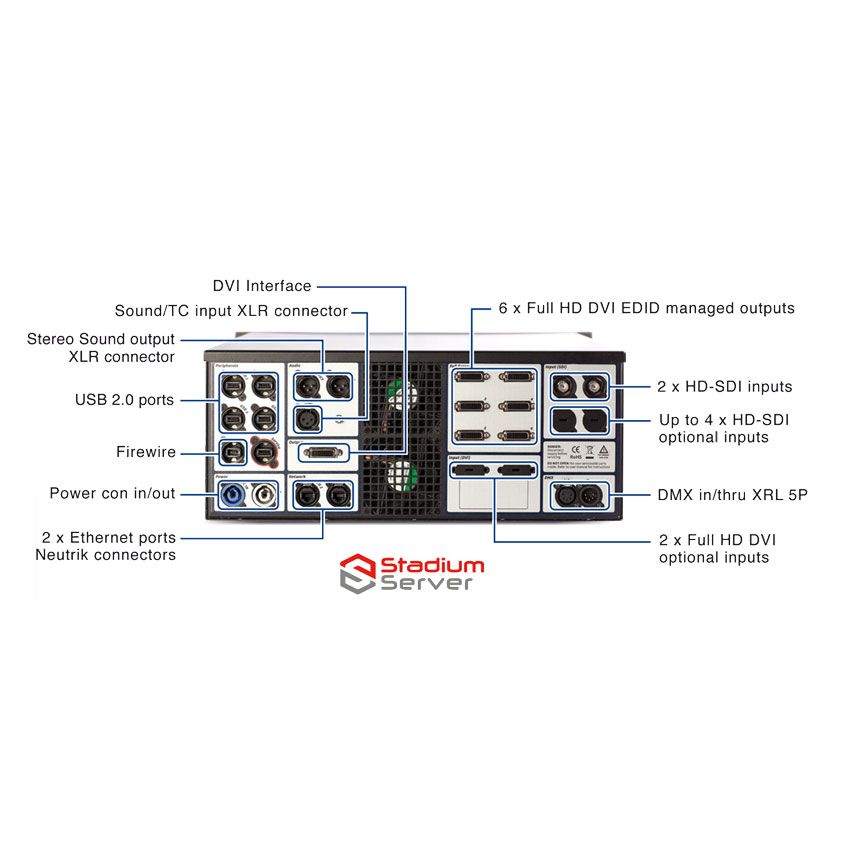

I/O

Interface Output: 1 (DVI)
Output: 6 (DVI)
EDID Management: Yes
Input (Standard): 2x HD-SDI
Input (Upgrade): Up to 4 x HD-SDI & 2 x DVI
Output Resolution: 6 x Full HD
DMX 5pin Connectors: Yes
Genlock: No
Framelock: No
USB: 2 x USB 3.0 + 4 x USB 2
Balanced Audio In/Out (XLR): Yes
Network: 2

STORAGE

System Drive: SSD 128 GB
Separate Drive: SSD 480 GB

SOFTWARE

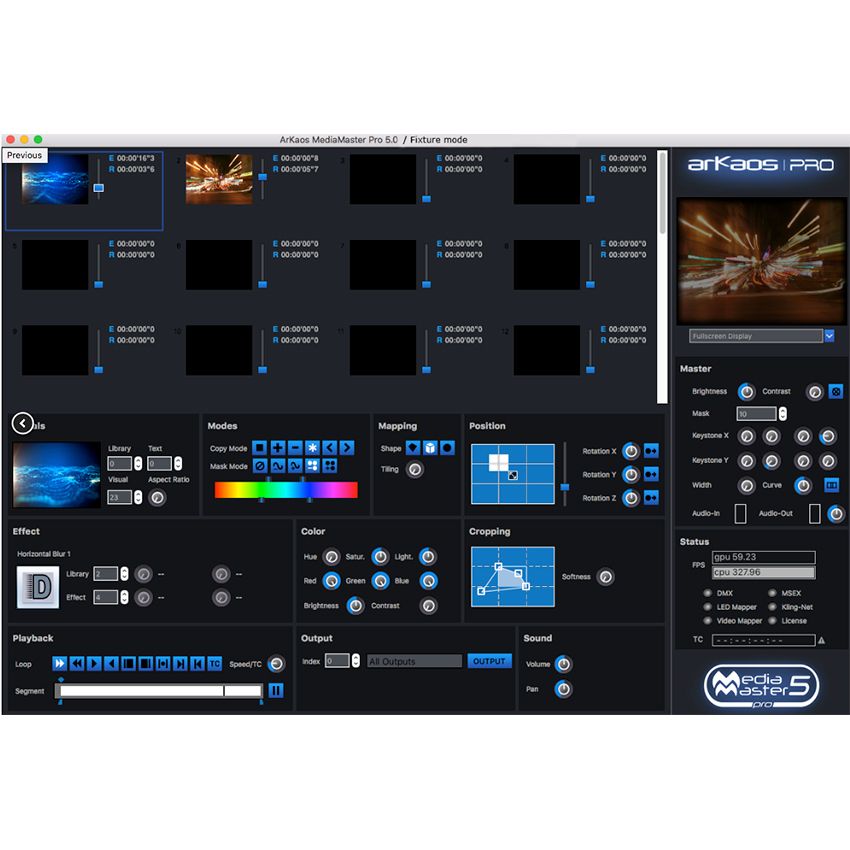

MediaMaster: Pro
CuePlayer (Theater mode): Yes

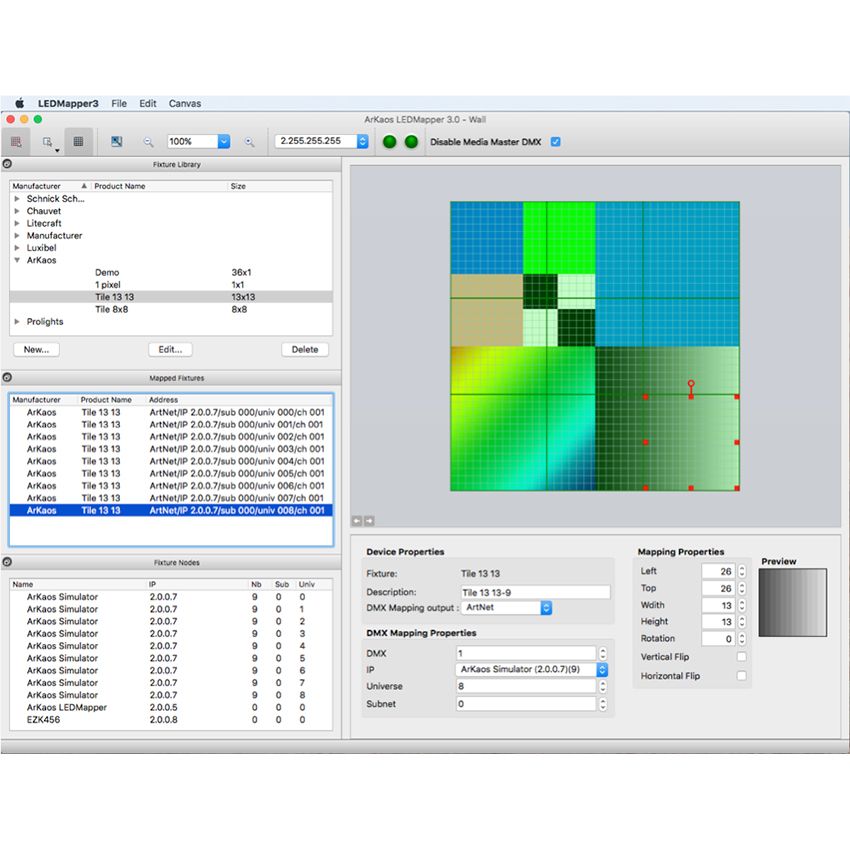

LED Mapper: Yes
Kling-Net Mapper: Yes

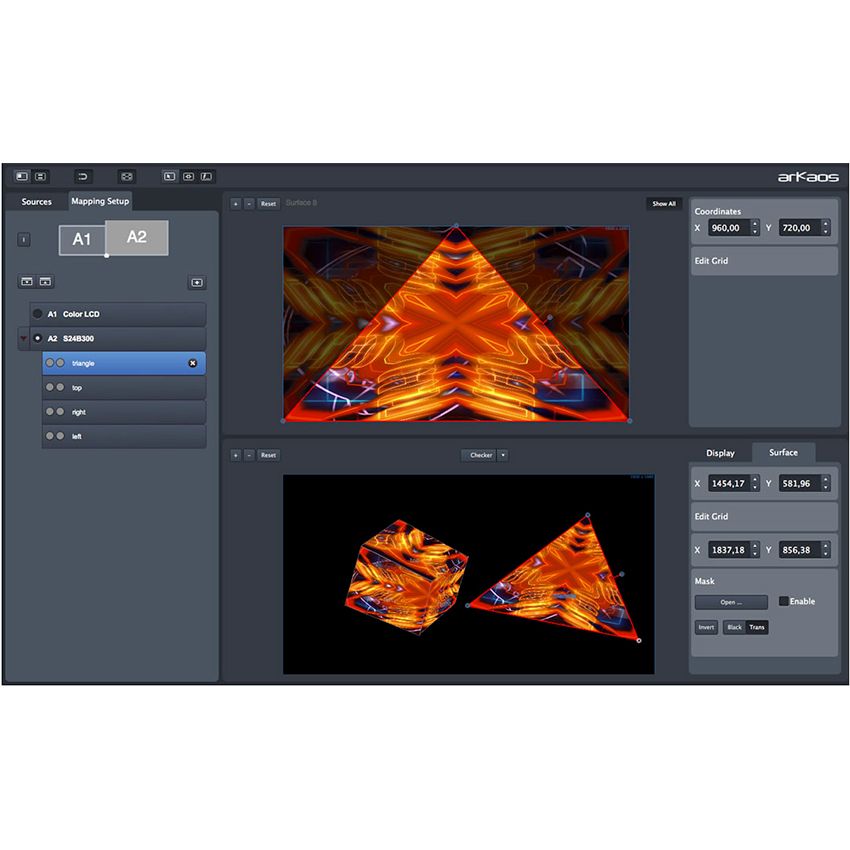

Video Mapper: Yes
Acronis Backup System: Yes
Layers Full HD: Up to 12
Layers HD: 12
Soft-Edge / Geometrical Correction; Yes

CONTROL

Control Display (Front Panel): Yes
LED Strip (Front Panel): Yes
DMX / MIDI / Keyboard: Yes
ArtNet / MA-Net: Yes

HARDWARE
Voltage: 107-240V Auto Switching
Professional Connectors: Yes

SIZE / WEIGHT

Height: 6.9” (176mm)
Length: 16.8” (426mm)
Depth: 20.0” (510mm)
Unit Weight 55.1 lbs. (25kg)

Specifications and documentation subject to change without notice.
