American Audio WM219

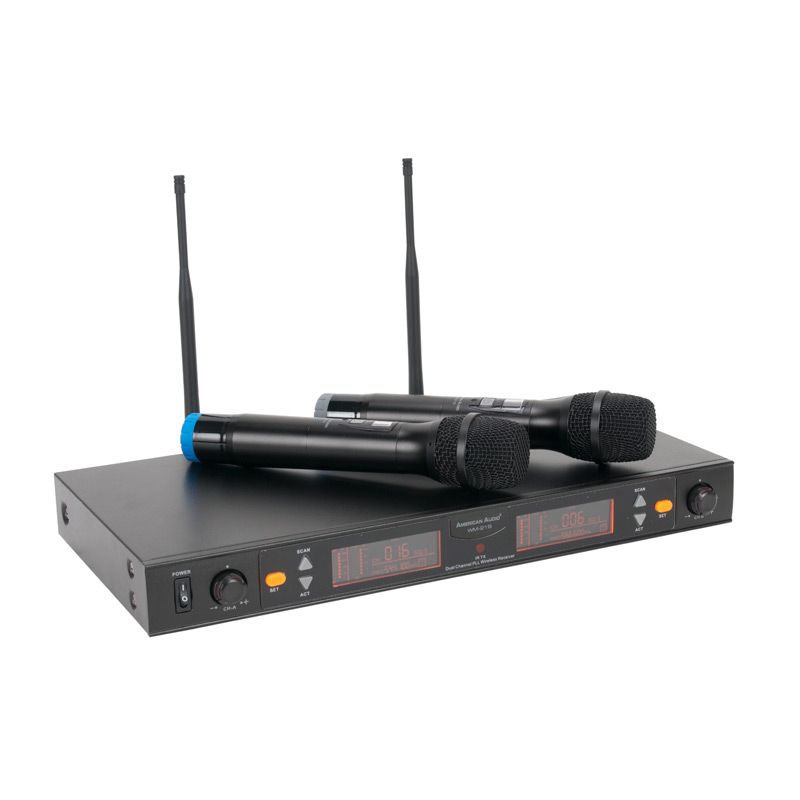

The American Audio WM219 is a 2-channel UHF wireless microphone system that includes two wireless microphones, two different color coded rings (to differentiate each microphone) and a wireless receiver with individual volume control and audio input for each microphone.

The WM219 is designed for use in PA, karaoke, mobile entertainers, schools and houses of worship. It has a wireless range of 300 feet / 90M (line of site) and each microphone has 6-10 hour battery life.

• UHF Dual Receiver Handheld Wireless Mic system

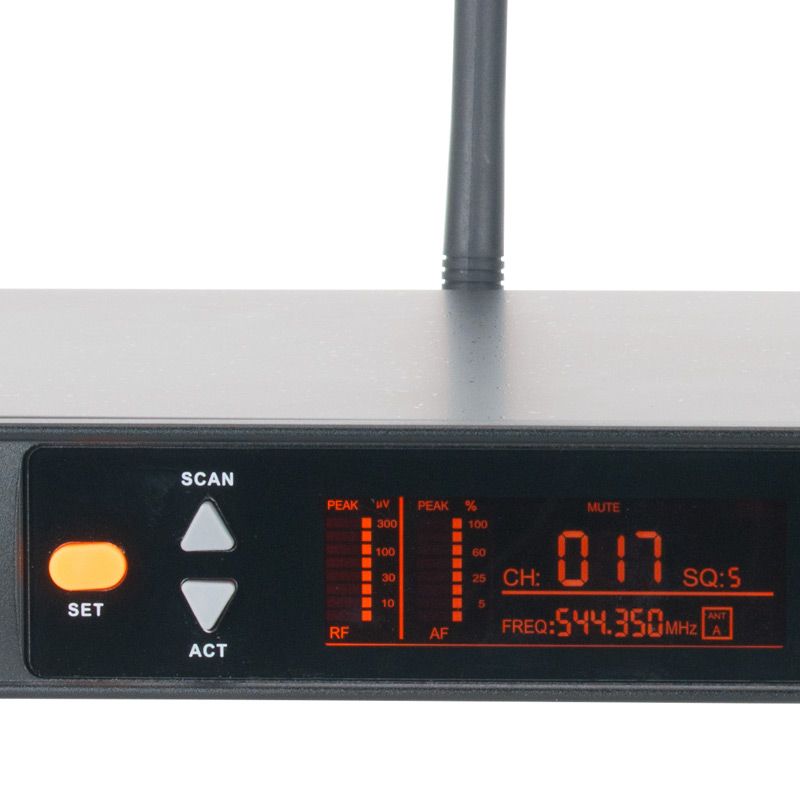

• Dual Easyview displays

• 100 Channels per receiver

• FSS Smart Scan searches for the best open frequencies

• 2 detachable UHF antennas. Front or rear mount (includes BNC antenna cables)

• 19” Rackmount receiver

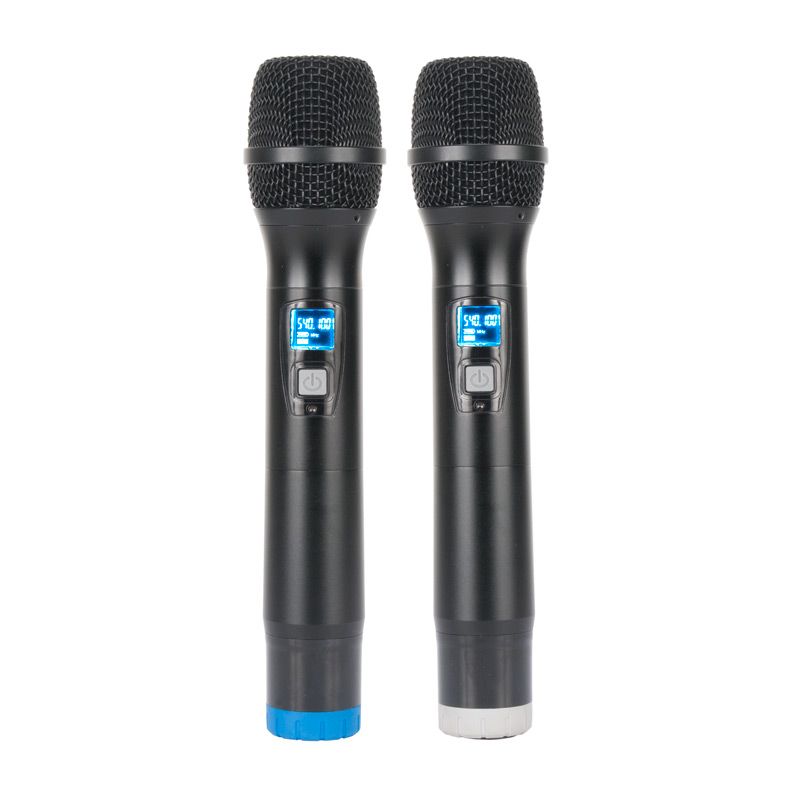

• 2 handheld transmitters with “aQuevoice” capsules

FEATURES:

• Individual volume controls on each channel

• On/Off power switch

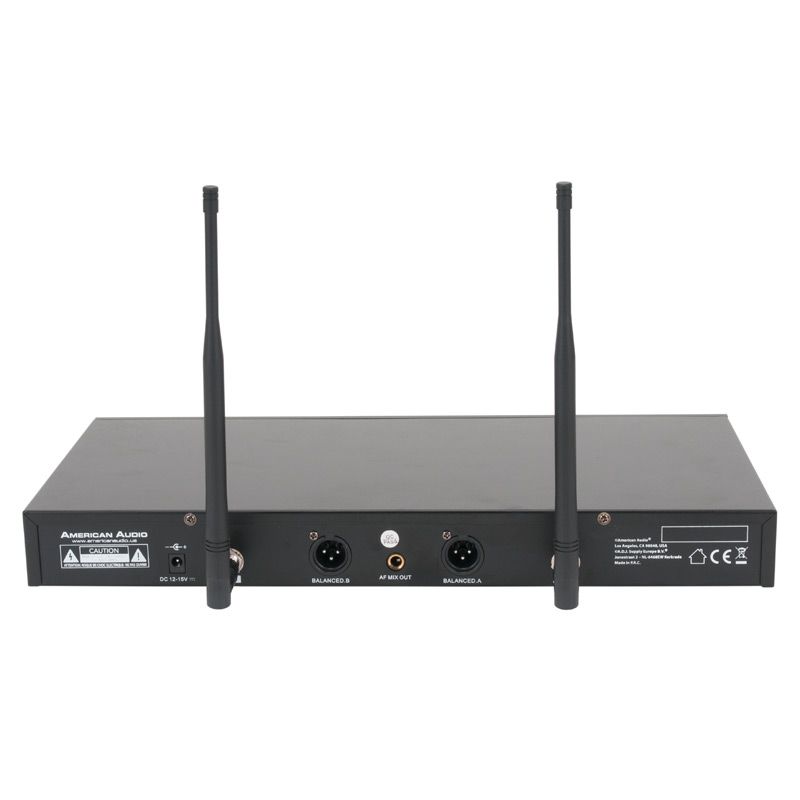

• 2 Individual 3-pin XLR balanced microphone outputs

   + One 1/4-inch mixed output

• 2 removable antennas and extension cables for

   front mounting

• Rugged 1RU Metal Receiver Chassis

• Quartz Controlled Fixed Frequency

WHAT’S INSIDE:

• 2x Hand Held Wireless Microphones (AA batteries

   not included)

• 2x Microphone Colored Rings

• 1x 2-Channel UHF Wireless Receiver

• 2x Detachable UHF Antennas

• 1x Power Cable

• 2x Rack Ears to mount in 19-inch rack mount

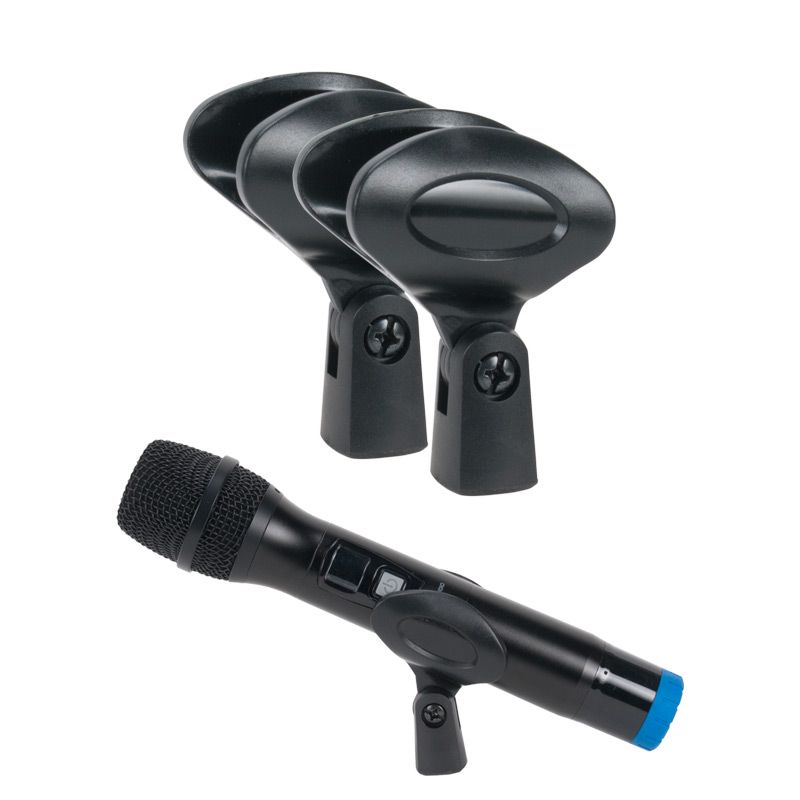

• 2x Microphone clips

PERFORMANCE:

• Wireless Range: 300 ft. (90M) line of site*

• Battery life with full charge: 6-10 hours

• Frequency Range: UHF 540-590MHz

• Dynamic Range: >98dB

• Total Harmonic Distortion: <1%

• Frequency Response: 50HZ ~ 14KHz 3dB

• Signal to Noise Ratio: >85dB

• Audio Output Level: 0-300mV (Balanced: 0-2V)

• Transmitting Power: +10sBM

*Actual wireless range will depend on RF signal absorption

and interference

DIMENSIONS / WEIGHT:

• Receiver Dimensions (LxWxH): 16.5”x9”x1.75” / 420x230x45mm

• Receiver Weight: 1.5 lbs. / .68kg.
