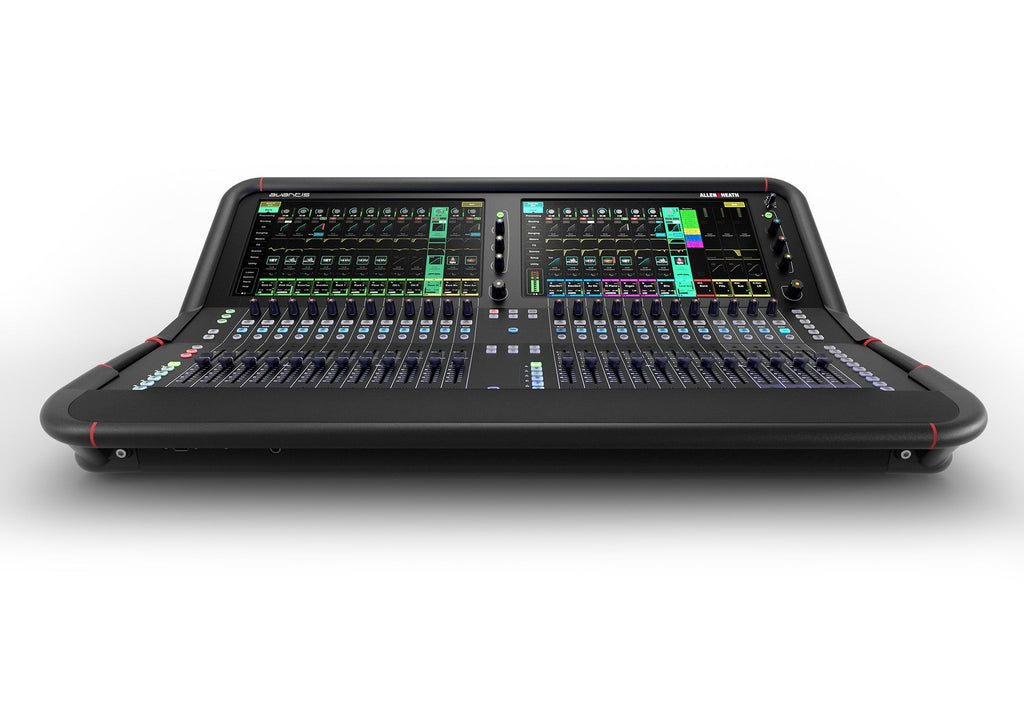

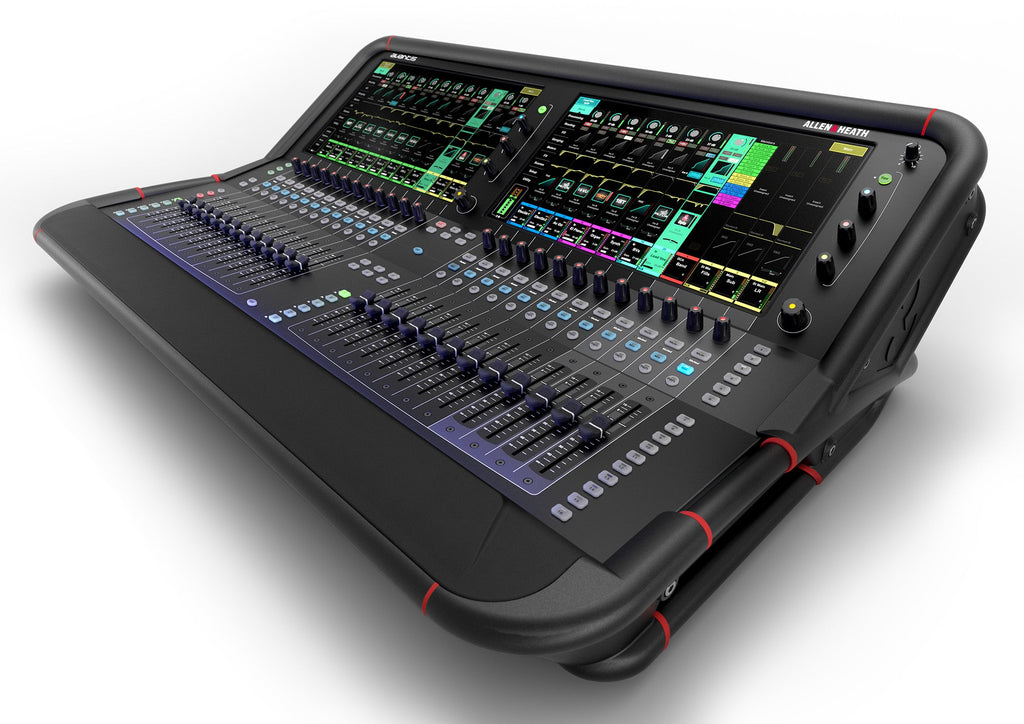

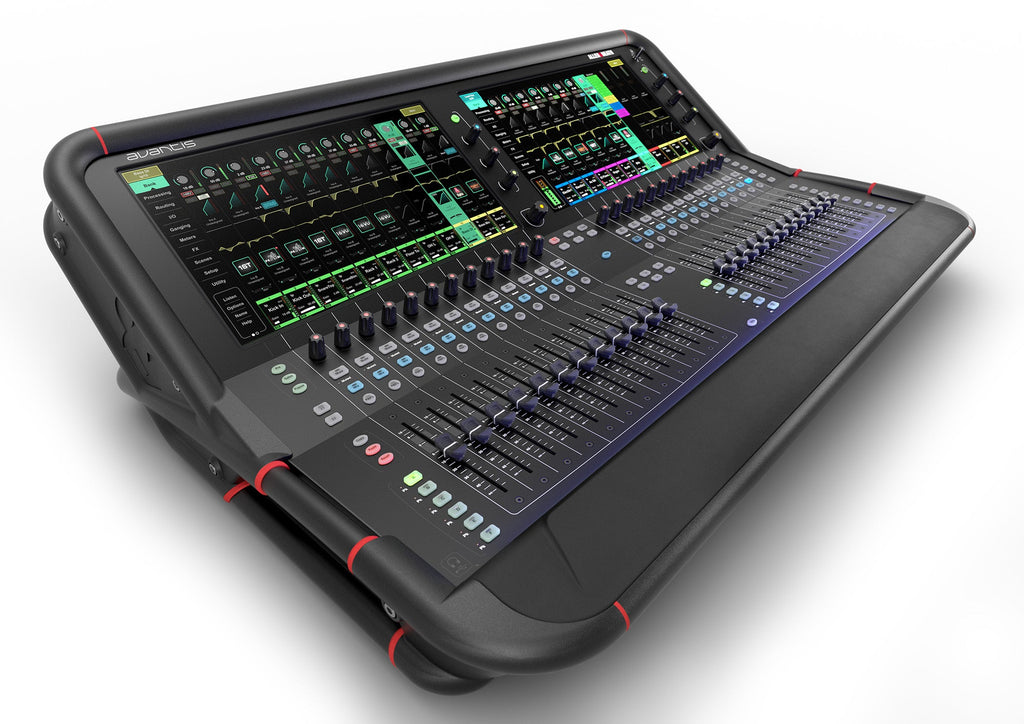

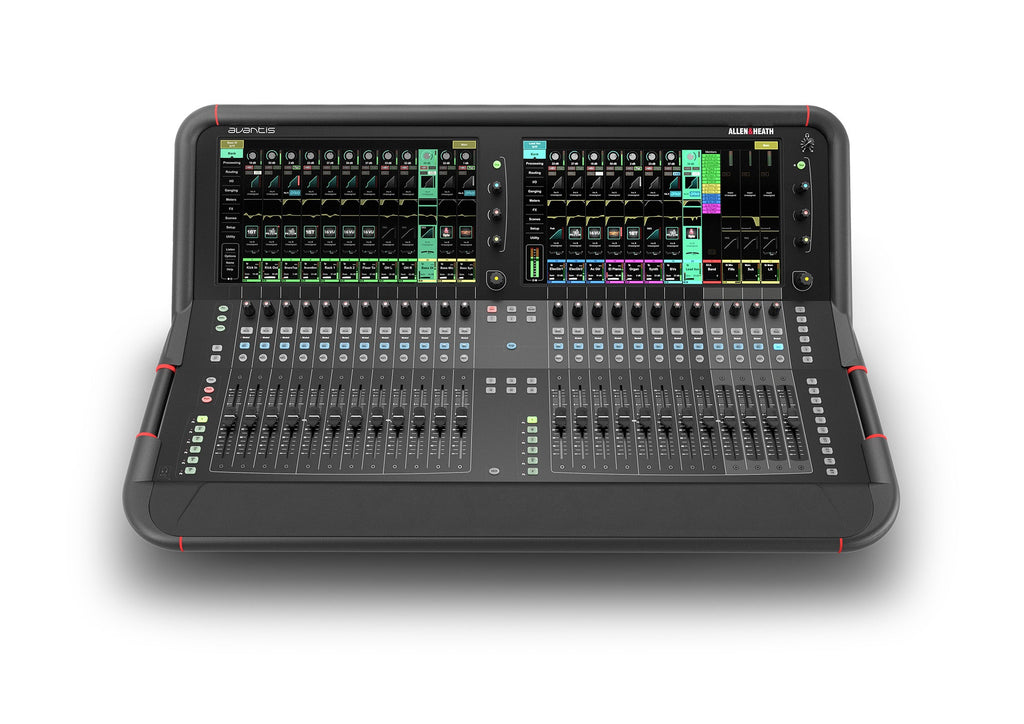

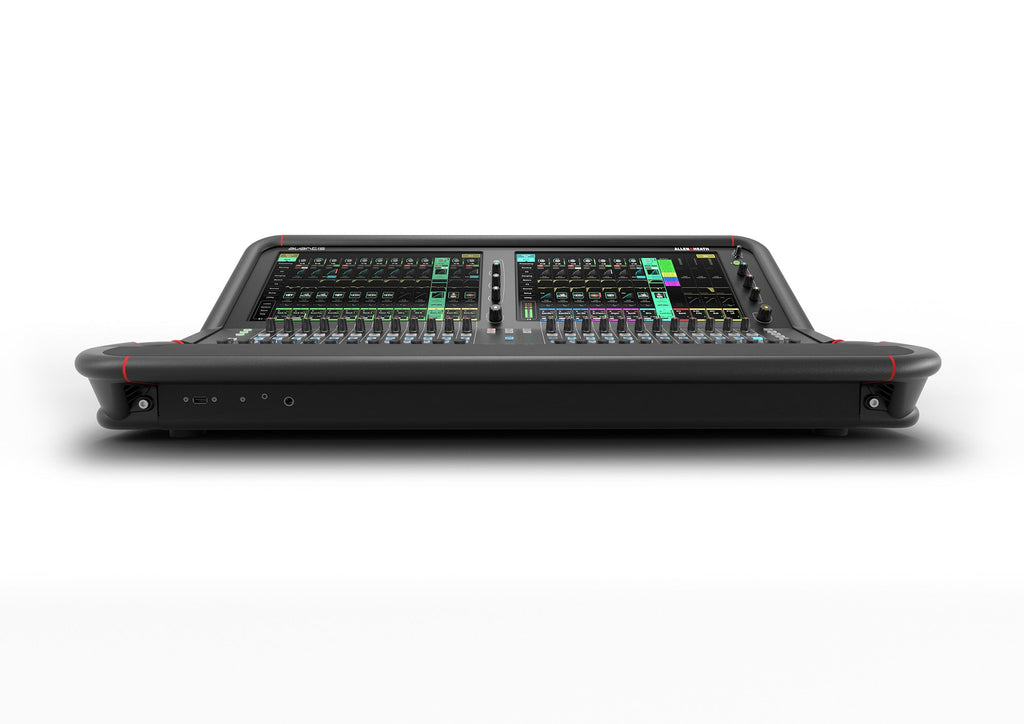

Allen & Heath Avantis

Avantis puts next-generation technology in a stand alone 64 channel/42 configurable bus console with dual Full HD touchscreens, a super-flexible workflow with Continuity UI, extensive I/O options, add-on processing from the dLive mixing system, and a rugged full metal chassis.

• 96kHz FPGA processing
• 64 Input Channels
• 24 Faders / 6 Layers
• 42 Mix busses
• Dual 15.6” Full HD capacitive touchscreen Digital Mixer
• DEEP Processing ready (AH-dPack)

Features:

• 96kHz 64 channel / 42 bus digital mixer
• XCVI FPGA core with ultra-low latency (0.7ms)
• Fully configurable mix bus architecture

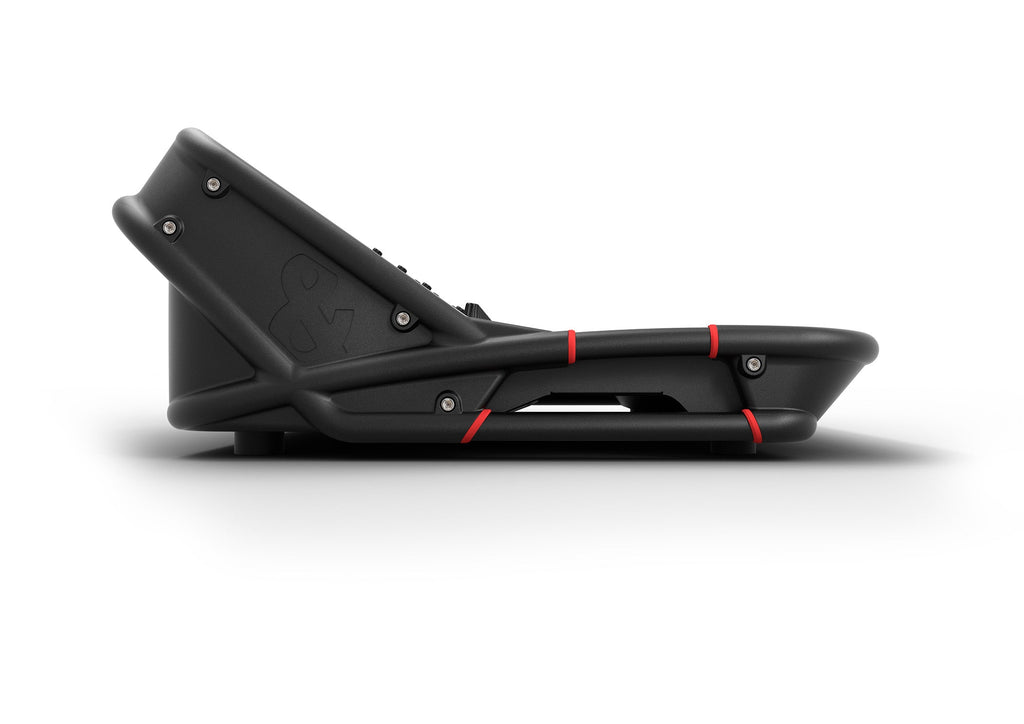

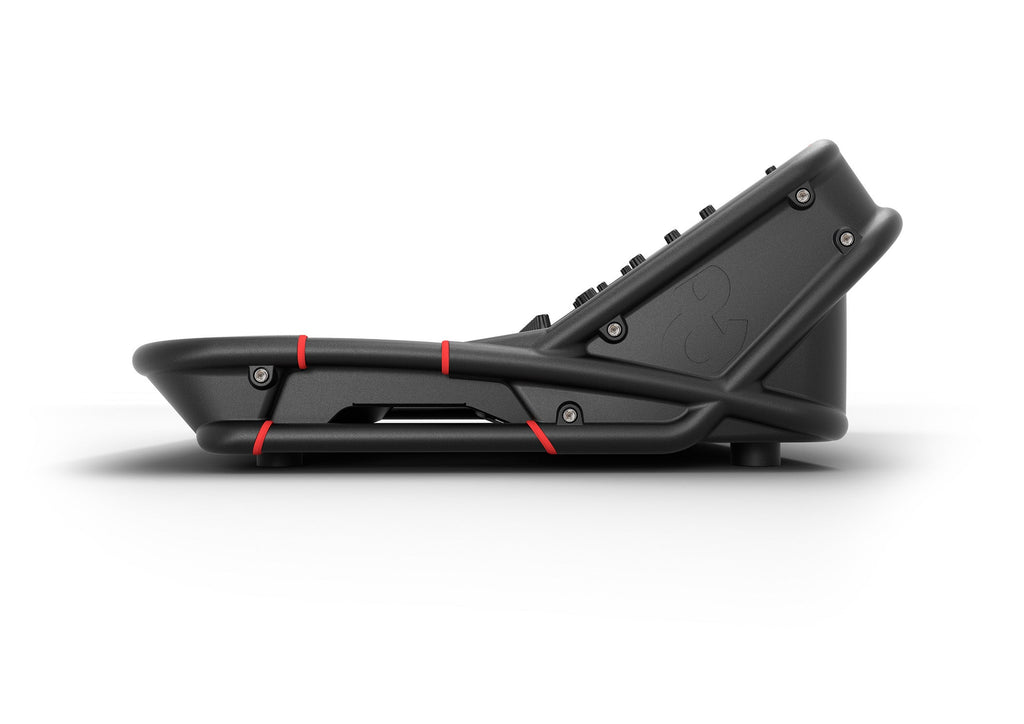

• Super-tough, full metal chassis

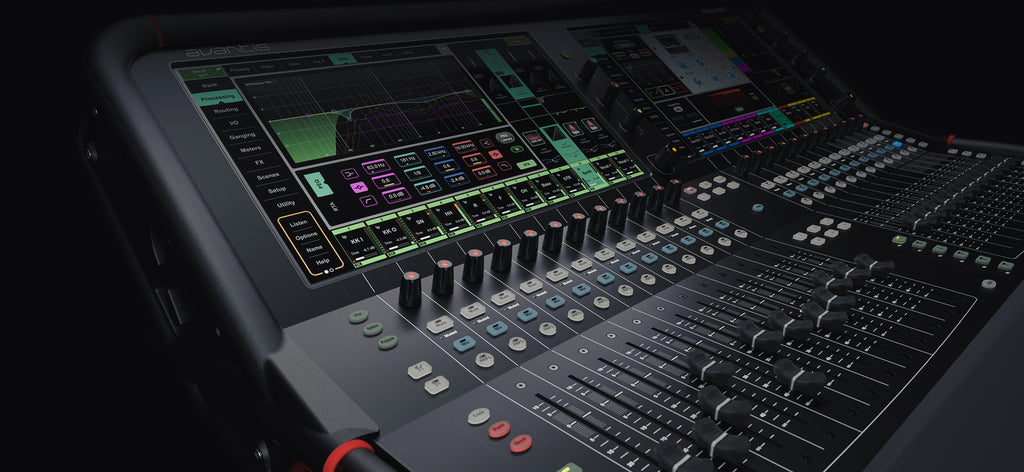

• Continuity UI seamlessly connects physical and touchscreen controls for the fastest, most intuitive workflows
• dPack option adds dLive processing, including 16 Dyn8 engines, plus per-channel
• zero-latency DEEP Compressors and Dual-Stage Valve preamp
• 12 RackExtra FX slots with dedicated stereo returns
• 16 DCAs
• Dual 15.6” Full HD capacitive touchscreens with gesture control
• AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
• Fully assignable layout
• 144 fader strips (24 faders, 6 layers) with optional dedicated master section
• SLink port for connection to Remote I/O Expanders and the ME Personal Mixing System

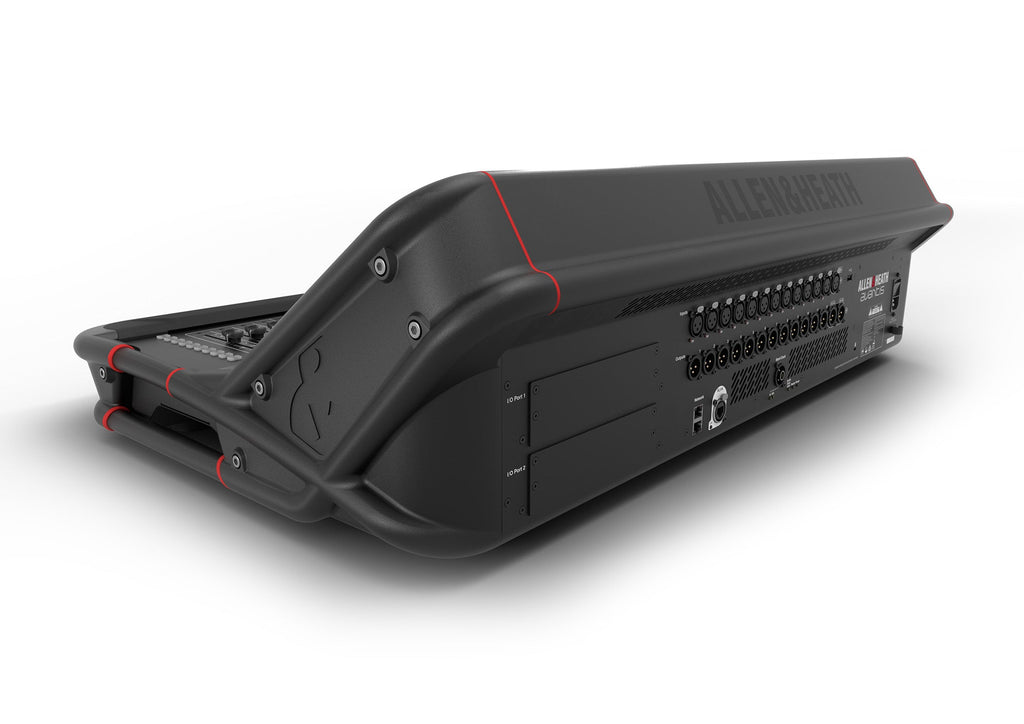

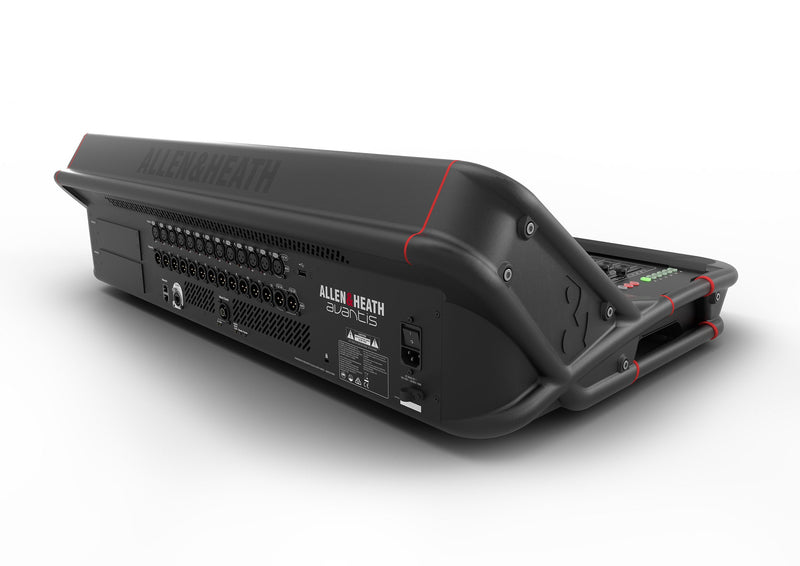

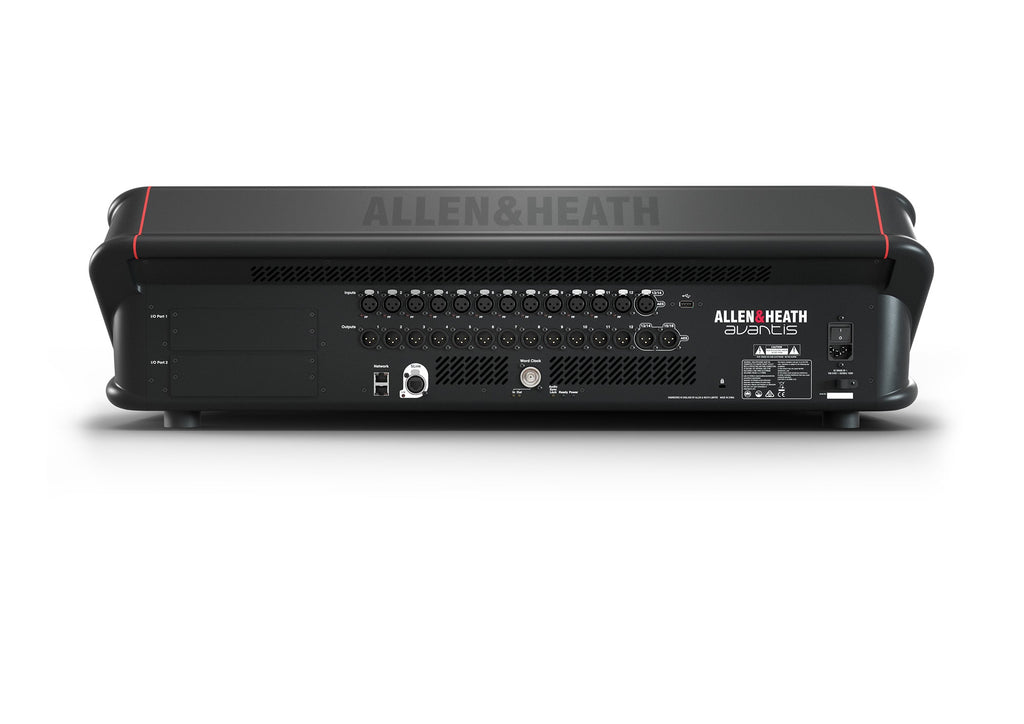

• 12 analogue XLR Inputs / 12 analogue XLR Outputs
• 1 Stereo AES In / 2 Stereo AES Out
• 2 I/O Ports, both capable of 128x128 operation at 96kHz – for optional cards inc. Dante, MADI and gigaACE
• User configurable rotary controls
• 24 assignable SoftKeys
• Comprehensive metering with multi-point peak detection
• USB stereo recording and playback
• BNC Word Clock
