Description

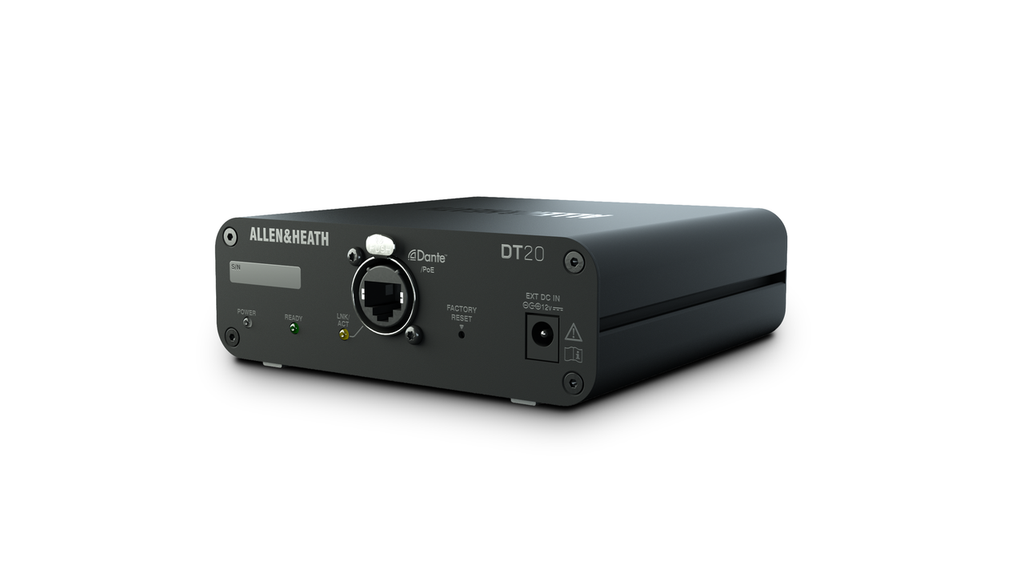

The compact and portable DT20 converts two analogue inputs, via combo XLR-Jack, to two channels of Dante audio, enabling hassle-free connection of analogue sources to a Dante network for install and live applications.
DT20 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs wherever you need to get analogue audio into a Dante network.
Ideal for both fixed installation and AV hire / live applications, DT20 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as in third party Dante systems.
Thanks to its compact format, DT20 can be easily mounted under a table, podium etc. for local mic connection – or rack-mounted wherever required – on stage, or at FoH.
The unit can be PoE powered or powered via a DC 12V supply. Two versions are available: the standard DT20 with power supply and rubber feet, or the DT20-M which includes surface mounting ears (and no power supply).
Features:
Specifications:
DT20 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs wherever you need to get analogue audio into a Dante network.
Ideal for both fixed installation and AV hire / live applications, DT20 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as in third party Dante systems.
Thanks to its compact format, DT20 can be easily mounted under a table, podium etc. for local mic connection – or rack-mounted wherever required – on stage, or at FoH.
The unit can be PoE powered or powered via a DC 12V supply. Two versions are available: the standard DT20 with power supply and rubber feet, or the DT20-M which includes surface mounting ears (and no power supply).
Features:
- Dante input interface, 48kHz/96kHz
- 2x combi mic/line inputs
- Local gain control
- 48V phantom power with LED indicator
- PoE powered or DC 12V
- EtherCon connector
- Rugged aluminium box
- Optional ears for surface mounting (included in DT20-M version)
- Optional rack mounting kit DT-RK19
Specifications:
- Mic/Line Inputs Mic Inputs Balanced XLR, +48V phantom
- Analogue Gain 0 to +55dB
- Line Inputs Balanced TRS, -20dB PAD
- Maximum Input Level +30dBu (TRS in)
- Input Impedance >4kΩ (XLR), >10kΩ (TRS)
- Dante 48kHz/96kHz
- DC Input +12V DC 1.25A
- Power Consumption 10W max
- Operating Temperature Range 0°C to 40°C (32°F to 104°F)
- PoE Requirements 802.3af 15W
