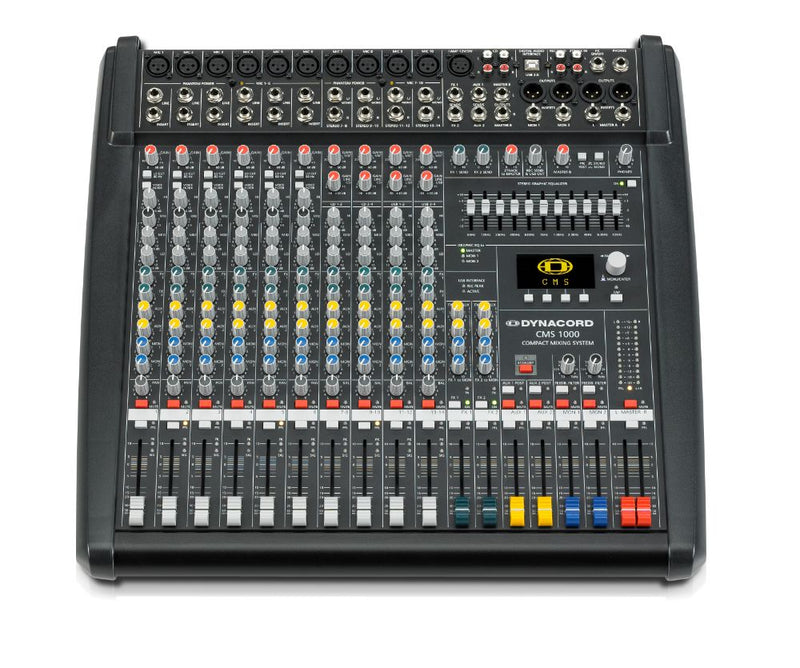

| LINE/CD/USB GAIN (Stereo) |
-10 to +20 dB |
| THD, at 1 kHz, MBW = 80 kHz |
| MIC input to Master A L/R outputs, +16 dBu, typical |
< 0.005% |
| Frequency Response, -3 dB, ref. 1 kHz, any input to any Mixer output |
15 Hz to 70 kHz |
| Crosstalk, 1 kHz |
| Fader & FX/AUX/MON-Send attenuation |
> 85 dB |
| Channel to Channel |
< -80 dB |
| CMRR, MIC input, 1 kHz |
> 80 dB |
| Input Sensitivity, all level controls in max. position MIC / LINE (Mono) / LINE (Stereo) / CD (Stereo) |
-74 dBu (155 µV) / -54 dBu (1.55 mV) / -34 dBu (15.5 mV) / -34 dBu (15.5 mV) |
| Maximum Level, mixing desk |
| MIC inputs |
+21 dBu |
| Mono Line inputs / Stereo Line inputs |
+41 dBu / +30 dBu |
| All other inputs |
+22 dBu |
| All other outputs |
+22 dBu |
| Input Impedances |
| MIC / Insert Return |
2 ? / > 3.3 ? |
| 2Track Return & CD In |
10 ? |
| All other inputs |
> 15 ? |
| Output Impedances |
| Phones |
47 ? |
| All other outputs |
75 ? |
| Equivalent Input Noise, MIC input, A-weighted, 150 ohms |
-130 dBu |
| Noise, Channel inputs to Master A L/R outputs, A-weighted |
| Master fader down |
-97 dBu |
| Master fader 0 dB, Channel fader down |
-91 dBu |
| Master fader 0 dB, Channel fader 0 dB, Channel gain unity |
-83 dBu |
| Equalization |
| LO Shelving |
±15 dB / 60 Hz |
| MID Peaking, mono inputs |
±15 dB / 100 Hz to 8 kHz |
| MID Peaking, stereo inputs |
±12 dB / 2.4 kHz |
| HI Shelving |
±15 dB / 12 kHz |
| Master EQ 11-band (63, 125, 250, 400, 630, 1k, 1.6k, 2.5k, 4k, 6.3k, 12kHz) |
±10 dB / Q = 1.5 to 2.5 |
| Power Consumption |
| without lamp / with lamp |
45 W / 50 W |
| Filter |
| LO-CUT, mono inputs |
f = 80 Hz, 18 dB/oct. |
| VOICE FILTER, mono inputs |
switchable |
| FEEDBACK FILTER, MON 1/2 |
70 Hz to 7 kHz, Notch, -9 dB |
| Effects |
| Type, effects presets |
Dual stereo 24/48-bit multi effects processors, 100 Factory + 20 User, Tap-Delay |
| Remote control |
Footswitch, MIDI |
| Display |
128 x 64 pixels, OLED |
| Digital Audio Interface |
| Channels |
4 In / 4 Out |
| AD/DA Conversion, Sampling Rate |
24-bit, 44.1 / 48 / 88.2 / 96 kHz |
| PC Interface |
USB2.0, Female Type B |
| MIDI Interface |
5-pin DIN connector, In / Out |
| Protection |
| Mixer Outputs (Relay controlled) |
MON 1, MON 2, MASTER A |
| Switching Mode Power Supply (µC controlled) |
Mains Over/Undervoltage, High Temperature |
| Phantom Power, switchable in groups |
48 V DC |
| Power Requirements (SMPS with auto range mains input) |
100 V to 240 V AC, 50 Hz to 60 Hz |
| Dimensions (W x H x D, without lid), mm |
510.5 x 155 x 498.5 Rack-mount: 483.0 x 135.0 x 443.7 |
|
