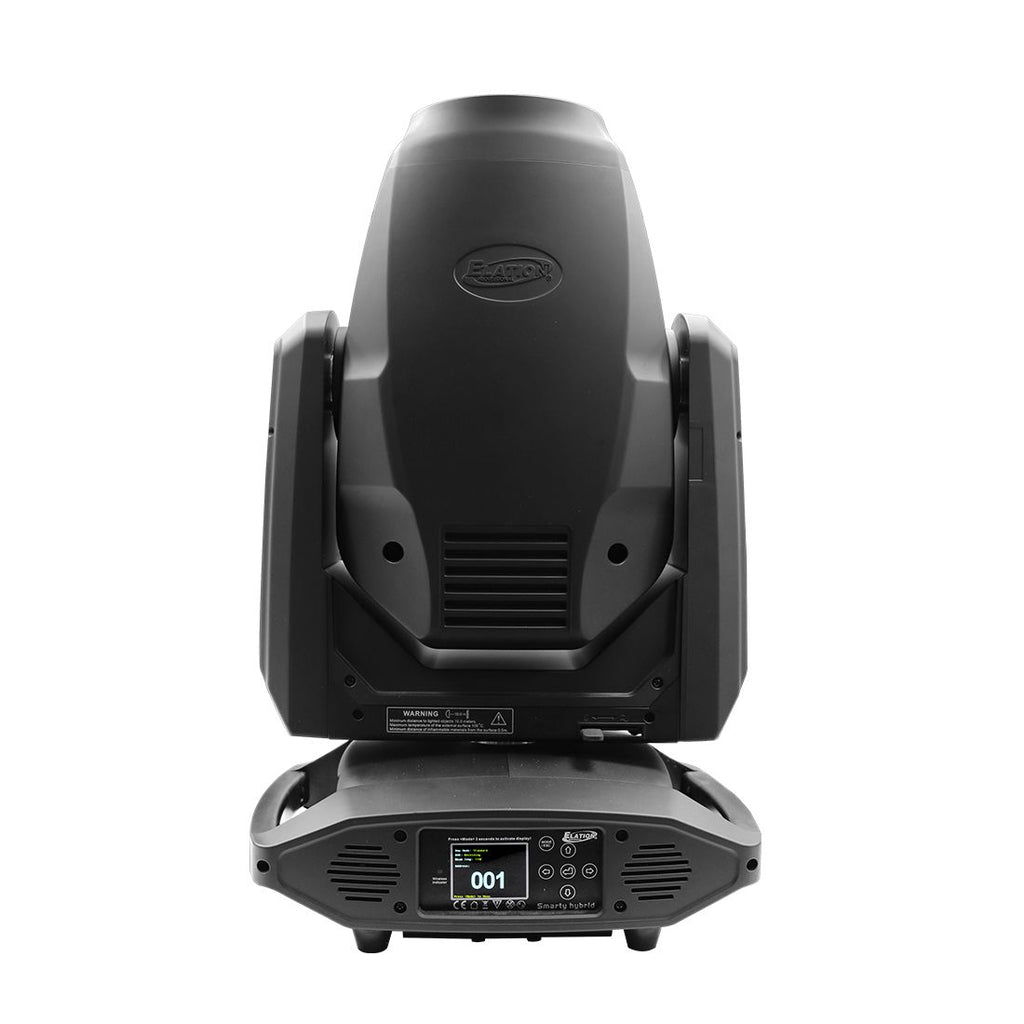

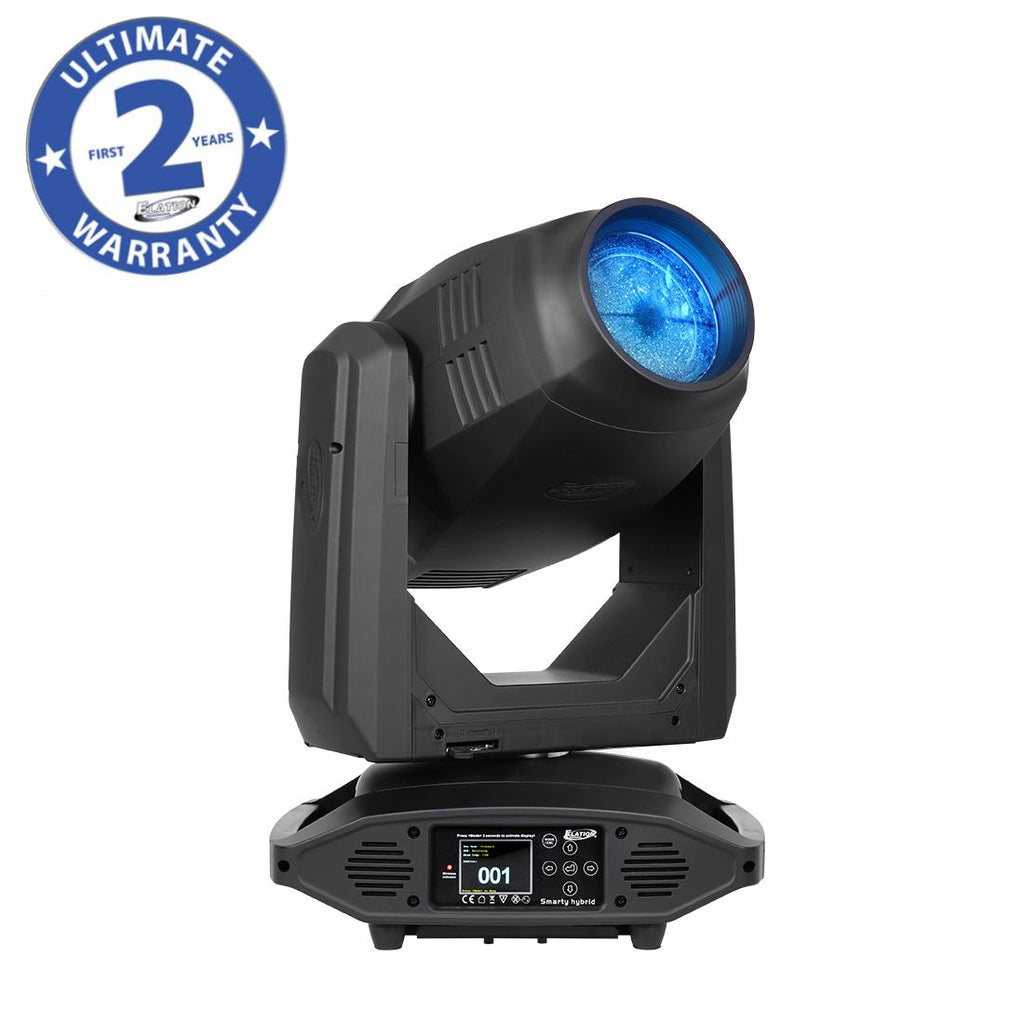

SMARTY HYBRID FIL 280W Hybrid Spot, Beam, Wash w/ CMY

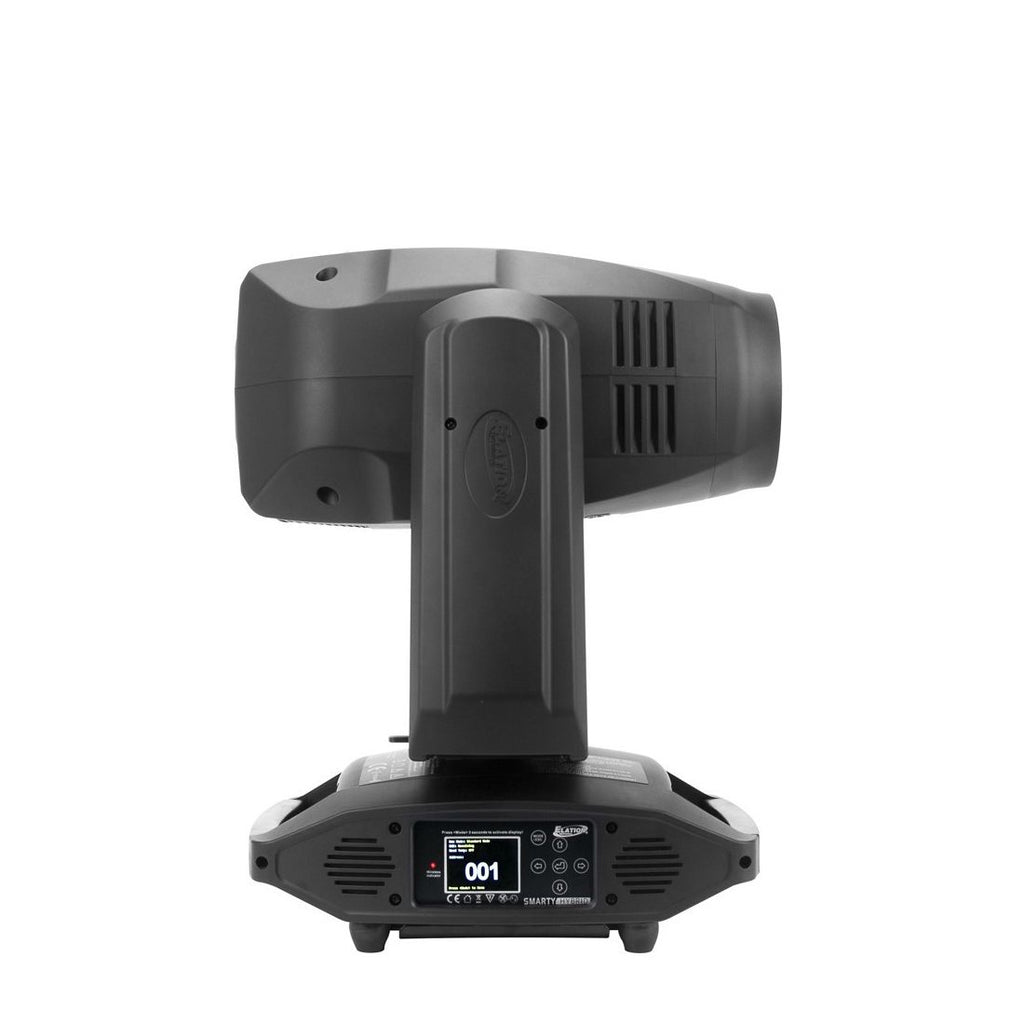

The Smarty Hybrid™ is a compact full featured CMY color mixing spot, beam, and wash hybrid luminaire featuring the all new Philips™ MSD Platinum 200 Flex lamp with “FLEX” technology which uses a smartly designed discharge lamp/ballast package to produce high output and compact performance at an efficient, long life solution of up to 6,000 hours. Features include 11,000 total lumen output, motorized zoom ranges of 1° to 18° in beam mode, 3° to 27° in spot mode, and 5° to 33° in wash mode, a full CMY color mixing system, a full frost filter for wash effects, 13 dichroic colors including a quad-color filter, CTB, CTO, and UV, 8 rotating—interchangeable glass and 12 static-stamped metal gobos, a 16-facet and 5-facet linear independent rotating prisms, multiple CMY color, gobo, and prism macros, motorized focus with an auto-focus feature, high speed shutter and strobe, lamp hibernation mode, DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, Elation’s E-FLY™ internal wireless DMX transceiver, 5pin XLR, RJ45 etherCON, and Neutrik TRUE1 power in/out connections, full color 180° reversible LCD menu display with battery backup, a multi-voltage universal auto switching power supply (100-240V), and a comprehensive 2-year / 6,000 hour ultimate warranty**

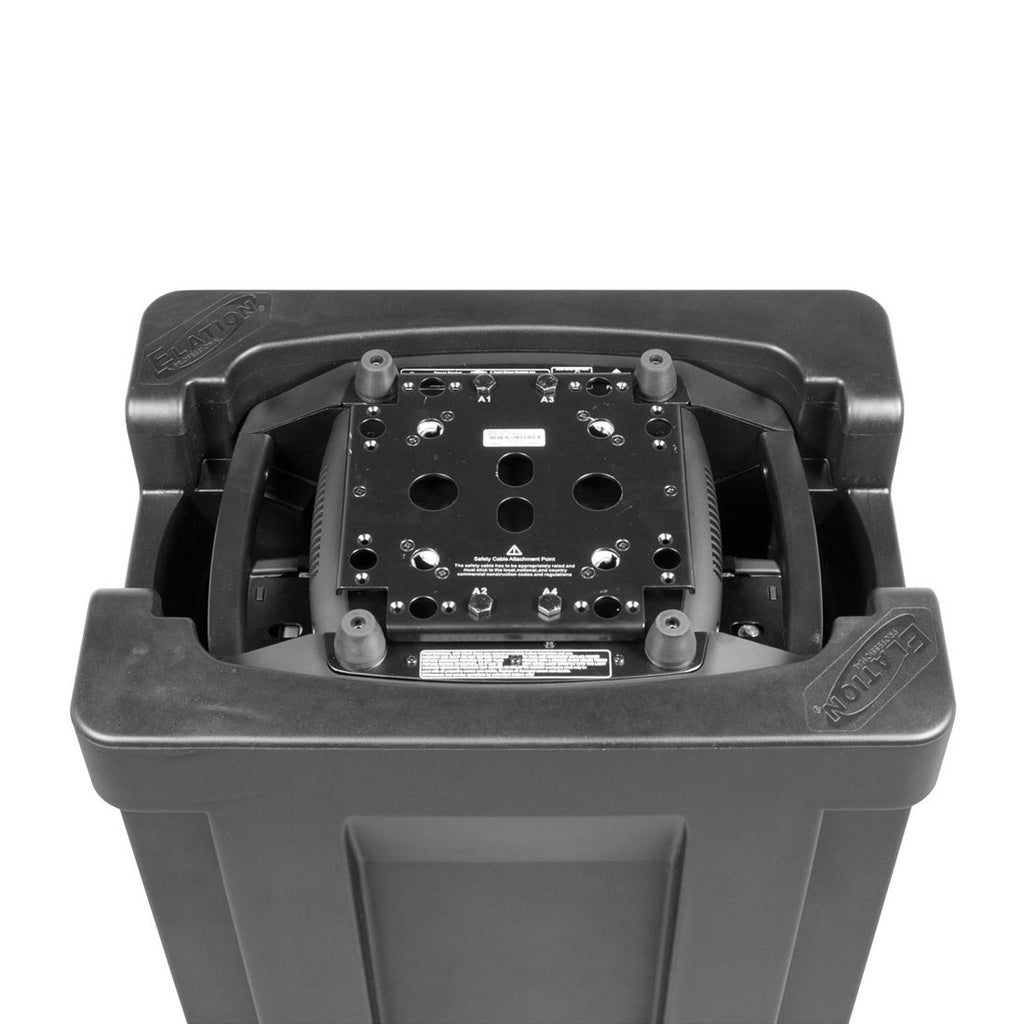

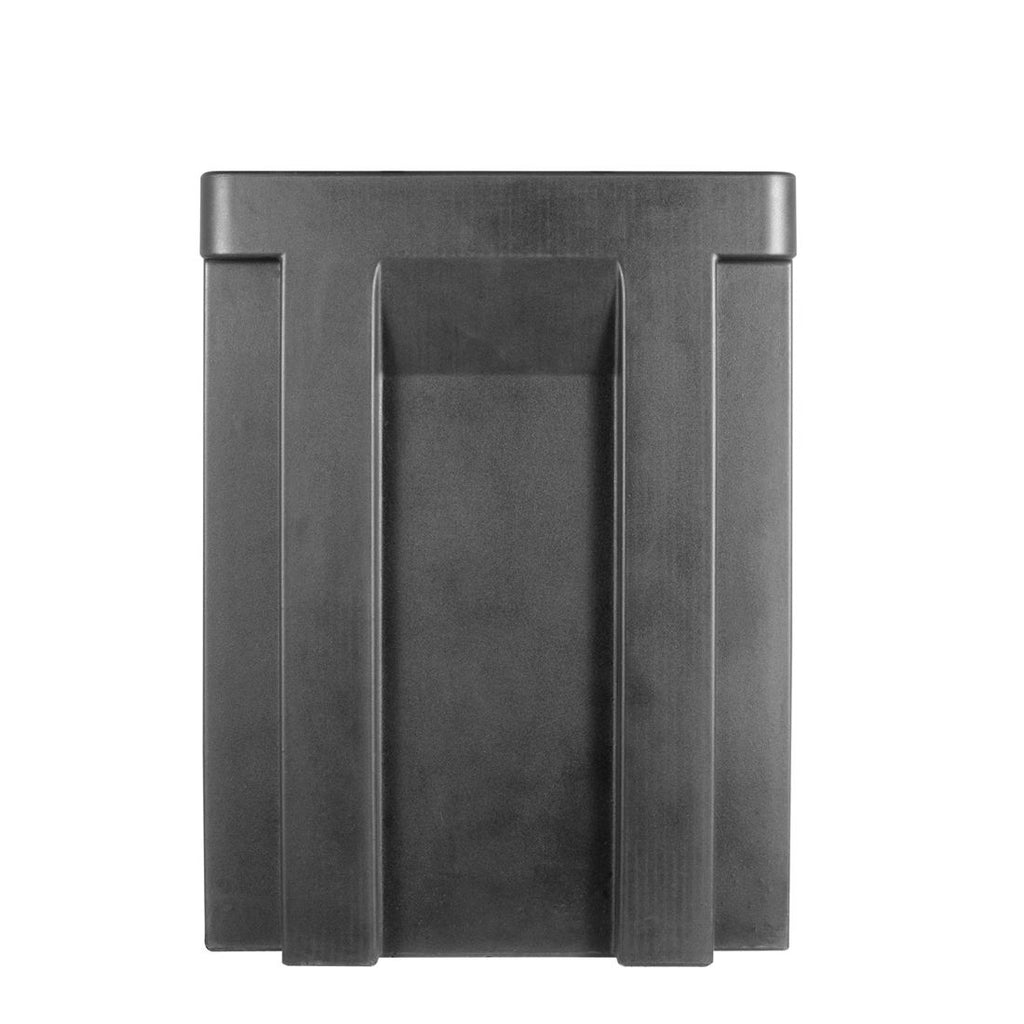

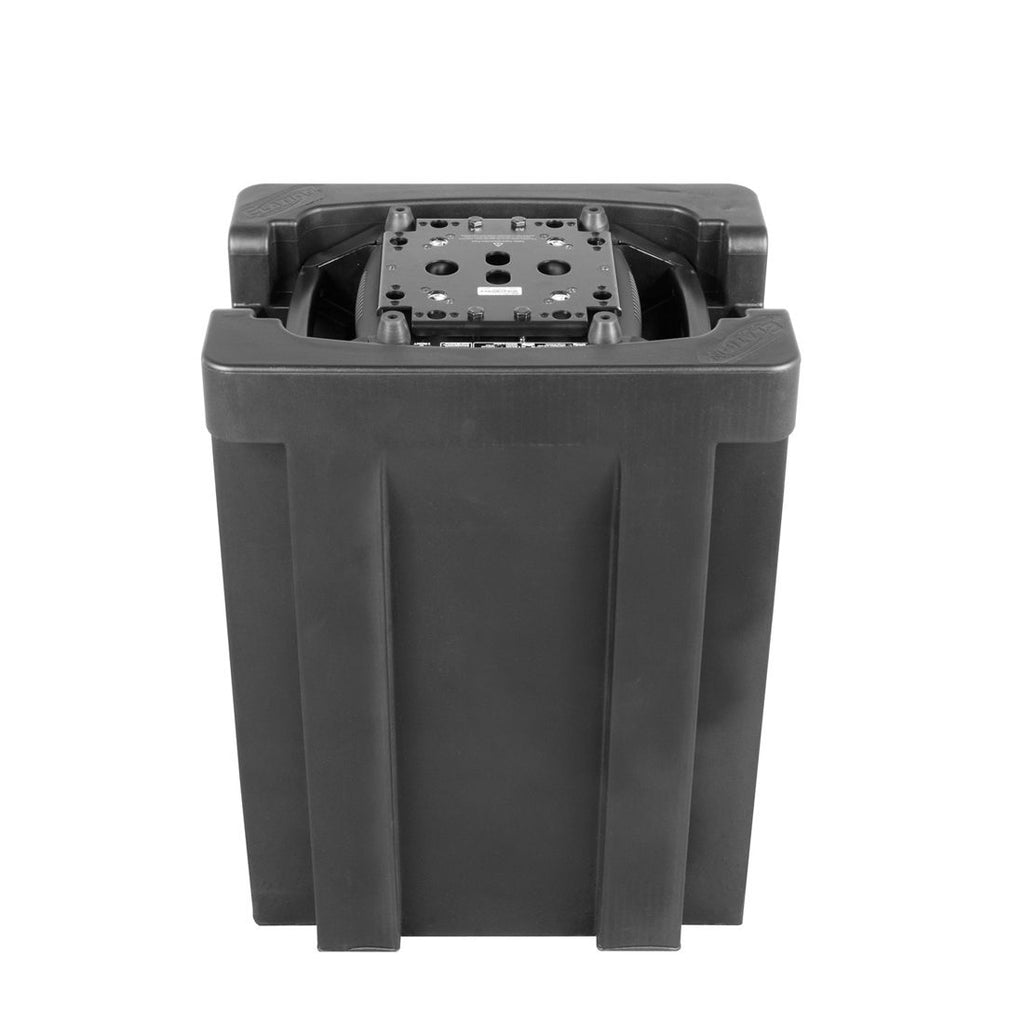

The Smarty Hybrid FIL fixture ships in a cardboard box with a custom fitted polyurethane foam FIL (Foam In Lay) insert. This foam insert easily fits into any custom sized flight case (not included), and provides enhanced impact protection during transport.

Features:

• 3-in-1 Smart Hybrid Beam, Spot, Wash Luminaire
• New Philips™ MSD Platinum 200 Flex Lamp
• Up To 6,000 Lamp Hours*
• FLEX Lamp Technology from 190 to 280W + Hibernation Mode
• Motorized Zoom: 1° - 18° Beam, 3° - 27° Spot, 5° - 33° Wash
• Full Frost Filter for Wash Effects
• Full CMY Color Mixing System
• 13 Colors including Quad Color, CTB, CTO, and UV
• 8 Rotating Interchangeable Glass Gobos
• 12 Static-Stamped Metal Gobos
• 16-Facet and 4-Facet Linear Rotating Prisms
• Multiple CMY Color, Gobo, and Prism Macros
• Motorized Focus with Auto-Focus Feature
• DMX, RDM, Art-NET, and sACN Support
• Elation’s E-FLY™Internal Wireless DMX Transceiver
• Ultimate Warranty** - Comprehensive 2 Years / 6,000 Hours
• **First 2 Years of operation or 6,000 hours of use, whichever comes first, based on regular fixture/lamp maintenance.
• FIL (Foam In Lay)
• Custom fitted polyurethane foam insert. Fits easily fits into any custom sized flight case (not included), and provides enhanced impact protection during transport.

Specifications:
SOURCE
Philips™ MSD Platinum 200 Flex 280W Lamp
Up To 6,000 Hour Lamp Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, Dimming, and Lamp Mode.

PHOTOMETRIC DATA
11,000 Total Lumen Output
128,426 LUX 11,931 FC @49.2’ (15m) (Min Zoom Beam)
135,108 LUX 12,552 FC @16.4’ (5m) (Min Zoom Spot)

EFFECTS

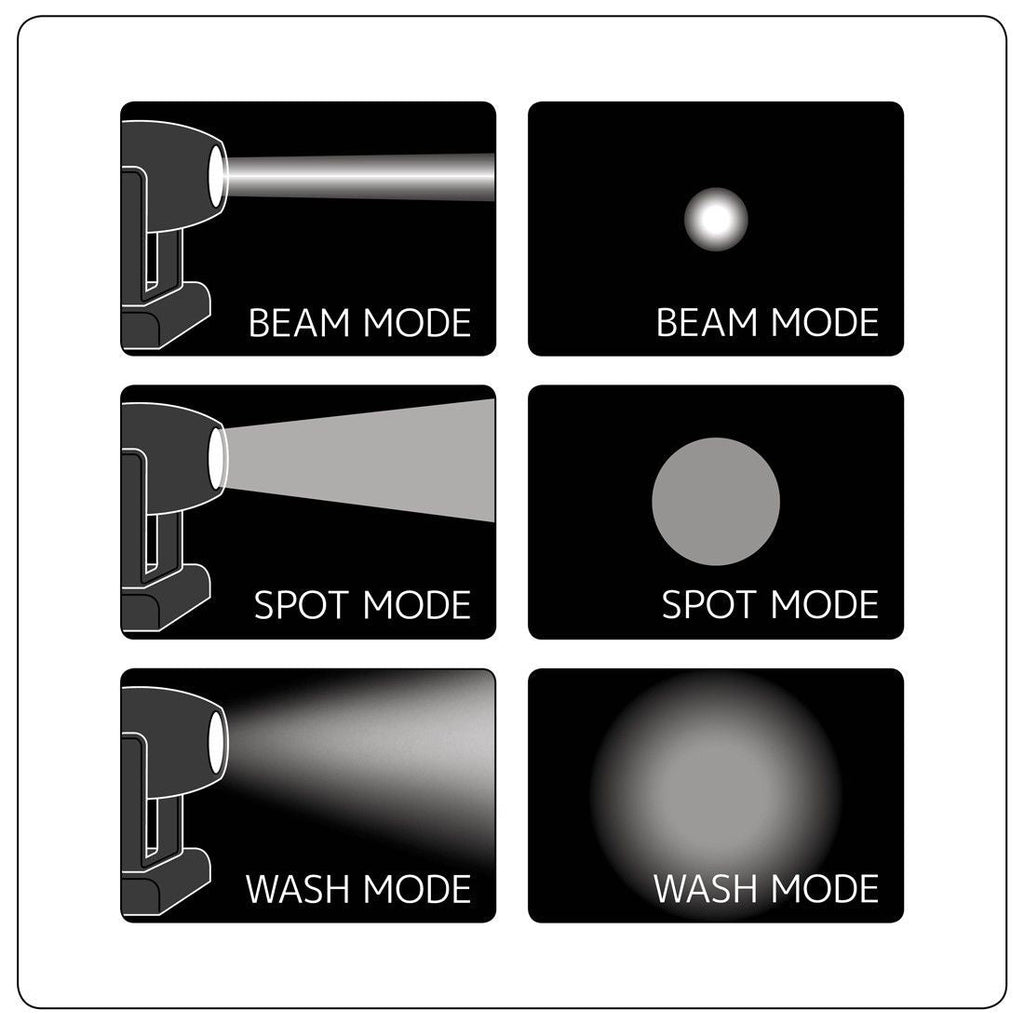

Beam, Spot, and Wash Modes
Motorized Zoom: 1° - 18° Beam, 3° - 27° Spot, 5° - 33° Wash
Full Frost Filter for Wash Effects
16-Facet and 4-Facet Linear Rotating Prisms
CMY Color, Gobo, and Prism Macros
Motorized Focus with Auto-Focus Feature
High Speed Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 270°

COLOR
Full CMY Color Mixing System
13 Colors including Quad Color, CTB, CTO, and UV

GOBOS
2 Gobo Wheels
8 Interchangeable-Rotating / Indexing Glass Gobos
12 Static-Stamped Metal Gobos

CONTROL / CONNECTIONS
2 DMX Channel Modes (20/34 channels)
Full Color 180° Reversible LCD Menu Display
6 Button Menu Control Panel
16 Bit Resolution Adjustable Movement
DMX, RDM, Art-NET, and sACN Protocol Support
Elation E-FLY Internal Wireless DMX Transceiver
Hibernation Mode (Power Save)

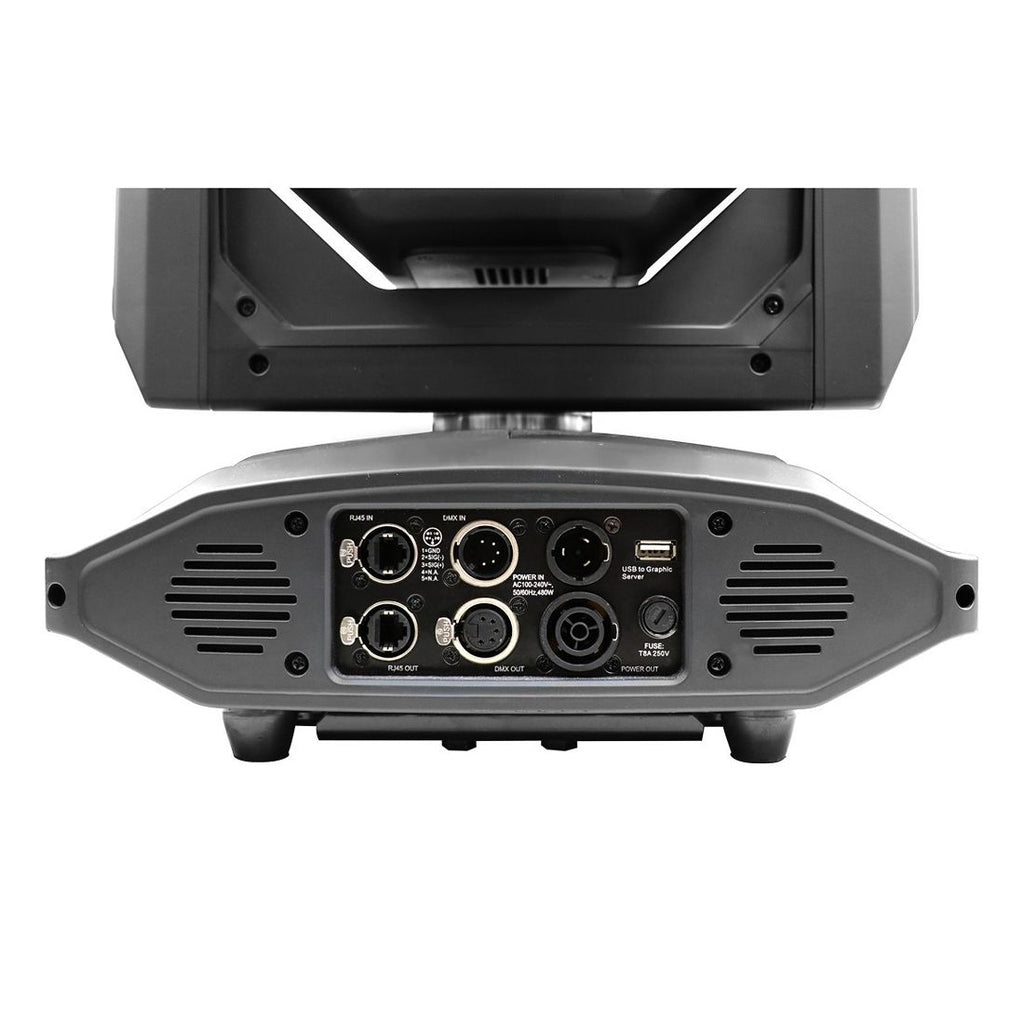

5pin DMX In/Out
RJ45 etherCON In/Out
Neutrik TRUE1 Power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 15.2” (385mm)
Width: 15.9” (405mm)
Vertical Height: 24.0” (610mm)
Center-to-Center Spacing 19.3in (490.8mm)
Weight: 49.0 lbs. (22.2 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
480W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS
CE | cETLus | IP20

Specifications and documentation subject to change without notice.
