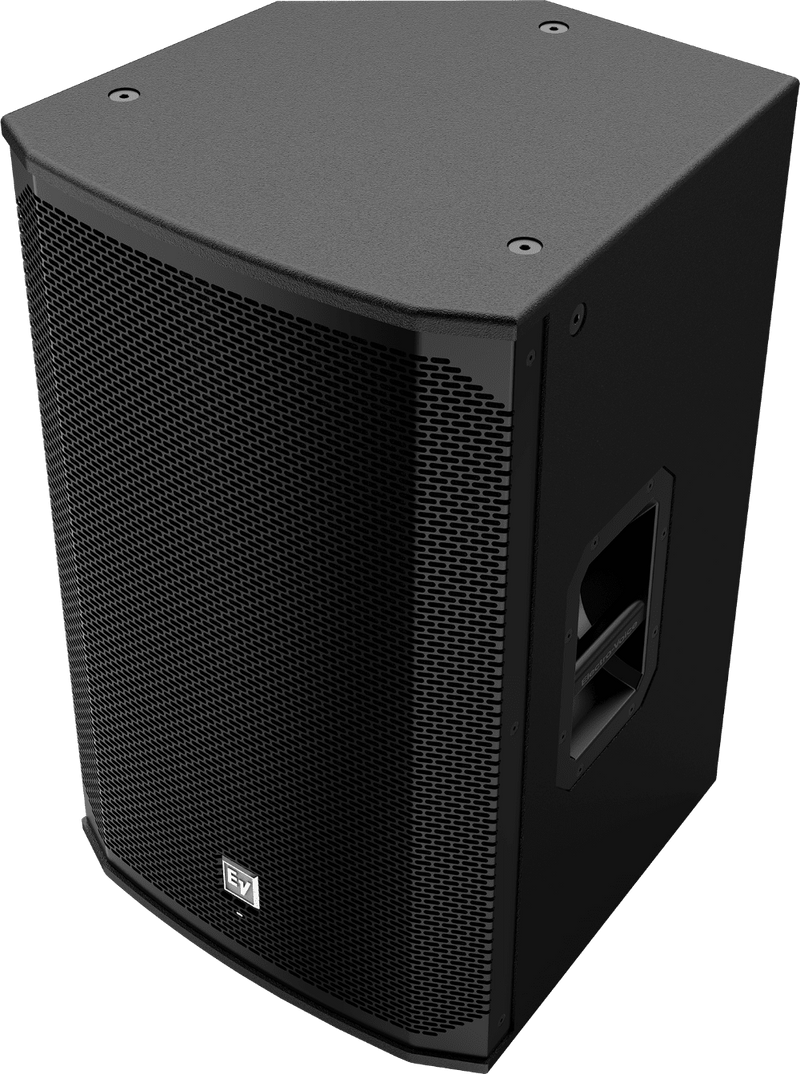

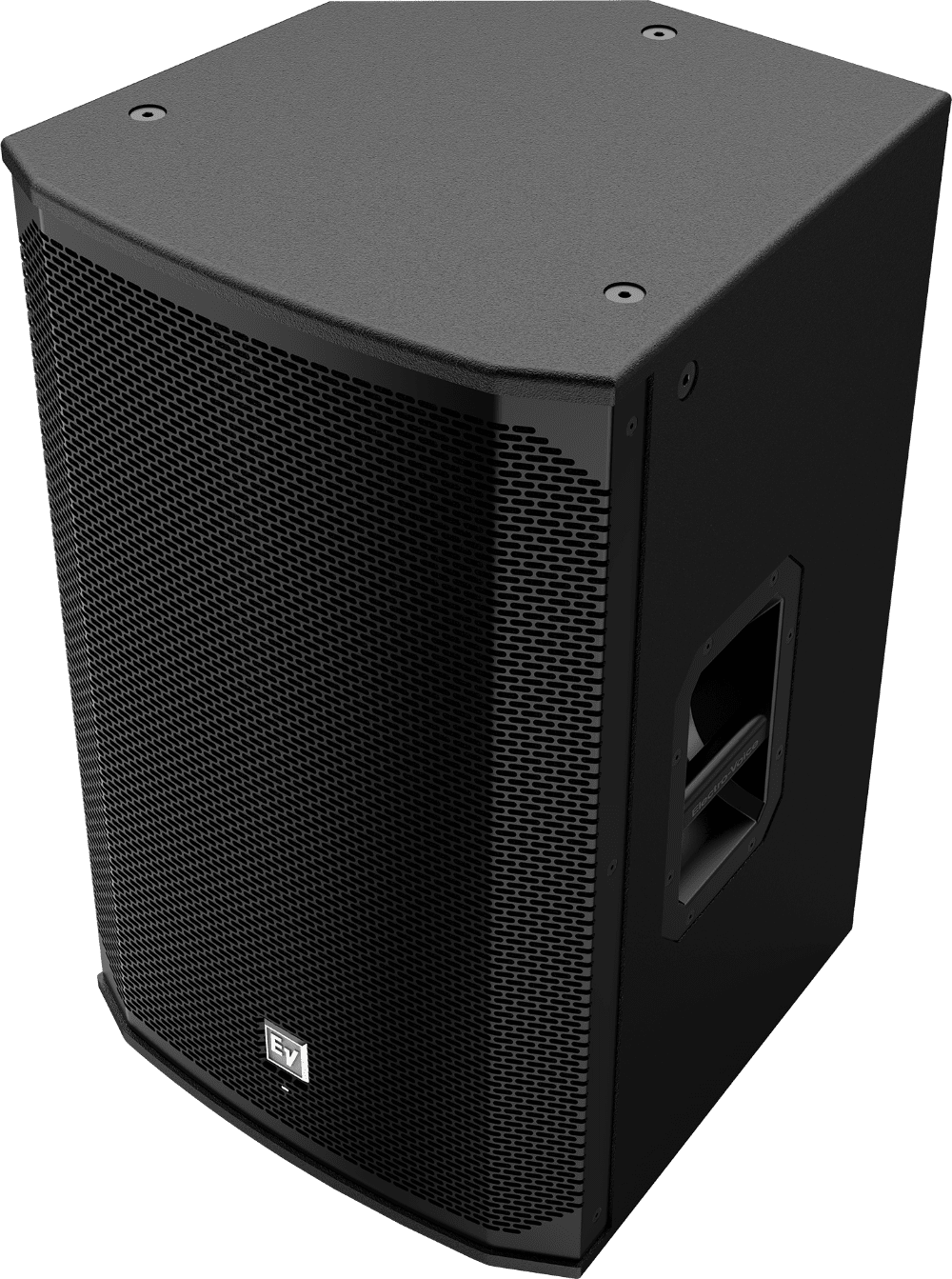

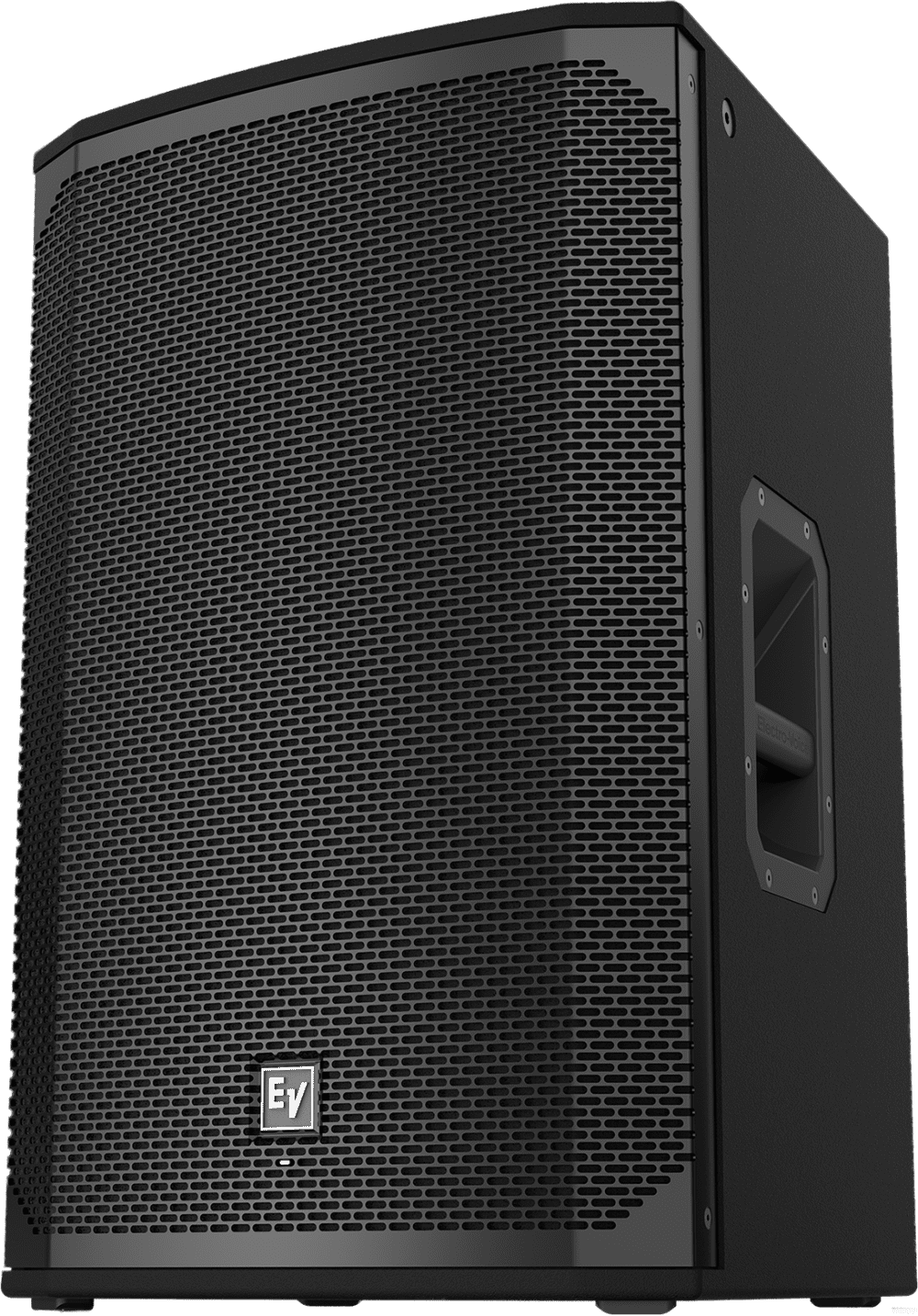

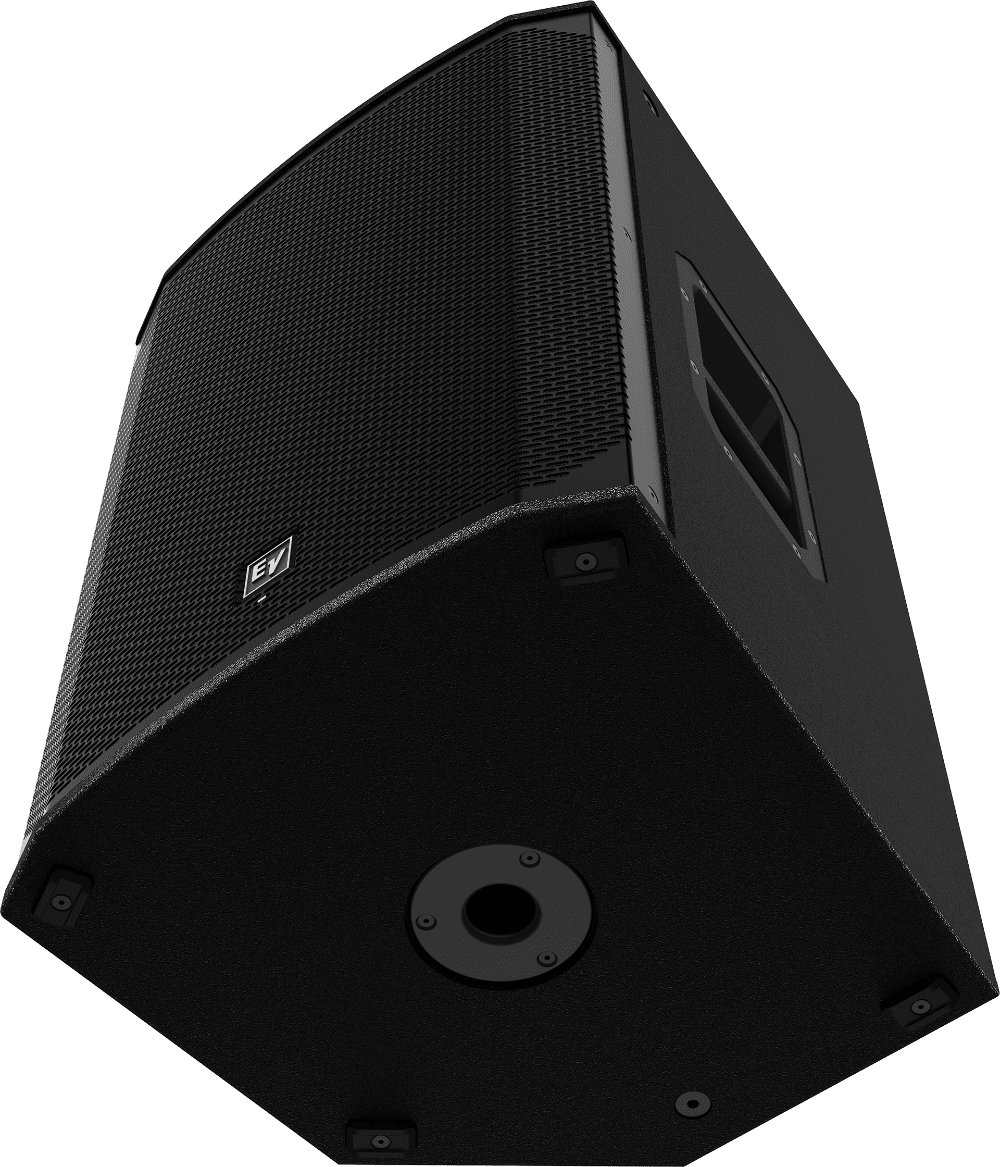

EKX-15

15" Passive Loudspeaker

EKX-15: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.

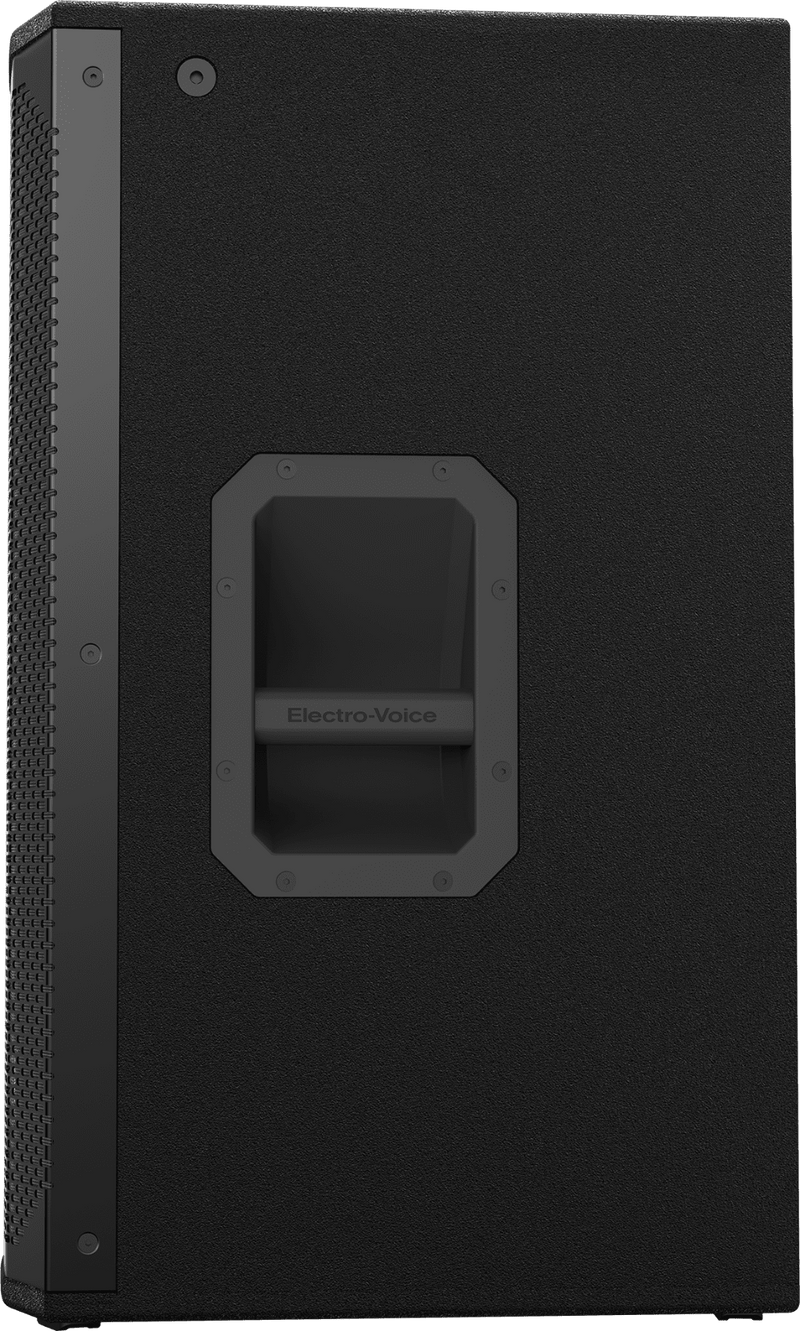

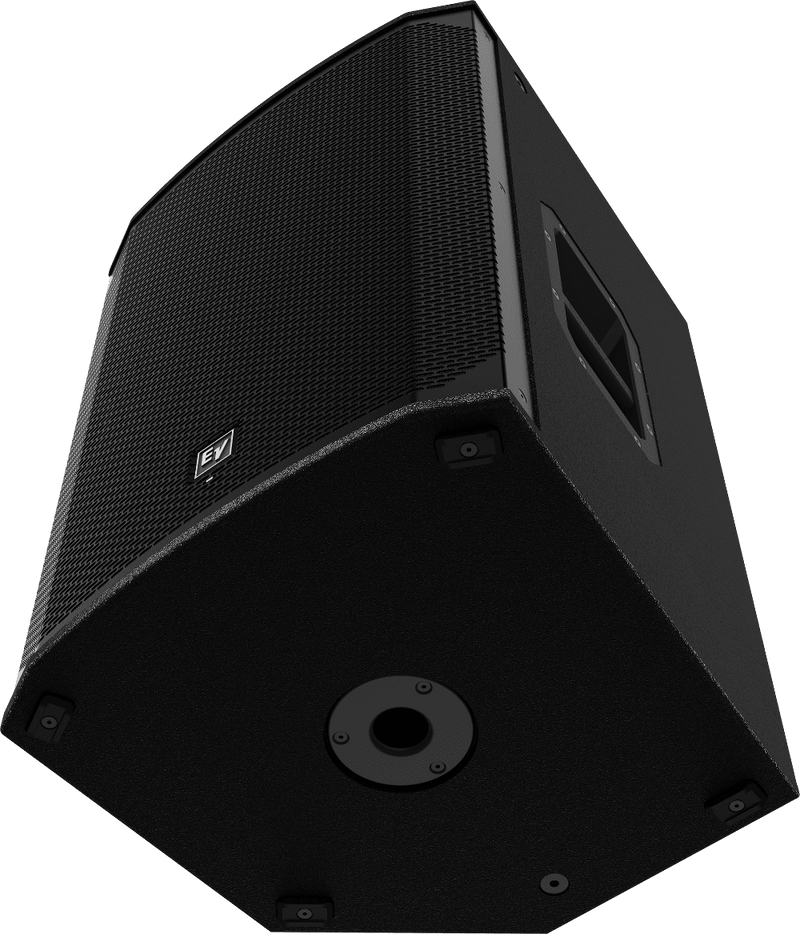

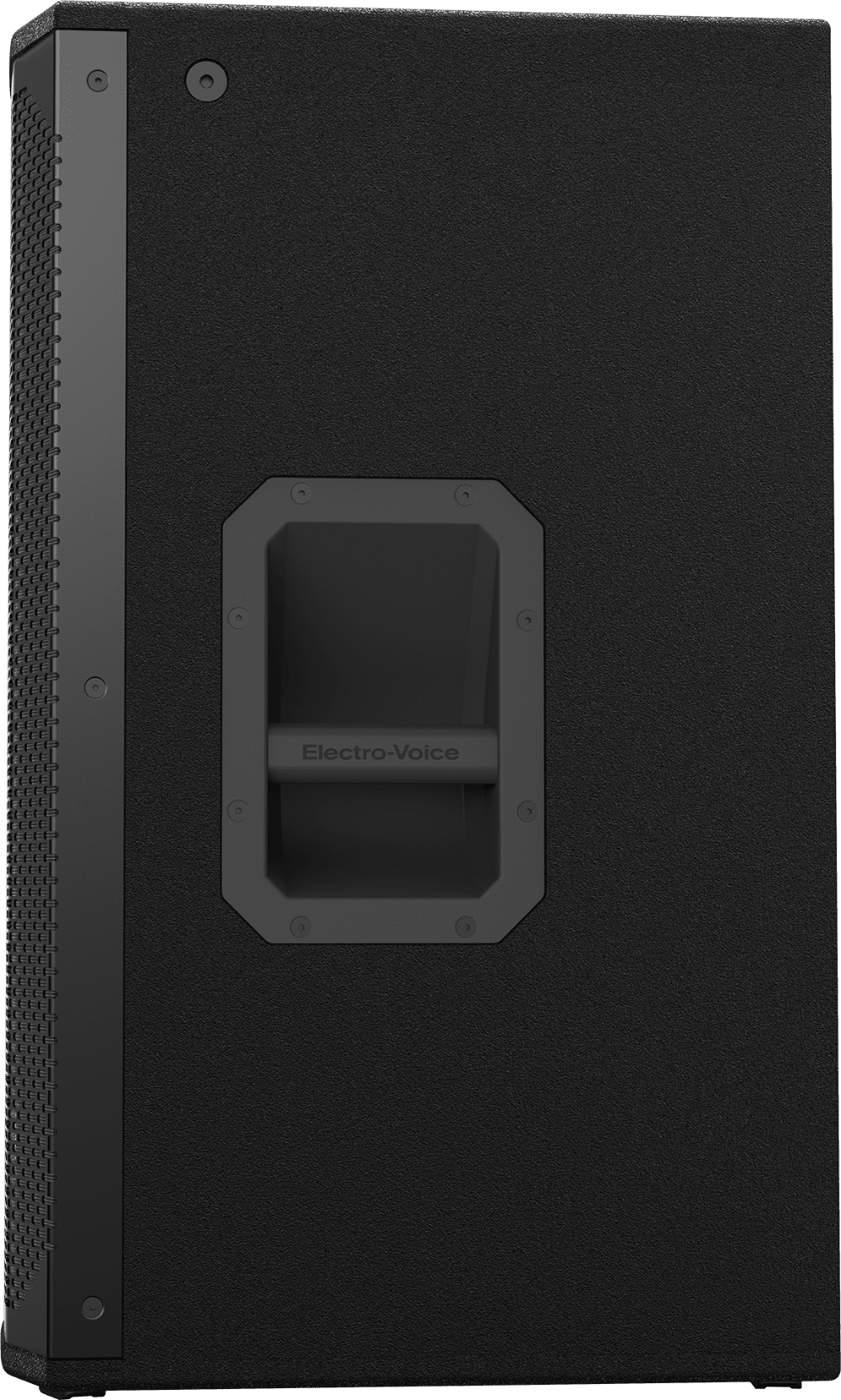

Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
90? x 60? pattern for best coverage on mid-size stages. 40? monitor angle with rubber feet.

Frequency Range (-10 dB)	50 Hz - 20 kkHz (Full Space Measurement)
Weight Net	51.15lbs (23.2kg)
Depth	16.89" (429mm)

Width	17.01" (432mm)
Height	26.97" (685mm)
Axial Sensitivity (SPL, 1 W @ 1 m)	96dB (Full Space Measurement)
Connector Type	Dual NL4
Coverage (Nominal -6 dB) H	90°
Coverage (Nominal -6 dB) V	60°
Crossover Frequency	1.6 kHz
Enclosure Material	15 mm, plywood with EVCoat
Family	EKX
Frequency Response (-3 dB)	75 Hz - 18 kHz (Full Space Measurement)
Grille	18 AWG steel with powdercoat
HF Transducer	DH-1M 1-inch titanium compression driver
LF Transducer	EVS-15M 381 mm (15 in)
Max. SPL/1m (calc)	132dB
Maximum SPL	132dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating)
Minimum Impedance	7.2?
Nominal Impedance	8?
Passive Power Handling	1600W peak
Power Handling (Continuous / Peak)	400 W/1600W
Power Rating	1600W
Powered or Passive	Passive
Recommended High-Pass Frequency	50Hz
Shipping Weight	62.17lbs (28.2kg)
Speaker Type	Full-Range, two way
Suspension	(8) M10 threaded mounting points
Woofer Size	15inch
