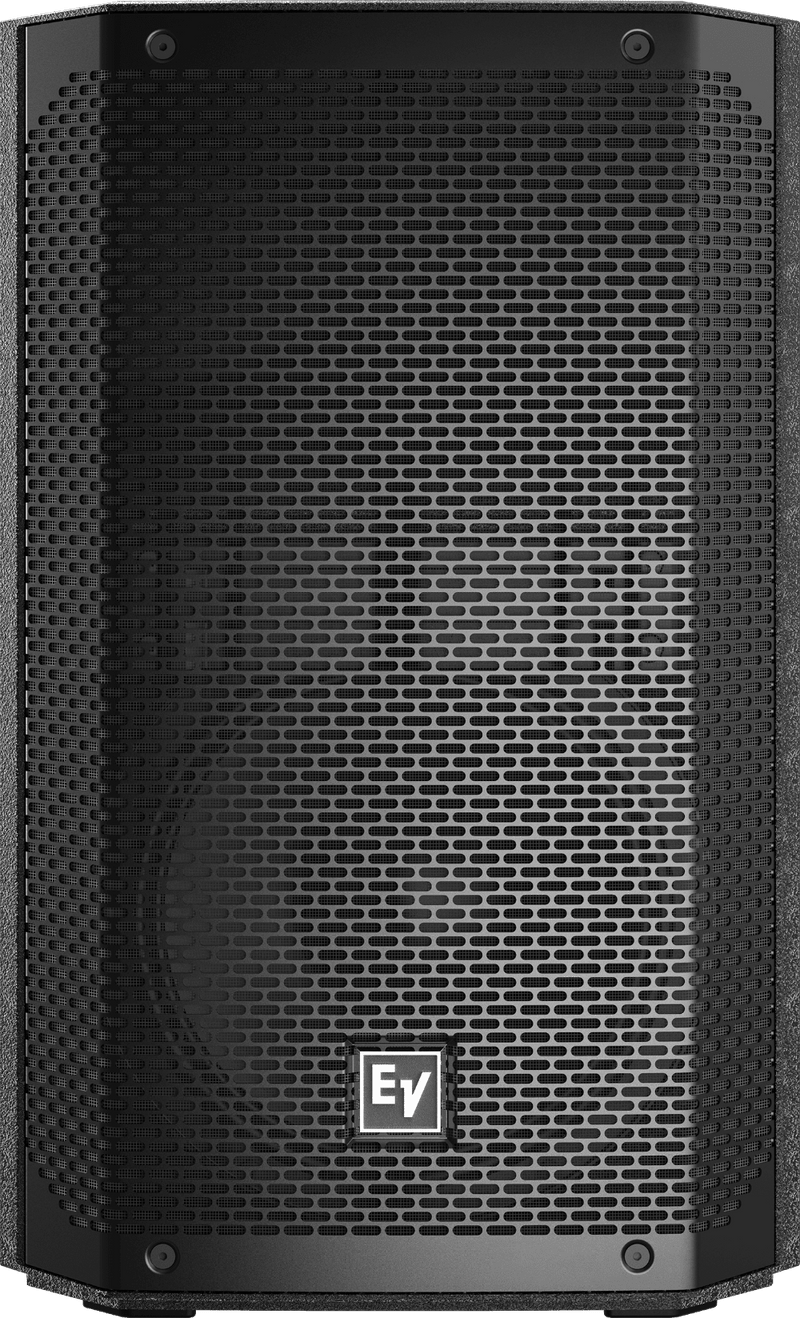

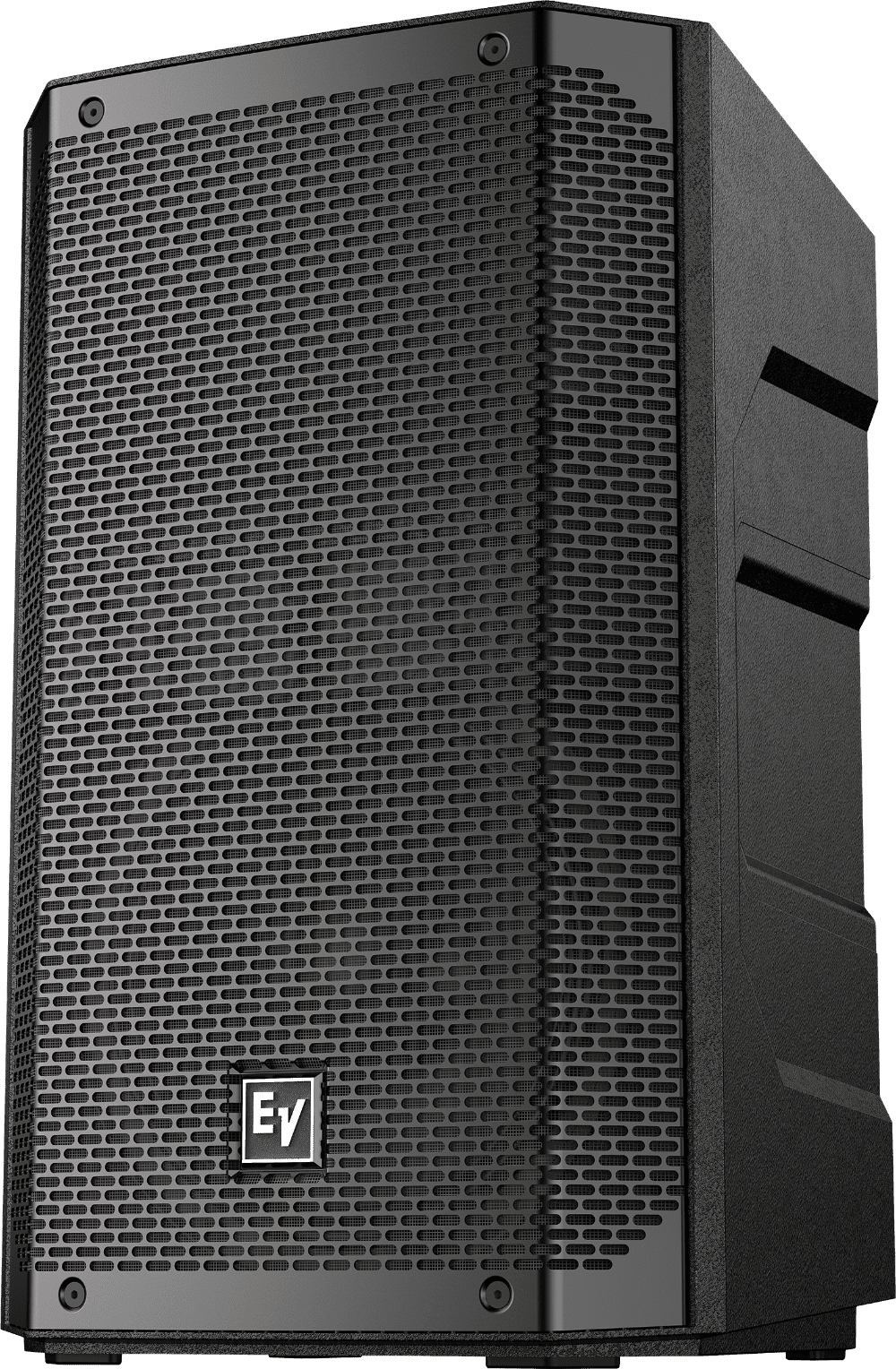

Electro-Voice EV ELX200-10

Electro-Voice EVSKU: ELX200-10

Price:
Sale price$579.00

Description



ELX200-10

10" Passive Loudspeaker

  • 1200 W (Peak), 127 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
  • 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response.
  • High-output EVS-10M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
  • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
  • Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting.

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.




Weight Net 29.54lbs (13.4kg)
Depth 12.56" (319mm)
Width 12.99" (330mm)



Height 20.91" (531mm)
Available Color Black or White
Axial Sensitivity (SPL, 1 W @ 1 m) 90dB
Connector Type Dual NL4
Coverage (Nominal -6 dB) H 90°
Coverage (Nominal -6 dB) V 60°
Crossover Frequency 2 kHz
Enclosure Material Polypropylene Composite
Family ELX200
Frequency Range (-10 dB) 49 Hz - 22 kHz
Frequency Response (-3 dB) 65 Hz - 20 kHz
Grille 18 AWG steel with powdercoat
HF Transducer DH-1C 1-inch titanium compression driver
LF Transducer EVS-10M 254 mm (10 in)
Max. SPL/1m (calc) 127dB
Minimum Impedance 7.2?
Nominal Impedance 8?
Power Handling (Continuous / Peak) 300 W/1200W
Power Rating 1200W
Recommended High-Pass Frequency 55Hz
Shipping Weight 33.73lbs (15.3kg)
Speaker Type Full-Range
Suspension (3) M10 suspension points
Woofer Size 10inch
