Electro-Voice EV EVID6.2T (sold only in pairs)
Roll over image to zoom in Click on image to zoom
Electro-Voice EV EVID6.2T (sold only in pairs)

Electro-Voice EV EVID6.2T (sold only in pairs)

Electro-Voice EVSKU: EVID-6-2T
Price:
$609.00

Description

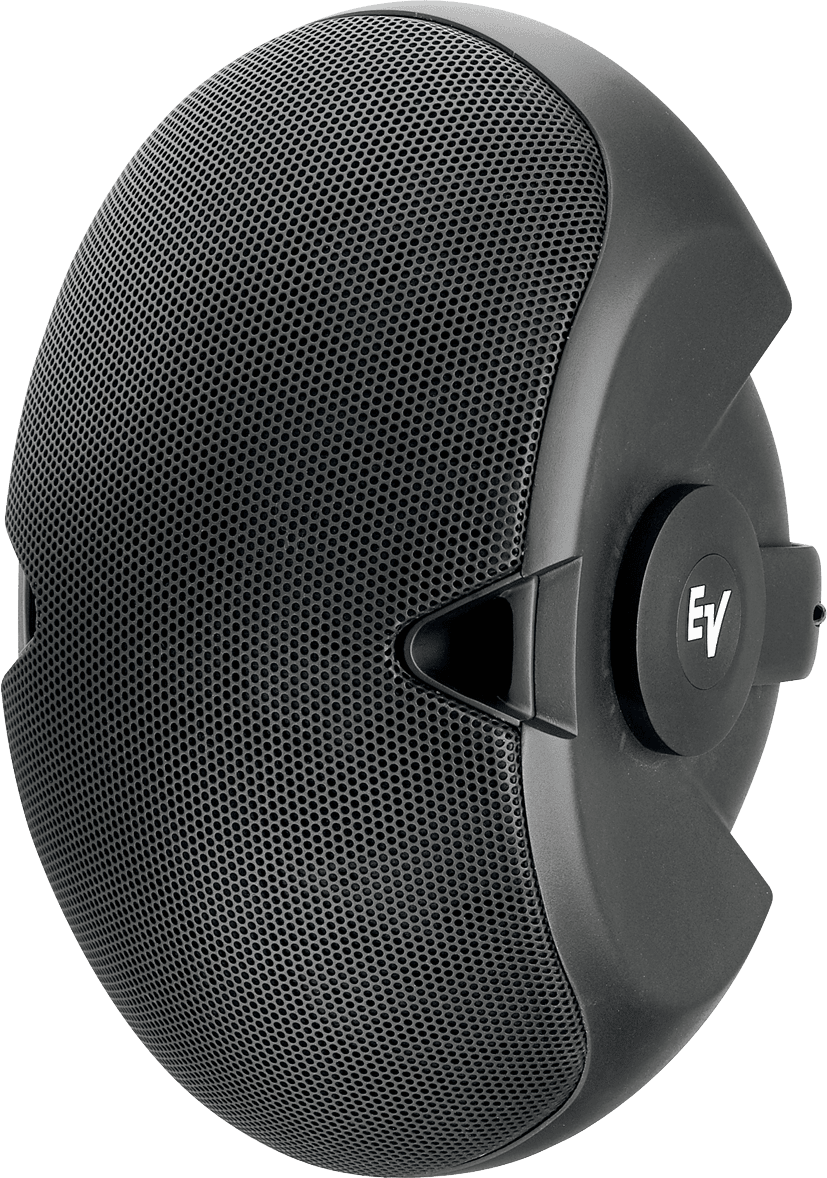

Two-way twin 6" woofer and 1" horn loaded 100 x 90 tweeter. Internal 70/100-volt line transformer. Black cabinet. Includes mounting system. (sold and priced per pair)

EVID 6.2

Dual 6" 2?Way Surface-Mount Loudspeaker

  • Compact full range
  • Ideal for shopping malls, sports bars, and health clubs
  • Vented LF enclosure
  • 1-inch titanium diaphragm HF driver with neodymium magnetic structure
  • Coherent Coverage Waveguide
  • Full-bandwidth overload protection (LF and HF)
  • Elliptical weather-resistant ABS enclosure
  • Paintable black or white finish
  • Magnetically shielded for video applications
  • Strong-Arm Mount™ for easy, flexible aiming
  • "T" version for 70 or 100 V distributed systems

Frequency Response ¹ ( z -10 dB) 62 Hz - 20 kHz
Power Handling ² 300W Cont. Prog./600W Peak
Sensitivity ³ 94 dB, 1W/1m

Impedance 8 ohms
Max SPL 118 d
Horizontal Coverage? 100°
Vertical Coverage? 80°
Crossover Frequency 1.6 kHz
LF Transducer 2 x 6" (100 mm)
HF Transducer 1" (25 mm)
Protection Full Syste
Weather Resistance Meets Mil Spec 810 humidity, salt spray, temperature and UV, and IEC 529 IP 34 splashproof ratings
Swing x Rotation 100° x 90°
Terminals Phoenix Connector
Enclosure Material ABS (paintable)
"t" Version Wattage Taps 70V 7.5 W 70V/100V 15W, 30W, 60W, 8 ohm bypass
Dim (H x W x D) 16.5" x 9" x 11.75" (419 mm x 228 mm x 298 mm)
Net Weight (each) 12 lbs (5.3kg)
Shipping Weight (pair) 27 lbs (12.3 kg)
Included Accessories SAM™, hex key
¹ Half Space (wall mounting)
² Continouous Program Rating: 3 dB greater than continuous pink noise rating (IEC-shaped pink noise with 6dB crest factor)
³ Avg: Half Space (wall mounting)
? When mounted with long axis in vertical plane
