FBT MITUS 212 FSA

PROCESSED FLYABLE ACTIVE SUBWOOFER

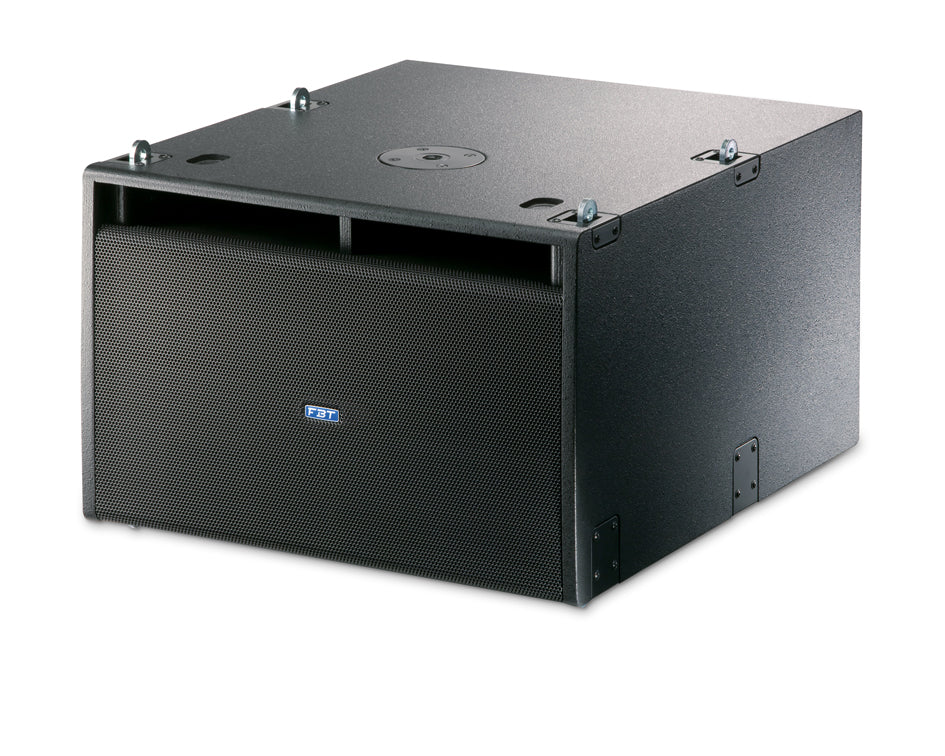

The MITUS 212 FSA is a new flyable active subwoofer sharing the same width and suspension hardware of the MITUS 206 LA line array flown configurations at the top of a MITUS 206 LA, in a separate column or ground stacked.

It increases the low frequency headroom and extend the bandwidth of an array of MITUS 206 LA down to 45Hz. The band-pass enclosure design utilizes 2x12” B&C high excursion woofers with neodymium magnet assembly and is equipped with a Class D built-in amplifier with DSP and switch mode power supply, delivering 1200 Wrms. The MITUS 212 FSA enclosure is built from 15mm birch plywood and has a tour-grade extra strong paint finish, with ergonomic handles and rigid metal grille with internal foam.

• Compact vented band pass subwoofer sharing the same width and hardware suspension of the MITUS 206LA
• 320 mm (2 x 12’’) B&C neodymium magnet high excursion subwoofers with 75 mm (3’’) voice coils
• Frequency Response from 45Hz to 120Hz
• Class D amplifier delivering 1200WRMS
• Switch mode power supply
• DSP with 8 presets, cardioid and infra configurations, delay
• Control panel with XLR input and link, volume, presets, delay, phase 0°-180°, ground-lift
• 15 mm (5/8’’) birch plywood enclosure, scratch resistant black paint
• Low frequency extension cabinet for the MITUS 206LA line array for flying or ground stacked configurations.
• M20 top mount stand socket
