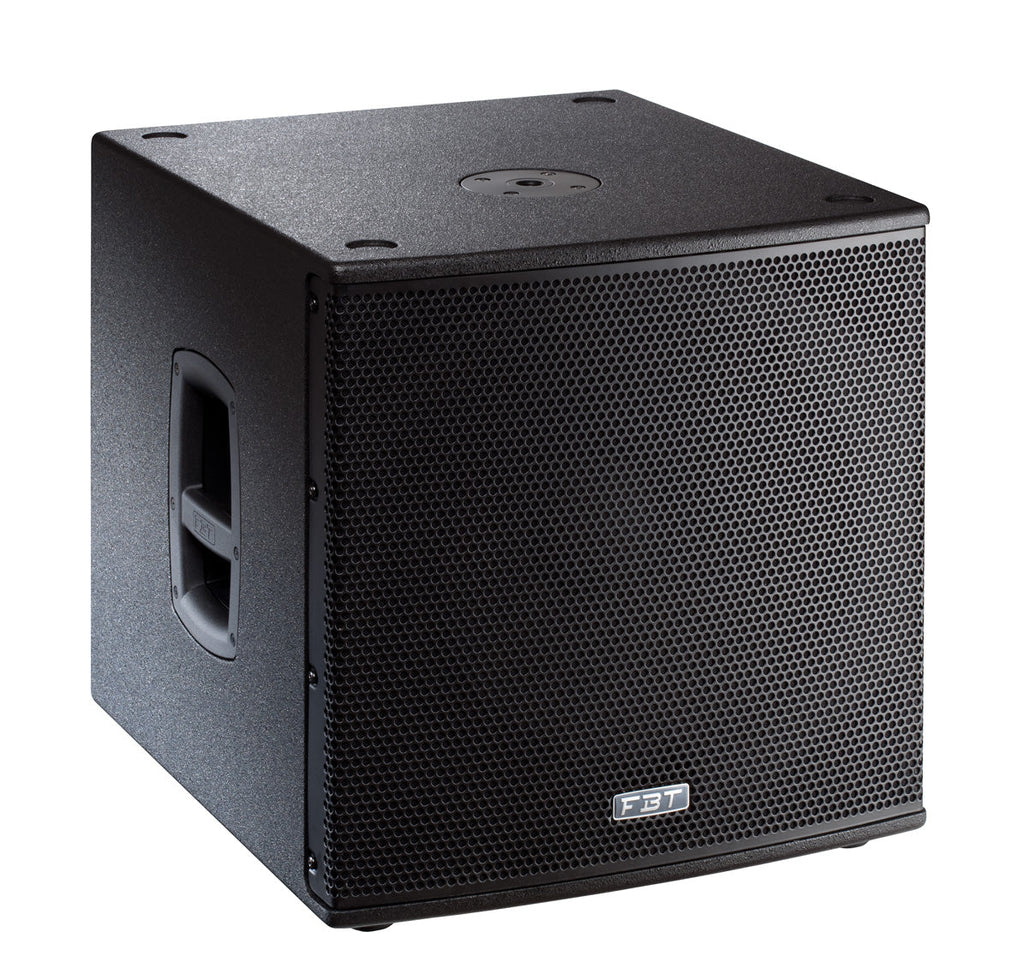

FBT SUBLINE 115 SA
Roll over image to zoom in Click on image to zoom
FBT SUBLINE 115 SA

FBT SUBLINE 115 SA

Save $1,177.00
FBTSKU: 35311
Price:
$768.00 $1,945.00

Description



PROCESSED ACTIVE SUBWOOFER 700W RMS - 132/135DB SPL

The SUBline series has been completely redesigned and consists of 112SA, 115SA, 118SA, 218SA active and 118S and 218S passive subwoofer models, all bass-reflex , built in birch plywood and aimed to extend the low frequency response to a wide range of FBT speaker systems.

Created with the aim to maximize SPL/SIZE ratio, they have Class D amplifiers, switch mode power supply and Digital Signal Processor with presets to match any other FBT speaker.

With IN/OUT stereo connectors, it is possible to use only one subwoofer with Left and Right speakers

Optional wheels, ergonomic integrated carrying handles and tour-grade plywood cabinets allow an easy transport

  • Bass-reflex design with high SPL and punch
  • 380mm (15”) high excursion magnet woofer with 75mm (3”) voice coil
  • Frequency response from 40Hz to 140Hz
  • New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
  • Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration
  • Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch 0°-180°, 3 status LED indicators
  • 15 mm (0.59”) birch plywood scratch resistant enclosure with internal bracing
  • M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
Code: 41222
Configuration: 1 way
Built-in amplifier LF/HF: 700 W RMS
Built-in amplifier peak LF/HF: 1400 W
Frequency response: 38Hz - 140Hz -6dB
Low Frequency woofer: 15 inch
Maximum SPL cont/peak: 132/135 Half-space dB
Dispersion: omnidirectional HxV
Input impedance: 22 Kohm
Crossover Frequency: 90 or 140Hz KHz
AC Power requirements: 640 VA
Input connector: stereo XLR with loop, HP out
Power cord: 6/19.7 m/ft
Net Dimension (WxHxD): 500x517x570 / 19.7x20.3x22.4 mm/inch
Net Weight: 28/61.7 kg/lb
Transport Dimension (WxHxD): 600x617x670 / 23.6x24.3x26.4 mm/inch
Transport Weight: 32/70.5 Kg/lb
