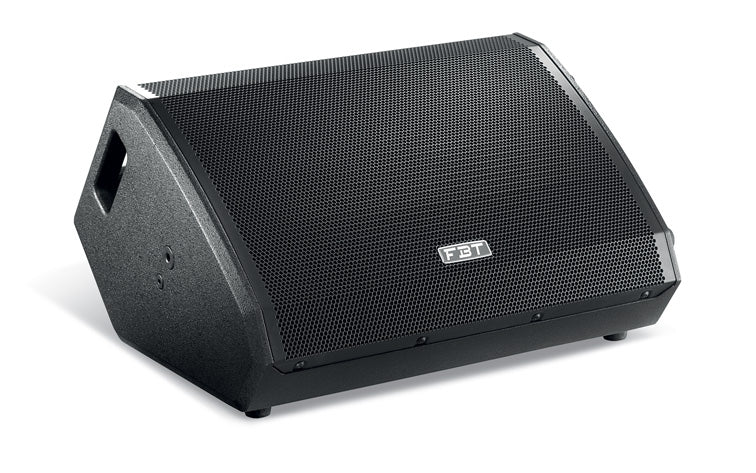

FBT VENTIS 112MA
Roll over image to zoom in Click on image to zoom
FBT VENTIS 112MA

FBT VENTIS 112MA

Save $1,225.00
FBTSKU: 41214
Price:
$824.00 $2,049.00

Description



PROCESSED ACTIVE MONITOR 700W + 200W - 132DB SPL

The 112MA and 115MA bring floor monitoring to VENTIS. Rated at 700W + 200W, the bi-amplified 112MA delivers 132dB SPL in a bass reflex design, using a 320mm (12”) coaxial custom woofer with a 64mm (2.5’’) voice coil, 25mm (1”) B&C throat and 44mm (1.7”) voice coil. The enclosure has a frequency response of 55Hz to 20kHz with 90° conical dispersion, while onboard DSP offers six factory presents for a broad range of scenarios. For flexibility in use, the monitor offers a 35mm (1.38’’) stand socket, two integrated carrying handles and an optional wall mount bracket. Alternatively, the passive 112M is rated at 400W into 8ohm delivering 129dB SPL, with a built-in passive crossover and speakon NL-4 In and Link Out connectors.

  • 2-way bi-amplified, bass-reflex design
  • 320 mm (12”) coaxial custom woofer with 64 mm (2.5’’) voice coil, 25mm (1”) exit throat B&C with 44mm (1.7”) voice coil
  • Frequency response from 55Hz to 20kHz
  • DSP with 6 factory presets (ORIG, HI-CUT/DRUM-FILL, LO-CUT/DOUBLE, FOH, VOCAL, TOURING)
  • 90° conical dispersion
  • 35 mm (1.38’’) stand socket, two integrated handles and optional wall mount bracket



Code: 41215
Configuration: 2 way
Built-in amplifier LF/HF: 700/200 W RMS
Built-in amplifier peak LF/HF: 1400/400 W
Frequency response: 55Hz - 20KHz -6dB
Low Frequency woofer: 12 - 2.5 coil inch
High Frequency driver: 1 - 1.7 coil inch
Maximum SPL cont/peak: 126/133 dB
Dispersion: 90° HxV
Input impedance: 22 Kohm
AC Power requirements: 640 VA
Input connector: XLR with loop, RCA ST
Power cord: 5/16.4 m/ft
Net Dimension (WxHxD): 563x311x452 / 22.2x12.2x17.8 mm/inch
Net Weight: 17.5/38.6 kg/lb
Transport Dimension (WxHxD): 663x411x552 / 26.1x16.2x21.7 mm/inch
Transport Weight: 22/48.5 kg/lb
