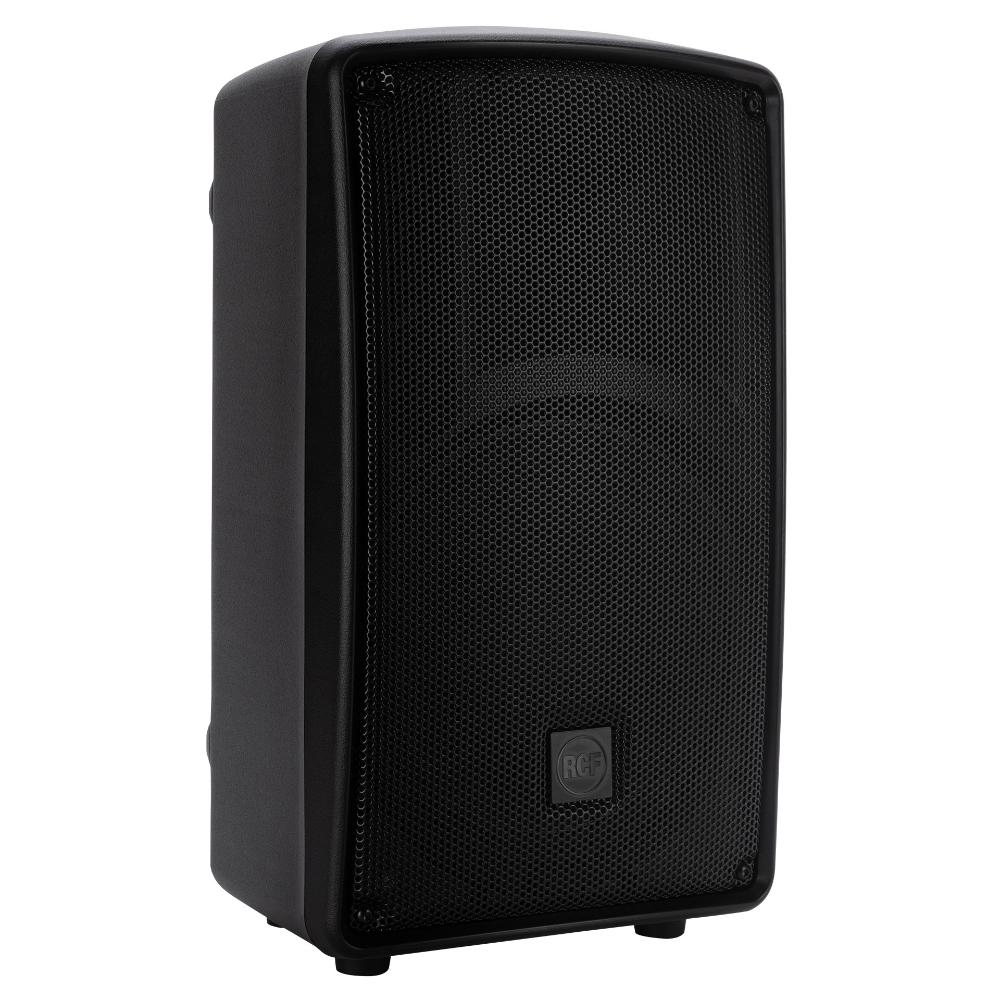

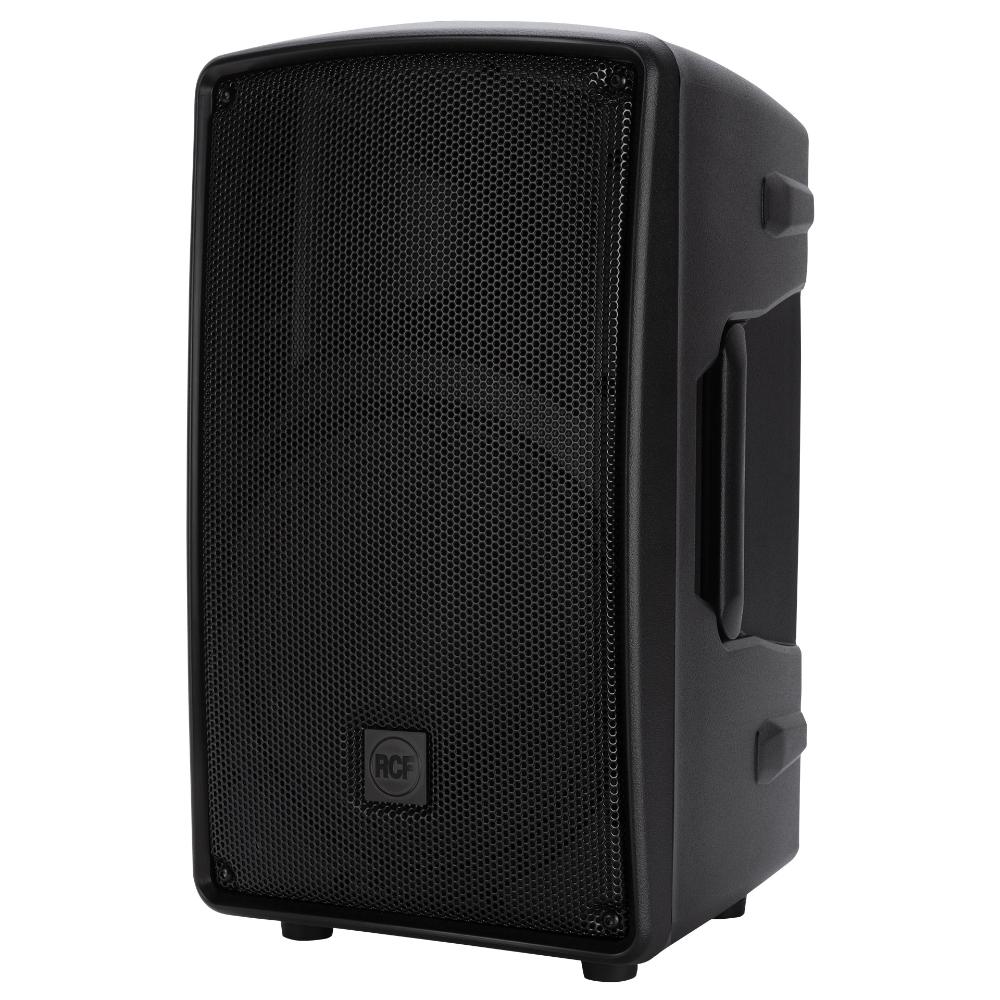

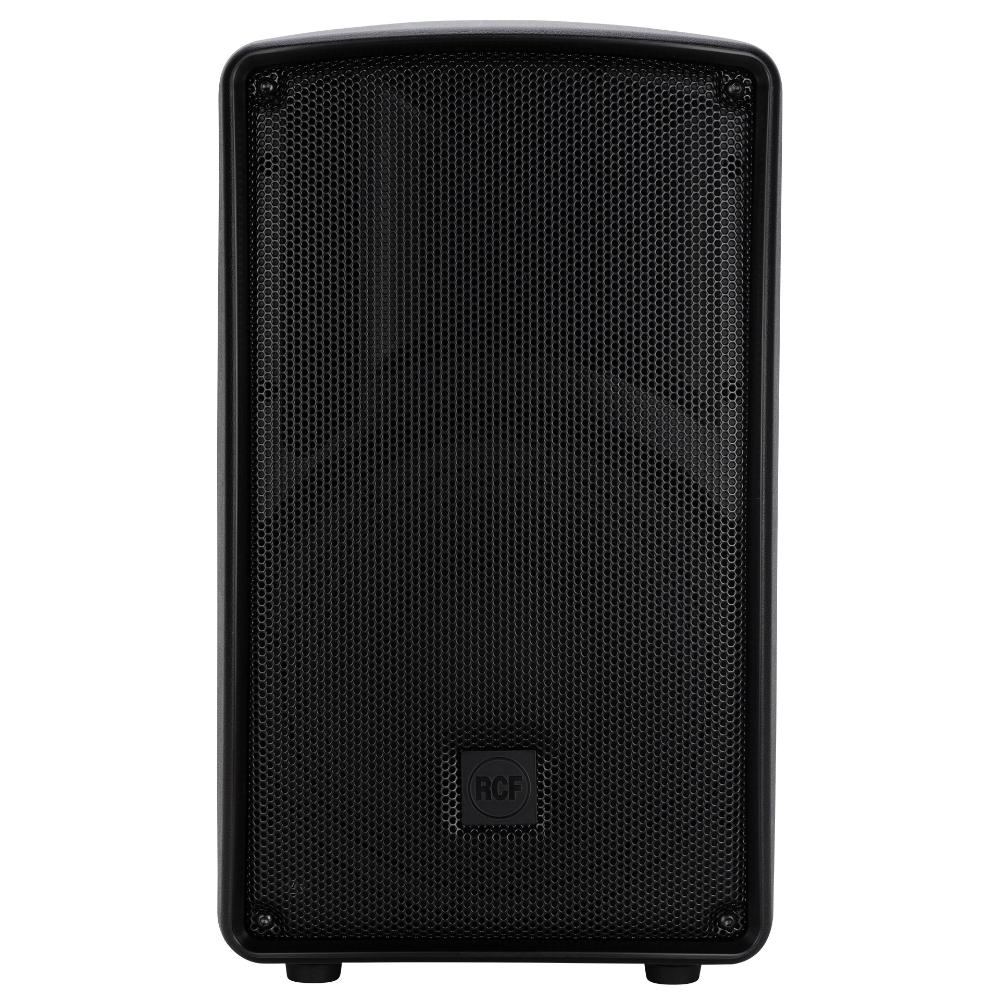

RCF HD10-A MK5

Active 800W 2-way 10" Powered Speaker

HD 10-A mk5 active speaker boosts performance with a high-power professional 10" woofer and a 1.0" HF driver, an 800W 2ch Class-D amplifier, and innovative FiRPHASE and Bass Motion Control processing. Vocals are natural, the sound is clear at long distances, SPL power is stable at very high levels. The strength of HD series speakers comes from decades of experience building gear for the touring industry, equipping this compact cabinet with power and reliability expected for life on the road. Elegantly designed, the lightweight polypropylene cabinet with internal reinforcement offers maximum strength. The speaker also includes a steel pole mount, threaded inserts for rigging, and rubber handgrips. D-LINE offers working DJs and musicians professional sound designed with music in mind.

Features:

• 128 dB Max SPL
• 800 Watts 2-way amplifier
• DSP Processing with FiRPHASE and Bass Motion Control
• 1.0” HF driver
• 10” woofer, high power, 2.0” voice coil
• 90° x 60°, wide dispersion constant directivity horn
• Silent Fan-less Class-D Amplifier
• Mylar/Ferrite driver - Kapton former coil

Specifications:
ACOUSTICAL SPECIFICATIONS

• Frequency Response: 50 Hz ÷ 20000 Hz
• Max SPL @ 1m: 128 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 60°

TRANSDUCERS

• Compression Driver: 1 x 1.0'', 1.0'' v.c
• Woofer: 10'', 2.0'' v.c

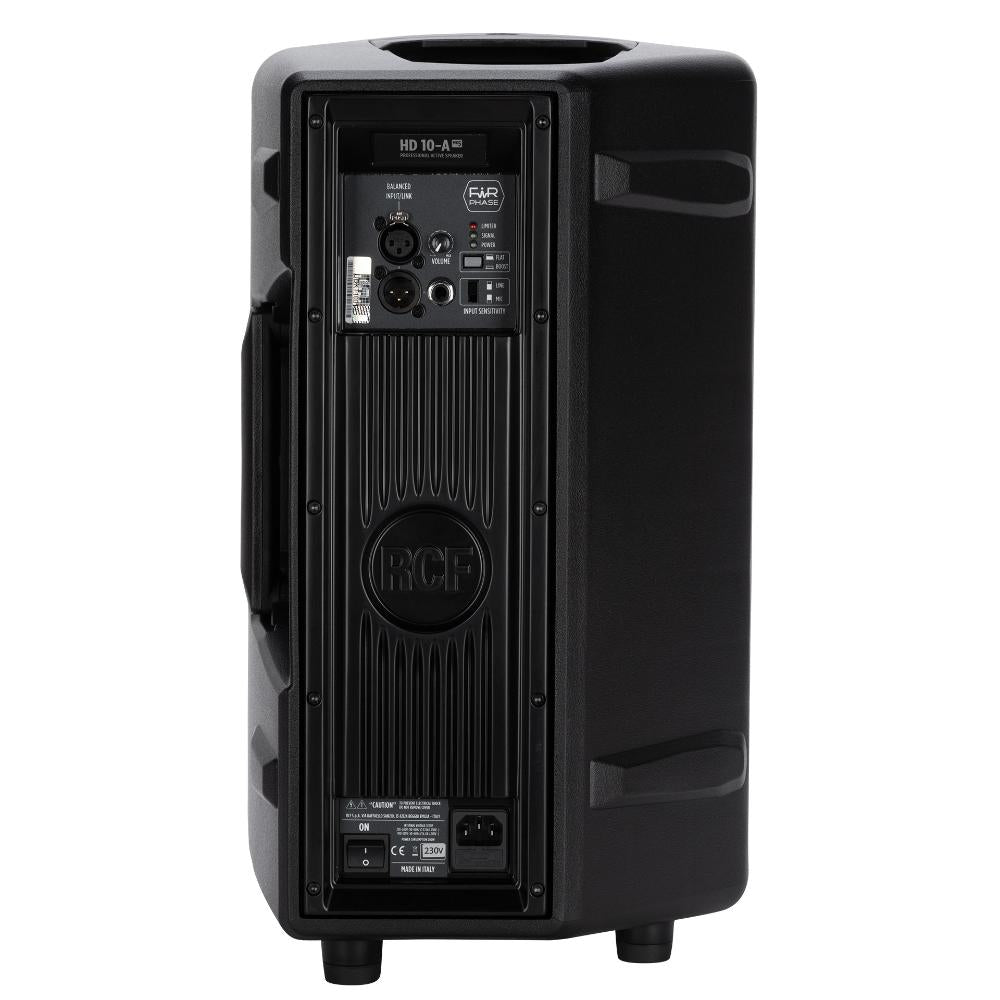

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu
• Mic. Input Sensitivity: -32 dBu

PROCESSOR SECTION

• Crossover Frequencies: 2000 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Boost, Volume, Mic/Line

POWER SECTION

• Total Power: 800 W Peak, 400 W RMS
• High frequencies: 200 W Peak, 100 W RMS
• Low frequencies: 600 W Peak, 300 W RMS
• Cooling: Convection
• Connections: VDE

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

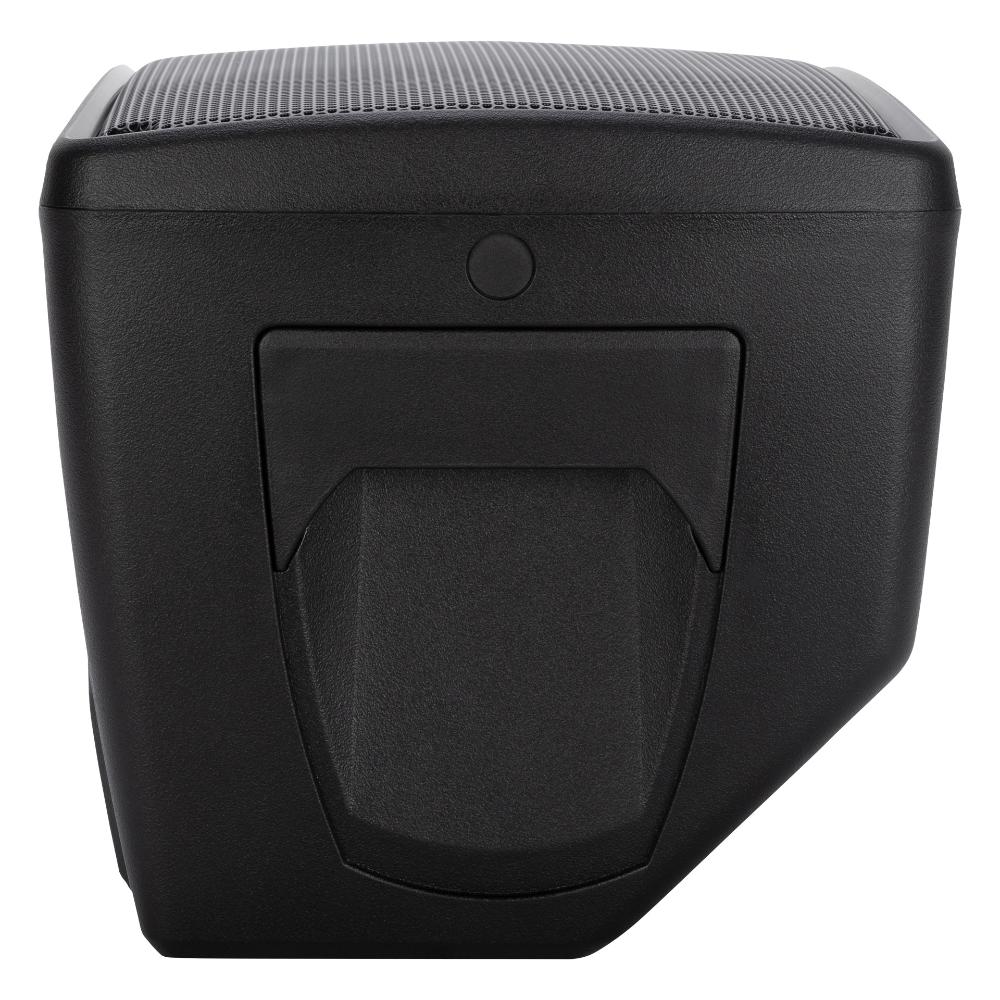

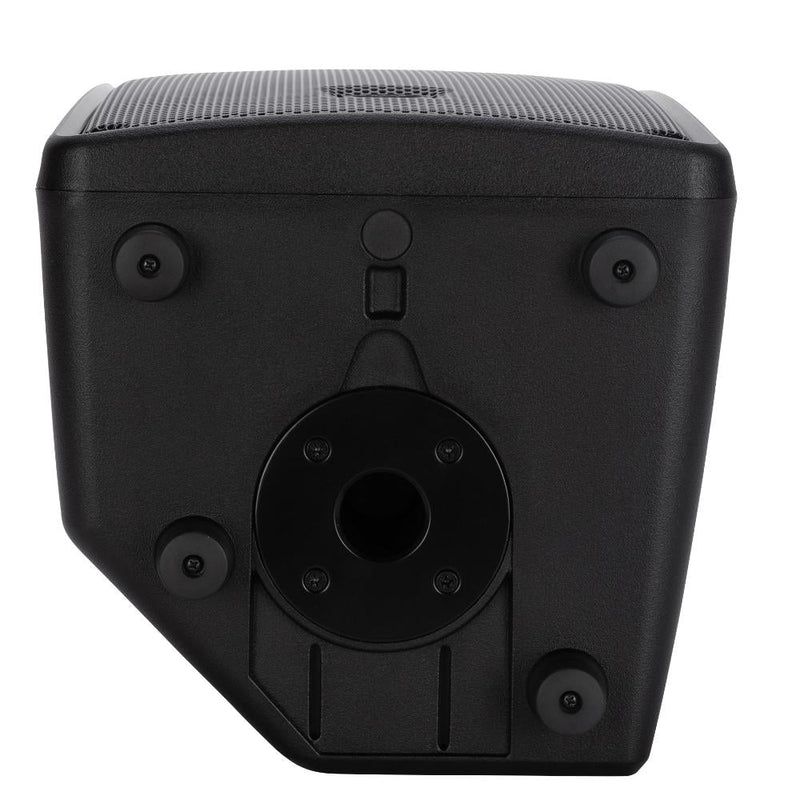

• Hardware: 1 x M10 top, 1 x M10 bottom

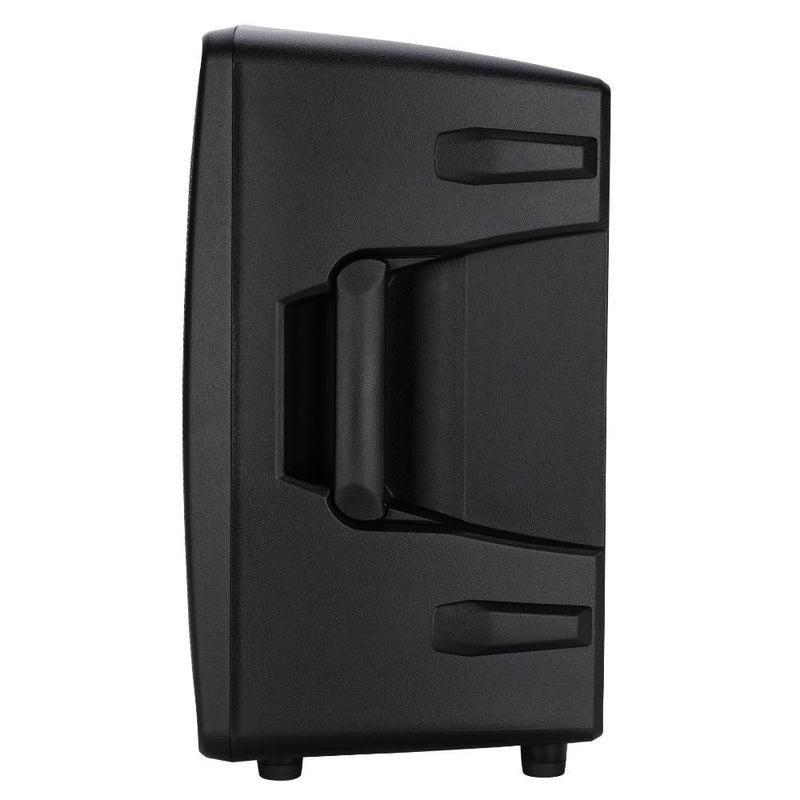

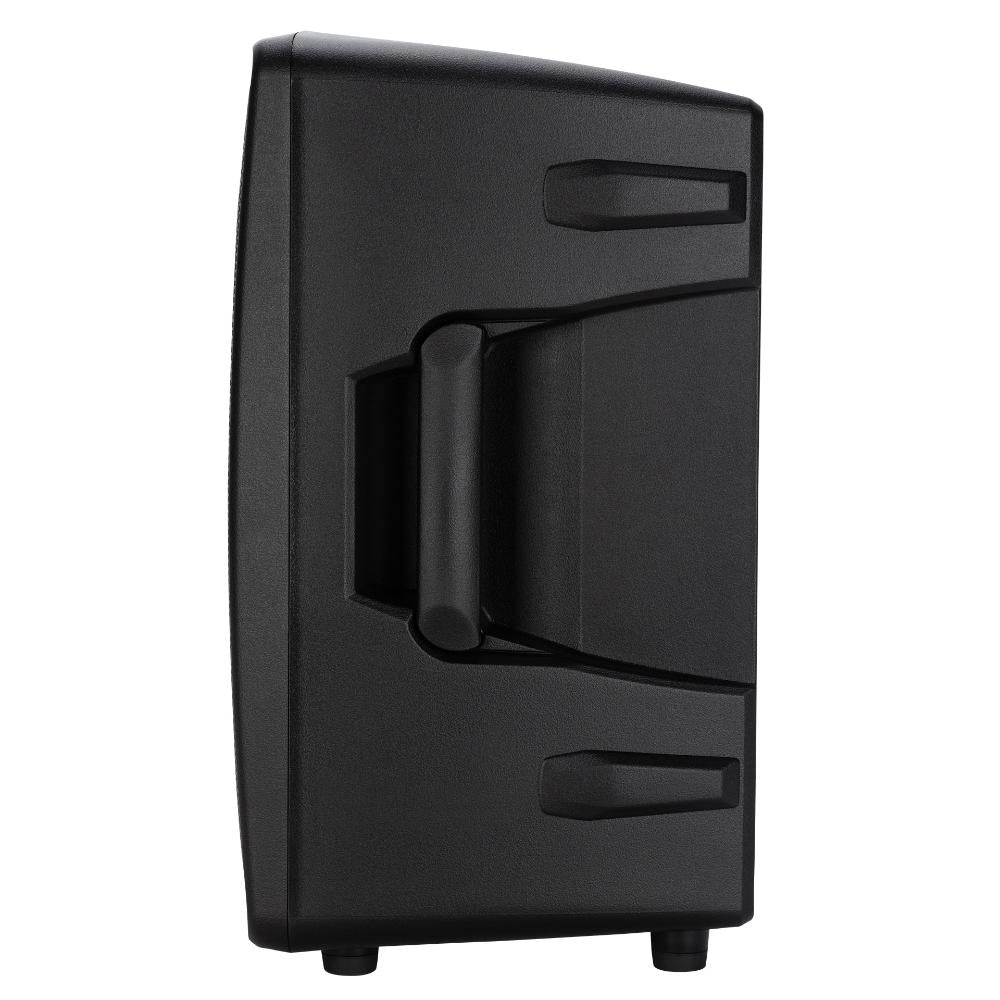

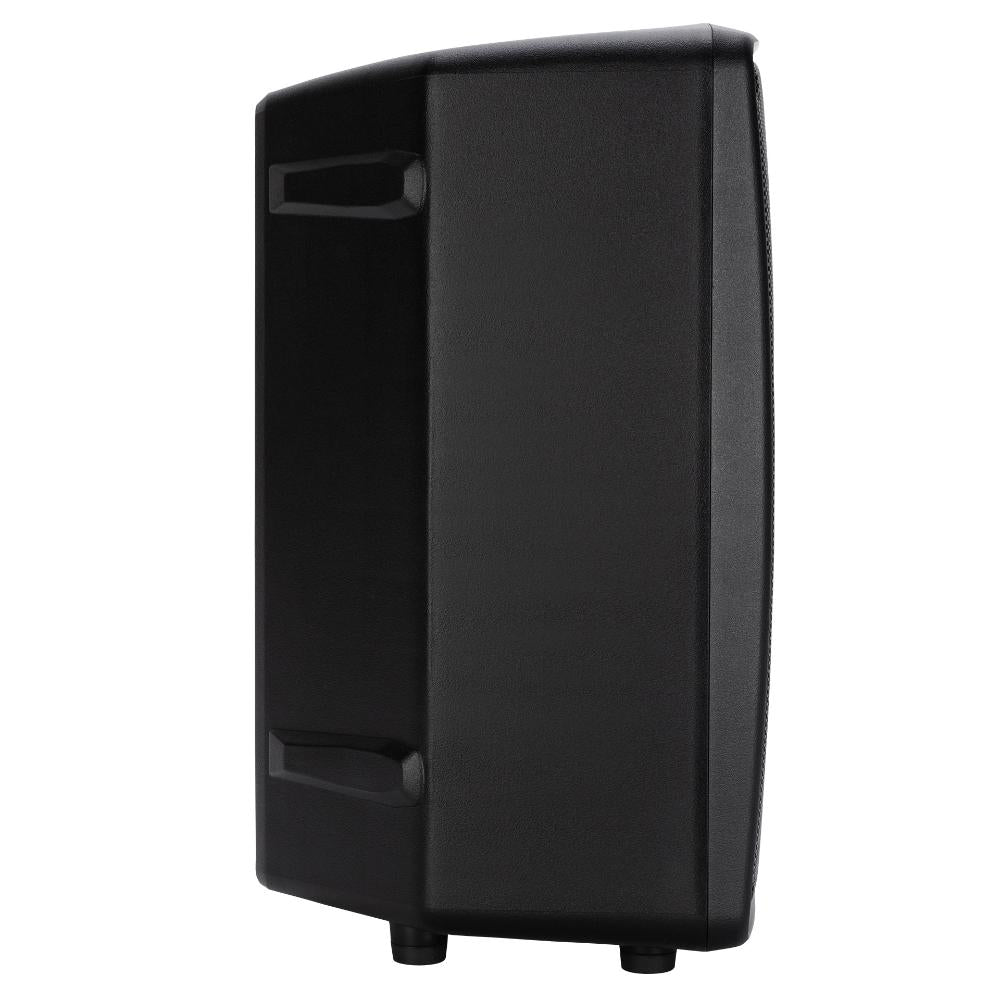

• Handles: 1 Top, 1 Side

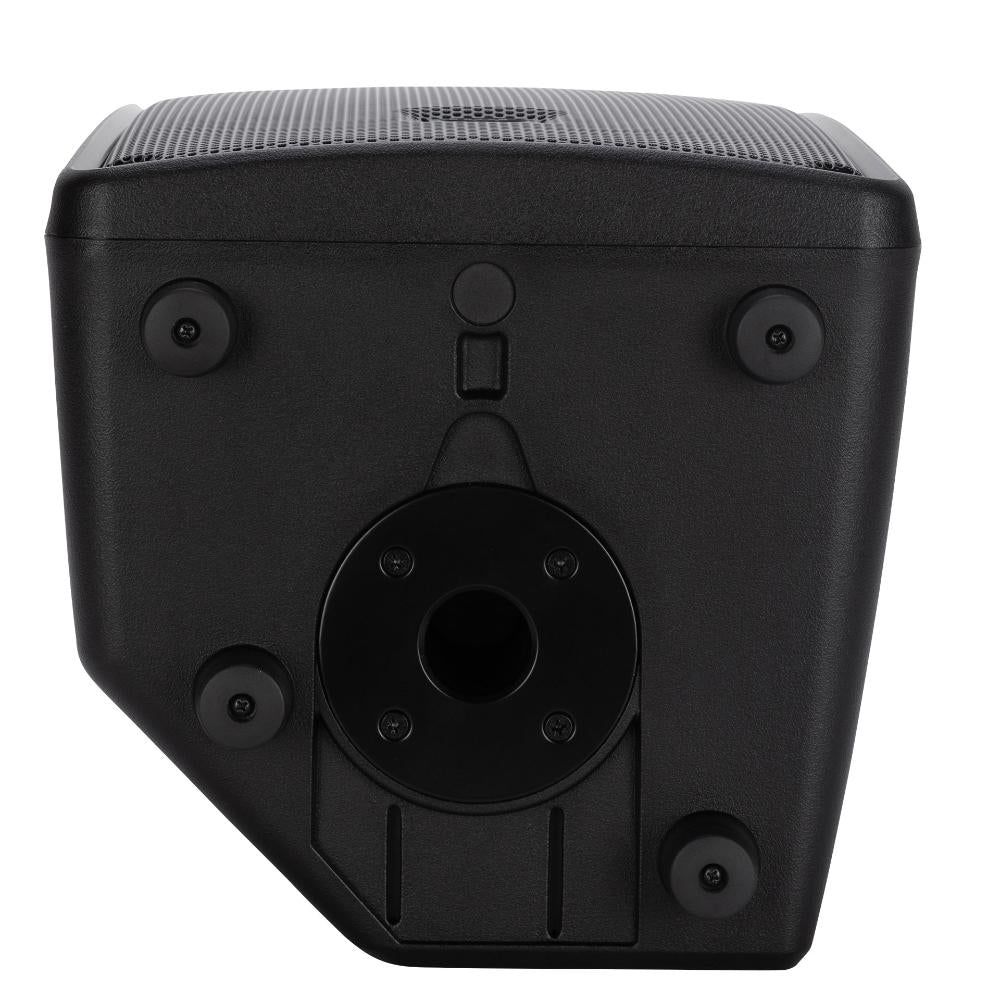

• Pole mount/Cap: Yes
• Color: Black

SIZE

• Height: 527 mm / 20.75 inches
• Width: 303 mm / 11.93 inches
• Depth: 303 mm / 11.93 inches
• Weight: 11.8 kg / 26.01 lbs
