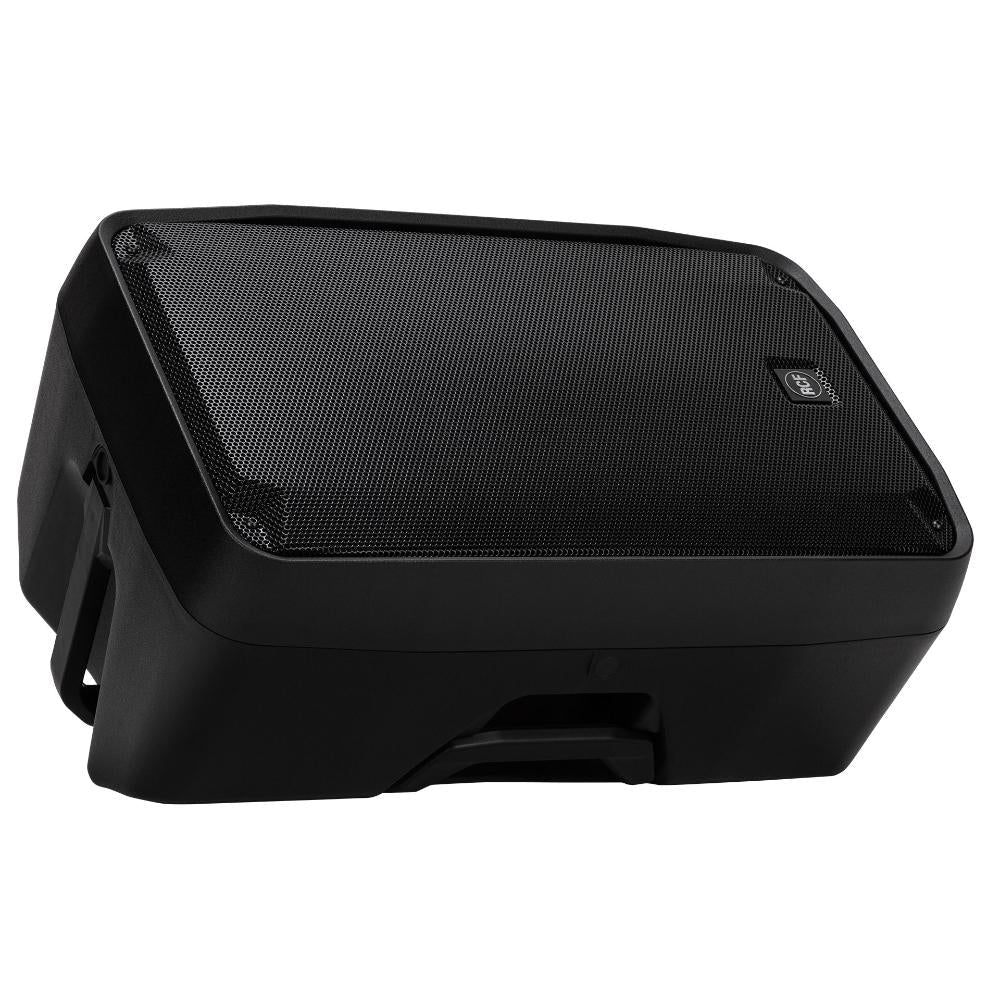

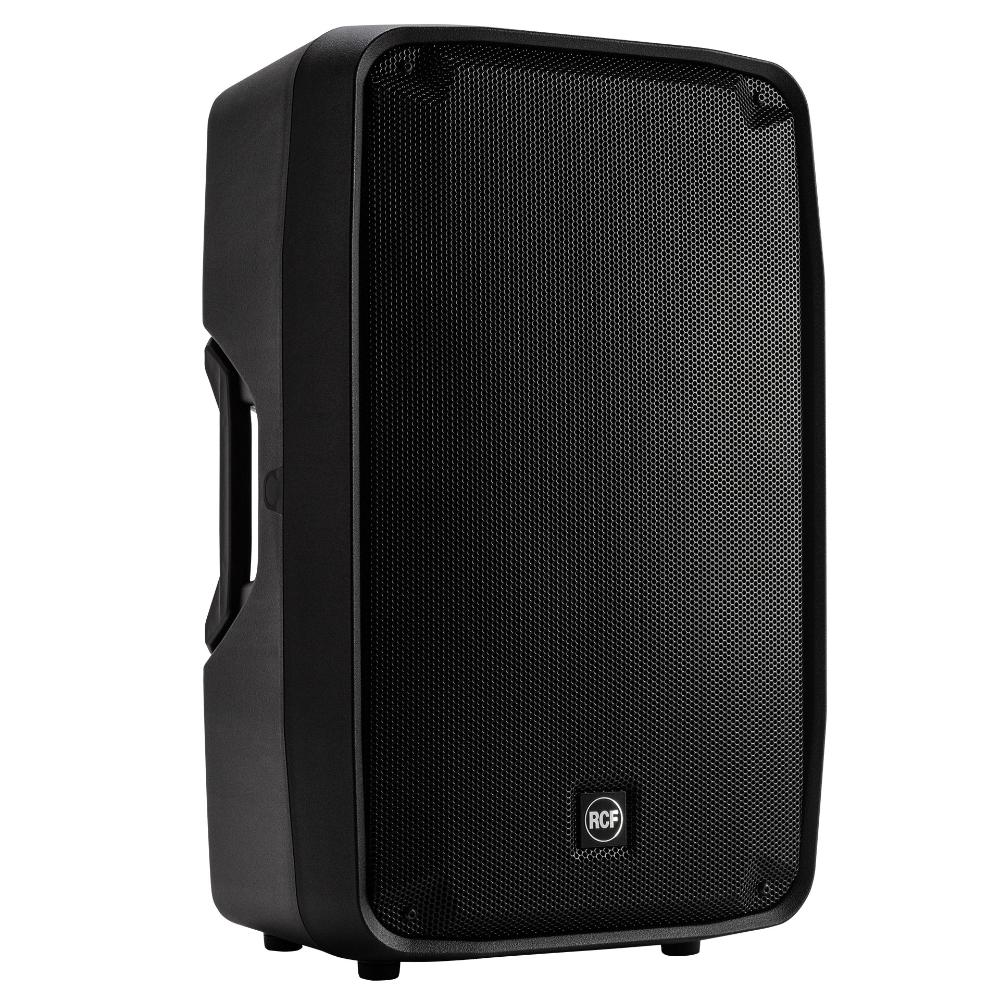

RCF HD15-A

Active 1400W 2-way 15" Powered Speaker

The HD 15-A is a unique product in its category. The professional compression driver with custom designed dome and high-power voice coil offers exceptional vocal clarity and sound projection. The 15” high power woofer offers an extremely linear response and a precise, deep low-frequency control. The amplifier delivers 1400 watts and is controlled by a powerful DSP that takes care of crossover, equalization, FiRPHASE, soft limiting and speaker protection.

Features:

• 130 dB Max SPL
• 1400 Watts 2-way peak power
• DSP Processing with FiRPHASE
• 1.0" Compression Driver, 1.75” v.c.
• 15” Woofer, high power
• Lightweight Composite Cabinet
• 90°x60°, wide dispersion constant directivity horn
• Silent Fanless Class-D Amplifier

Specifications:
ACOUSTICAL SPECIFICATIONS

• Frequency Response: 45 Hz ÷ 20000 Hz
• Max SPL @ 1m: 130 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 60°

TRANSDUCERS

• Compression Driver: 1.0'', 1.75'' v.c
• Woofer: 15'', 2.5'' v.c

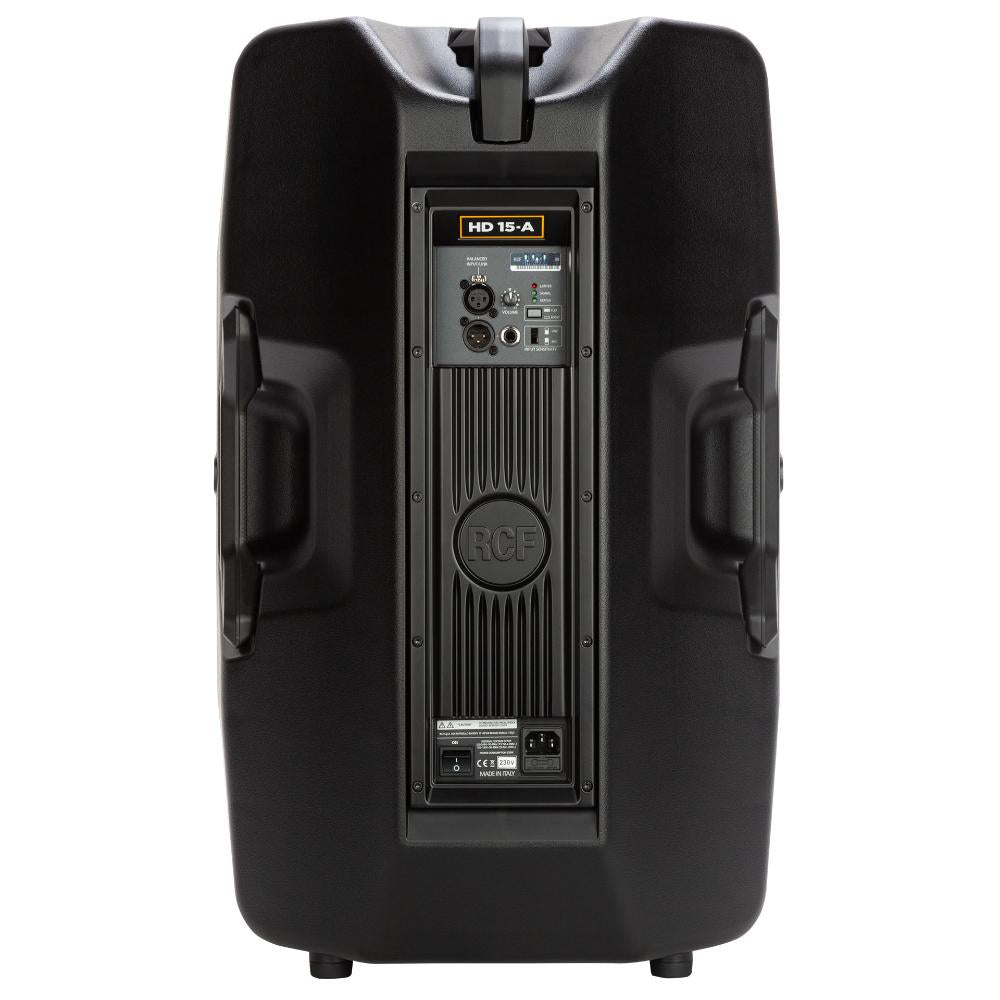

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu
• Mic. Input Sensitivity: -32 dBu

PROCESSOR SECTION

• Crossover Frequencies: 1800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, Mic/Line

POWER SECTION

• Total Power: 1400 W Peak, 700 W RMS
• High frequencies: 400 W Peak, 200 W RMS
• Low frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• Connections: VDE

PHYSICAL SPECIFICATIONS

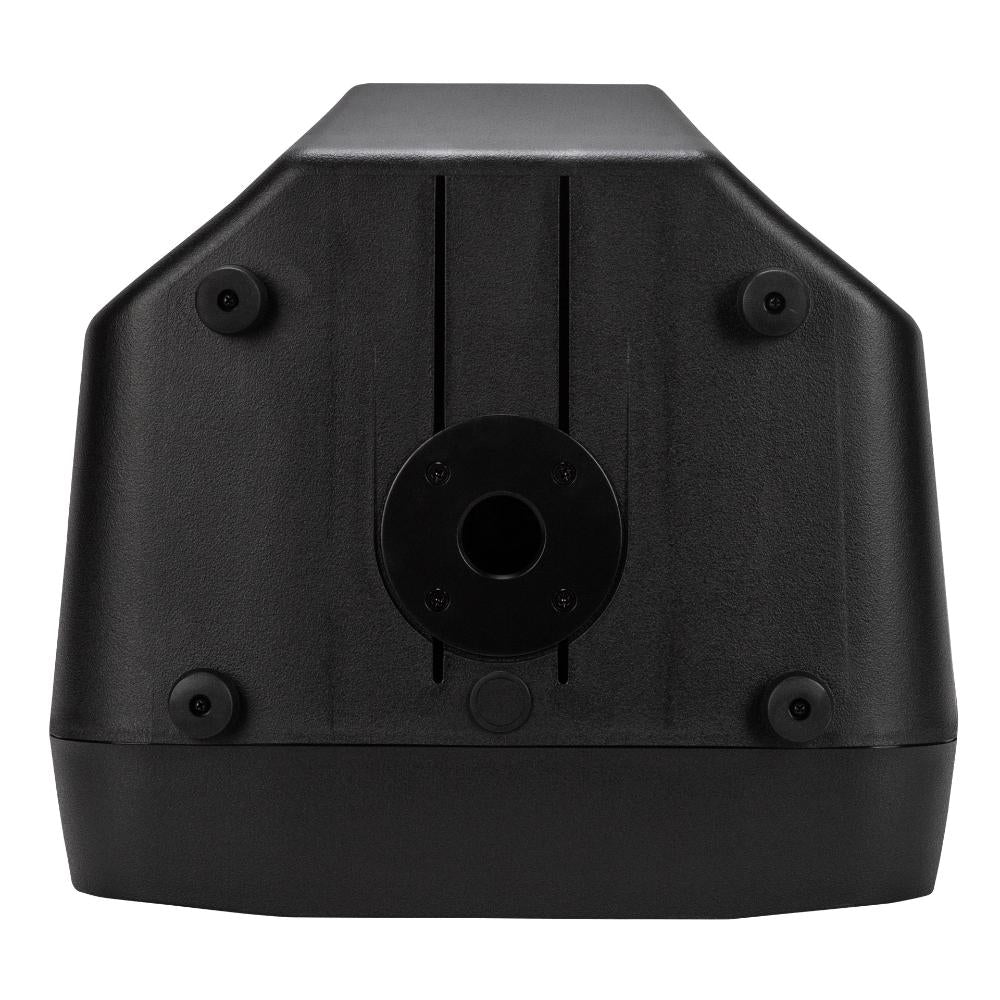

• Hardware: 1 x M10 top, 1 x M10 bottom, 2 x M10 side

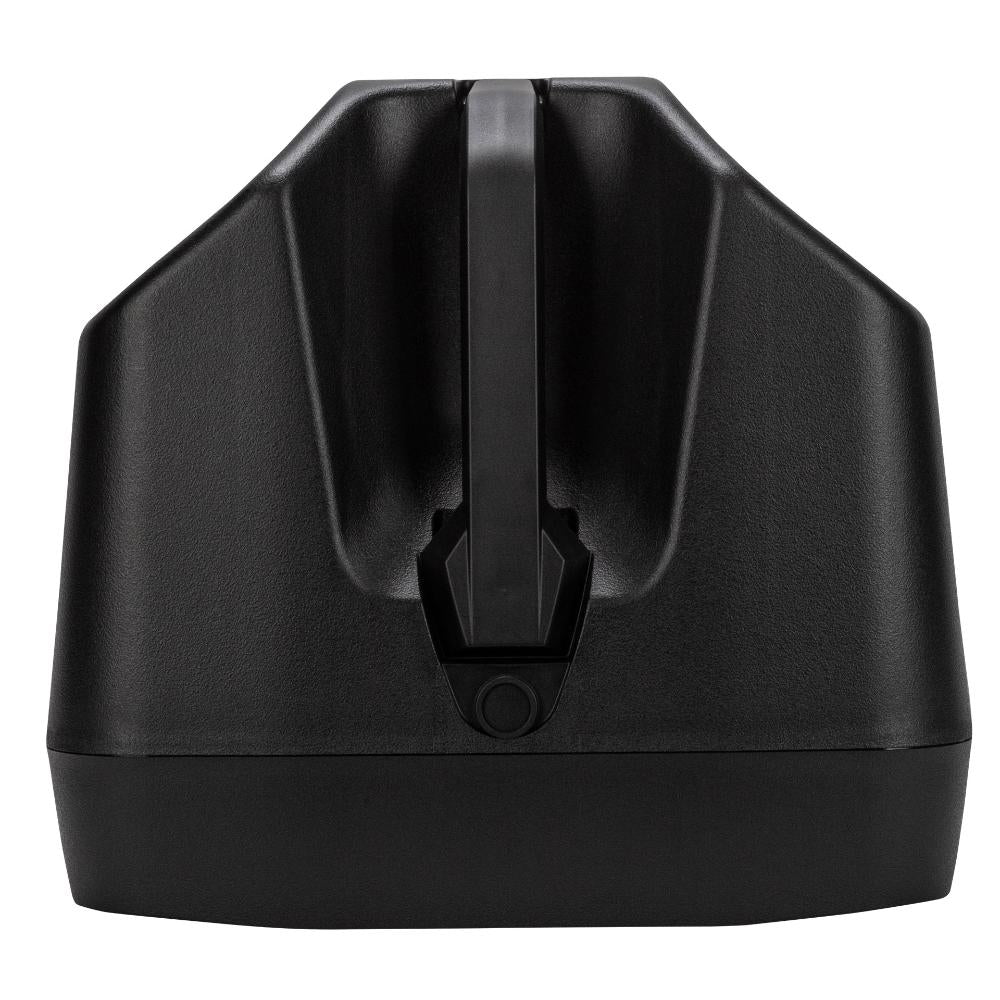

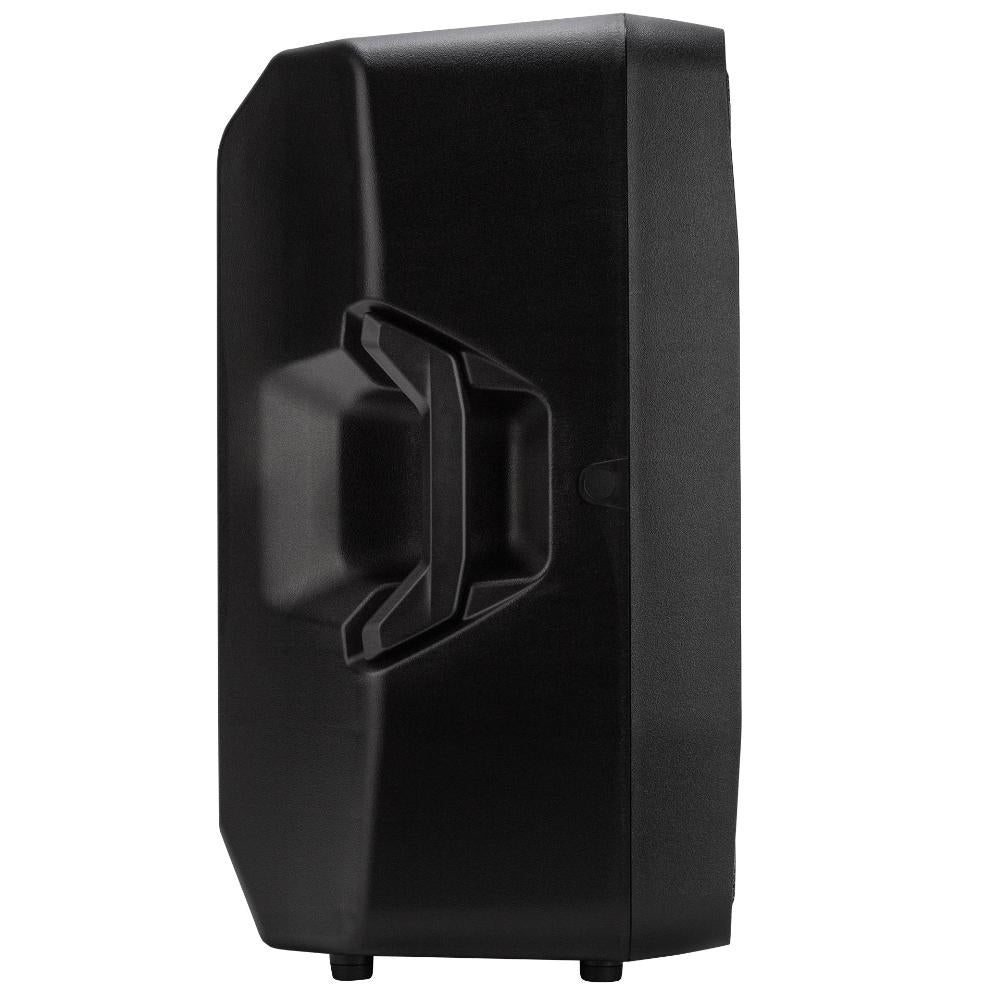

• Handles: 1 Top, 2 Side
• Color: Black

SIZE

• Height: 714 mm / 28.11 inches
• Width: 442 mm / 17.4 inches
• Depth: 397 mm / 15.63 inches
• Weight: 22 kg / 48.5 lbs
