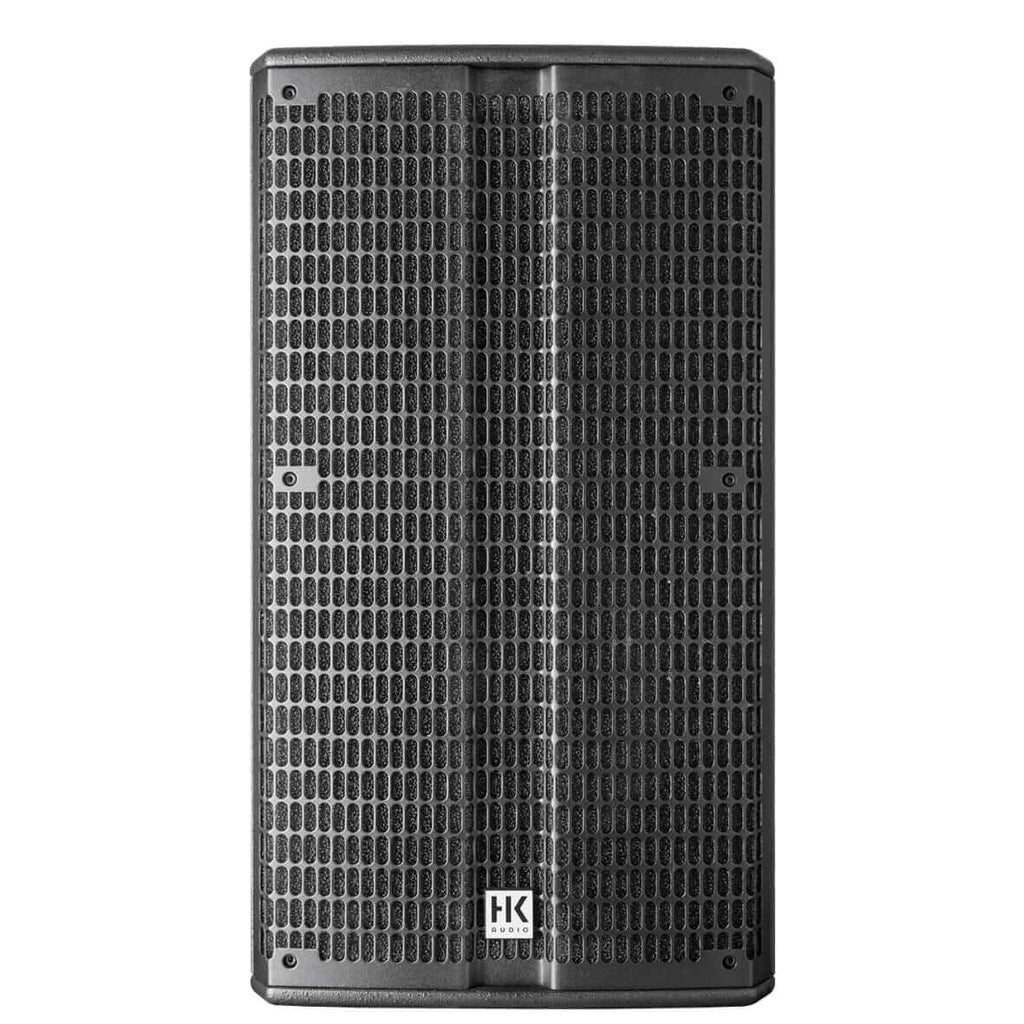

L5 112 XA – THE NEW PERFORMANCE CLASS
The 12?/1? model is housed in a multipurpose enclosure tuned to deliver the highest sound pressure levels (136 dB SPL peak). A switchable filter configures it for use as a top unit (adding long range capability) in systems with Linear SUB 2000/ 2000 A units. The L5 112 XA also makes an excellent monitor with a plenty of gain before feedback. Its rotatable 60° x 40° CD horn provides the right coverage pattern for each scenario.
- Application: Mid/High Unit, Monitor
- 1000 Watt Class-D (650 W + 350 W, biamped)
- 12? Speaker with 2,5? voice coil
- 1? Driver with 1,75? voice coil
- 136 dB Max SPL Peak @ 10% THD (halfspace)
- CD Horn (60° x 40°) , rotatable
- Rugged hybrid (birch multiplex /MDF) housing
- 2 separate Inputs
- EQ switch (Top / Monitor)
