Description

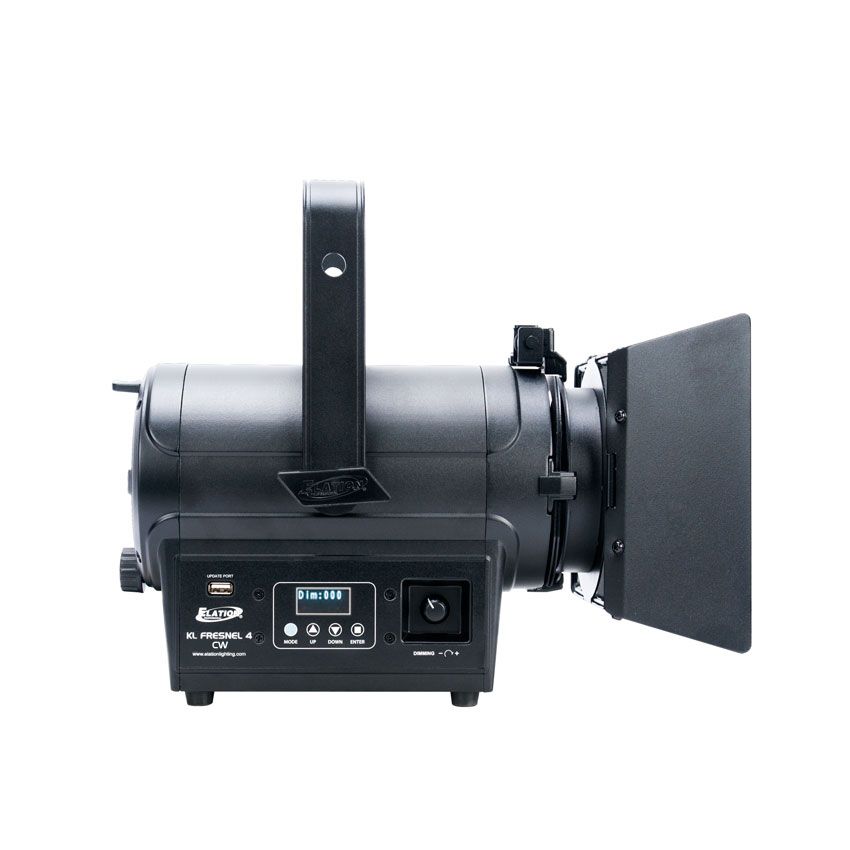

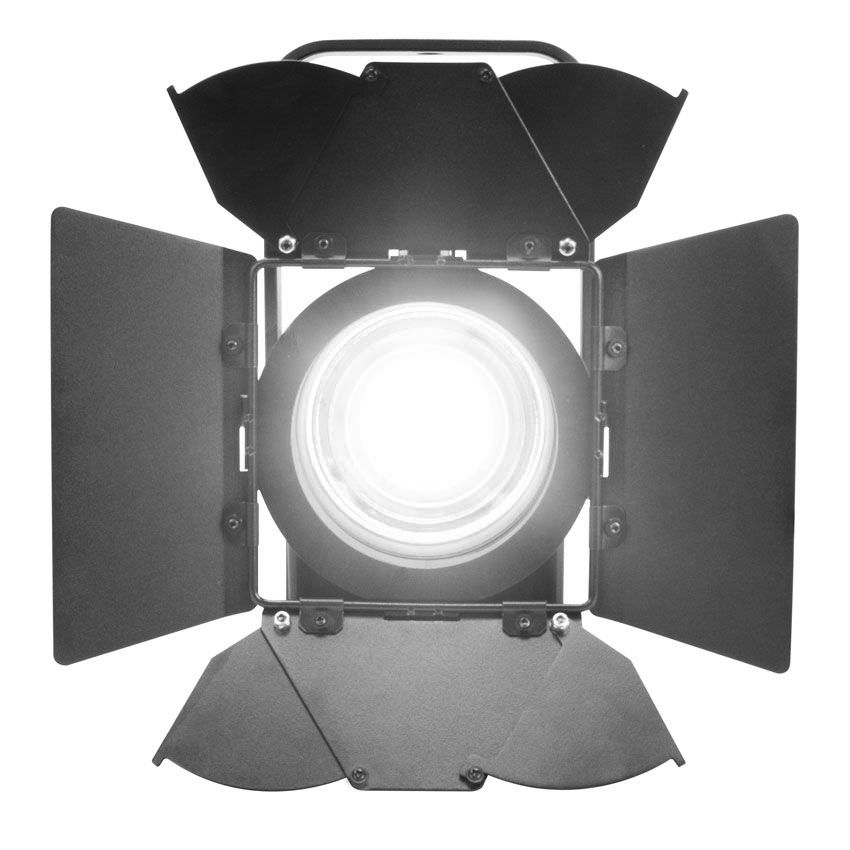

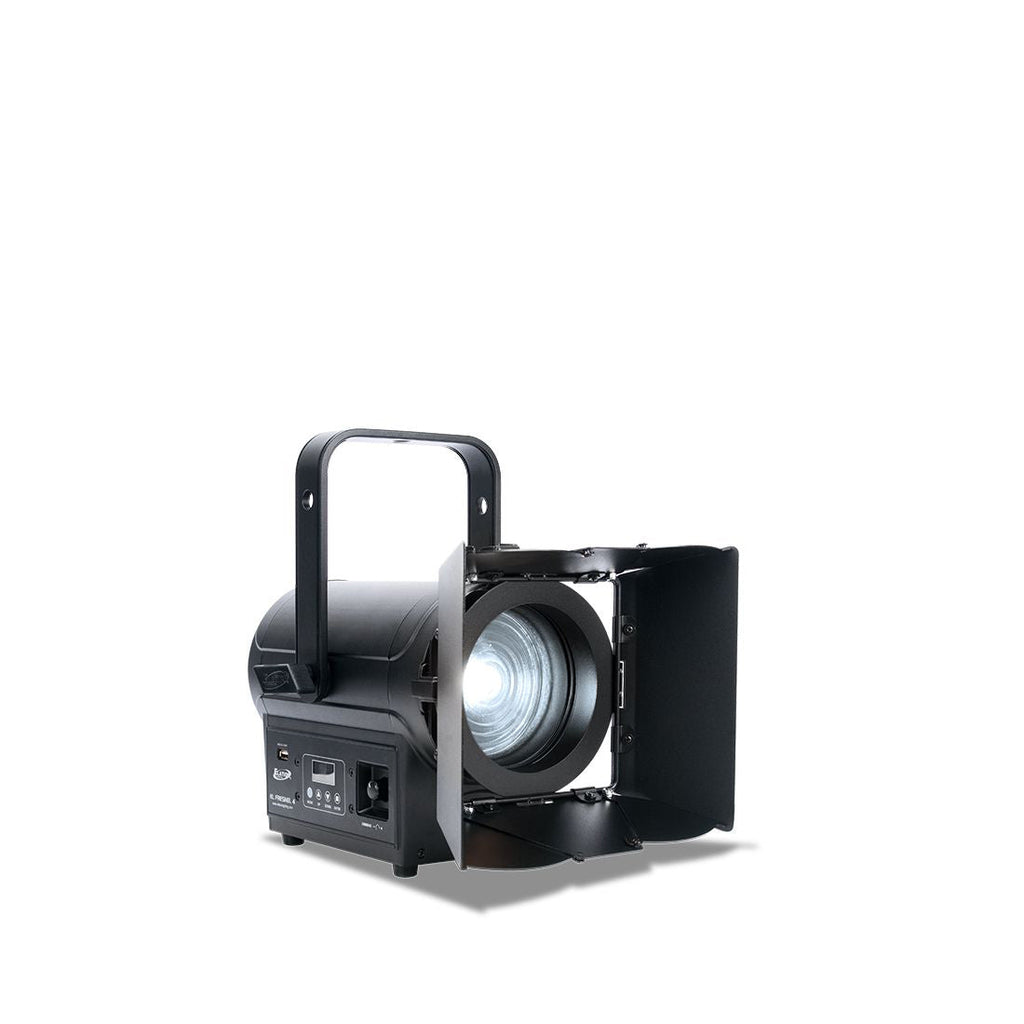

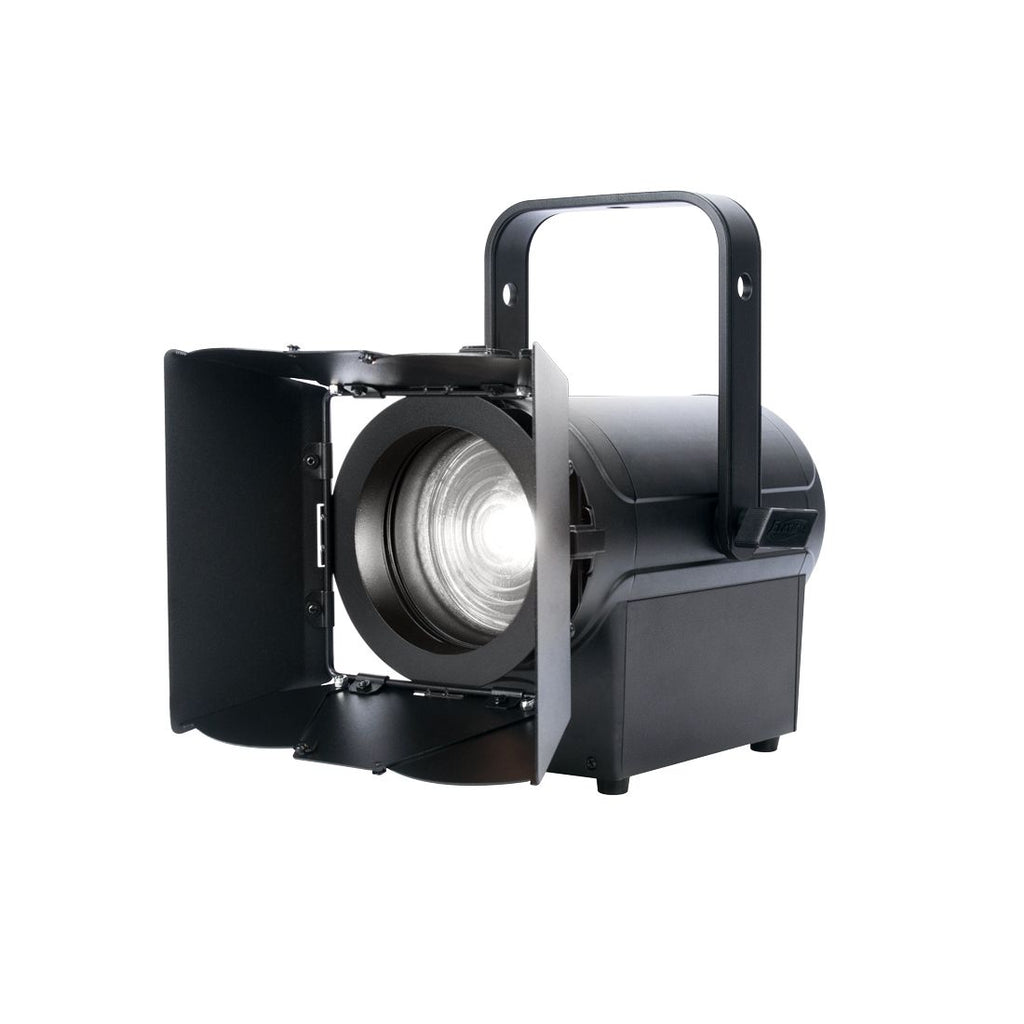

KL FRESNEL 4CW™ is a 50W 5,600K >97CRI Cool White LED fresnel, producing over 2,300 total lumen output. Features include 14° to 33° wide manual zoom, manual and DMX controlled dimmer and shutter, rotary dimmer and zoom dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and FILM, RDM (remote device management) protocol support, 5pin DMX and IP65 Locking Power Cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating barn doors (included), and a 3 clamp position adjustable mounting yoke.
Features:
SOURCE
50W Cool White LED Engine 5,600K, 97CRI
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
2300+ Total Lumen Output
3,753 LUX 349 FC @ 9.8’ (3m) (Min. Zoom)
814 LUX 76 FC @ 9.8’ (3m) (Max. Zoom)
Zoom Range 14° - 33°
Beam Angle 14° - 32.9°
Field Angle 22.1° - 51.7°
EFFECTS
Manual Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
5,600K Cool White LED
CONTROL / CONNECTIONS
Manual and DMX Controlled Dimmer and Shutter
Dimmer Rotary Dial
(5) DMX Channel Modes (1 / 2 / 3 / 4 / 5)
4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)

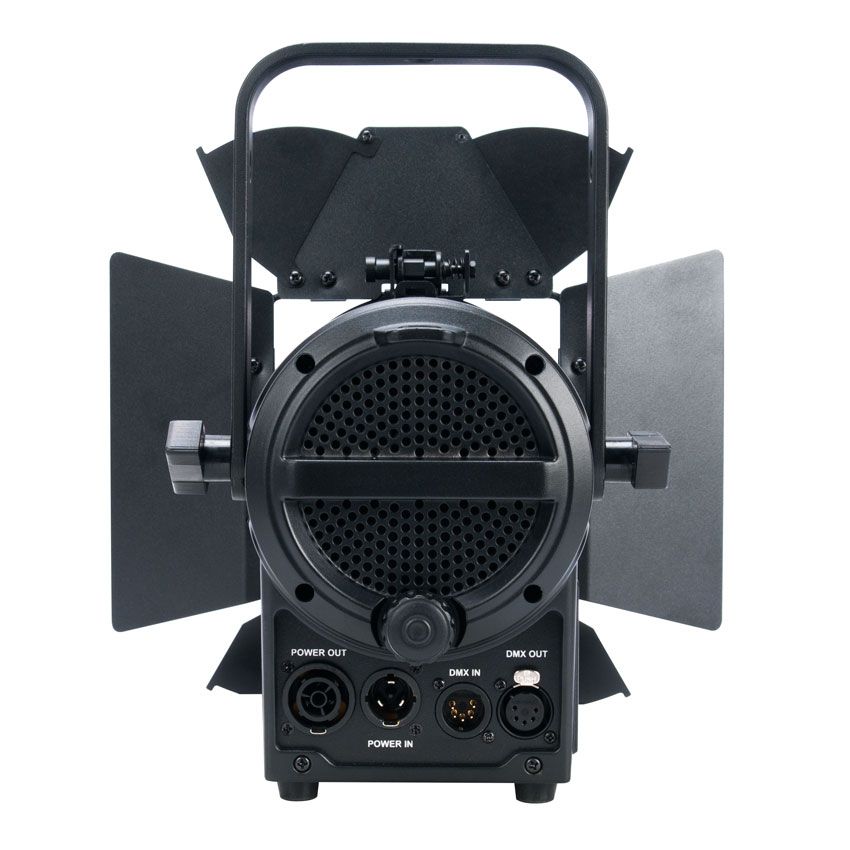

5pin DMX and IP65 Locking Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 9.9” (251mm)
Width: 7.9” (201mm)
Vertical Height: 11.4” (289mm)
Weight: 9.0 lbs. (4.08 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
50W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
Power Linking: 12Pcs @ 110V / 27Pcs @240V
BTU/hr (+/- 10%) 157
INCLUDED ITEMS
Gel Frame and Rotating Barn Doors
IP65 Locking Power Cable
Barn Doors
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
Features:
- 5,600K Cool White LED Fresnel Luminaire
- 50W Single Source LED
- Manual and DMX Controlled Dimming
- Quick Single Press Light Output for Focusing
- 14° - 33° Manual Zoom
- Including 8-Leaf Barn Doors and Gel Frame Holder
- Adjustable Refresh Frequency
- Silent Operation
- Variable Dimming Curves, Dim Modes and Dimming Delays
- Flicker Free Operation for Broadcast TV and Film
- RDM (Remote Device Management)
- 3 Clamp Position Adjustable Mounting Yoke
SOURCE
50W Cool White LED Engine 5,600K, 97CRI
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
2300+ Total Lumen Output
3,753 LUX 349 FC @ 9.8’ (3m) (Min. Zoom)
814 LUX 76 FC @ 9.8’ (3m) (Max. Zoom)
Zoom Range 14° - 33°
Beam Angle 14° - 32.9°
Field Angle 22.1° - 51.7°
EFFECTS
Manual Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
5,600K Cool White LED
CONTROL / CONNECTIONS
Manual and DMX Controlled Dimmer and Shutter
Dimmer Rotary Dial
(5) DMX Channel Modes (1 / 2 / 3 / 4 / 5)
4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)
5pin DMX and IP65 Locking Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 9.9” (251mm)
Width: 7.9” (201mm)
Vertical Height: 11.4” (289mm)
Weight: 9.0 lbs. (4.08 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
50W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
Power Linking: 12Pcs @ 110V / 27Pcs @240V
BTU/hr (+/- 10%) 157
INCLUDED ITEMS
Gel Frame and Rotating Barn Doors
IP65 Locking Power Cable
Barn Doors
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
