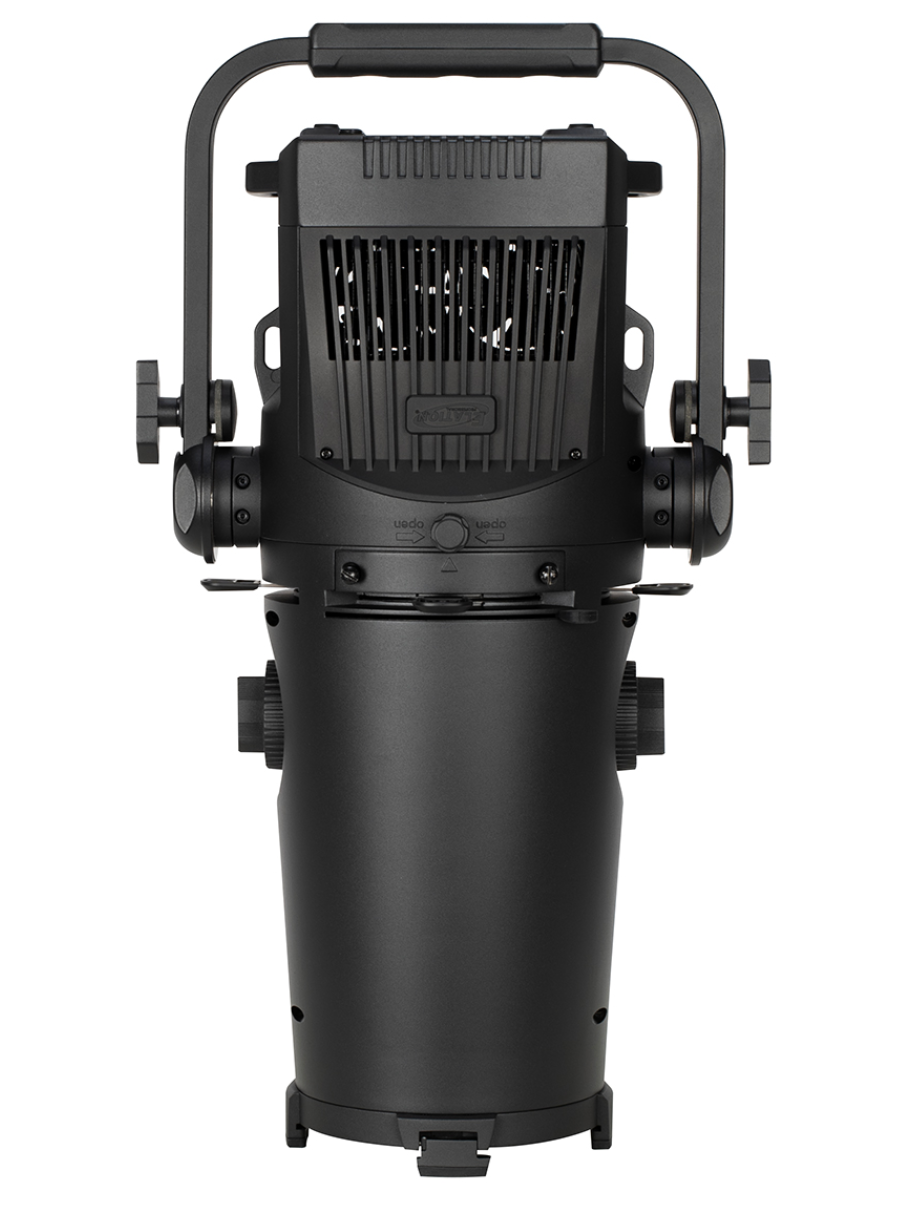

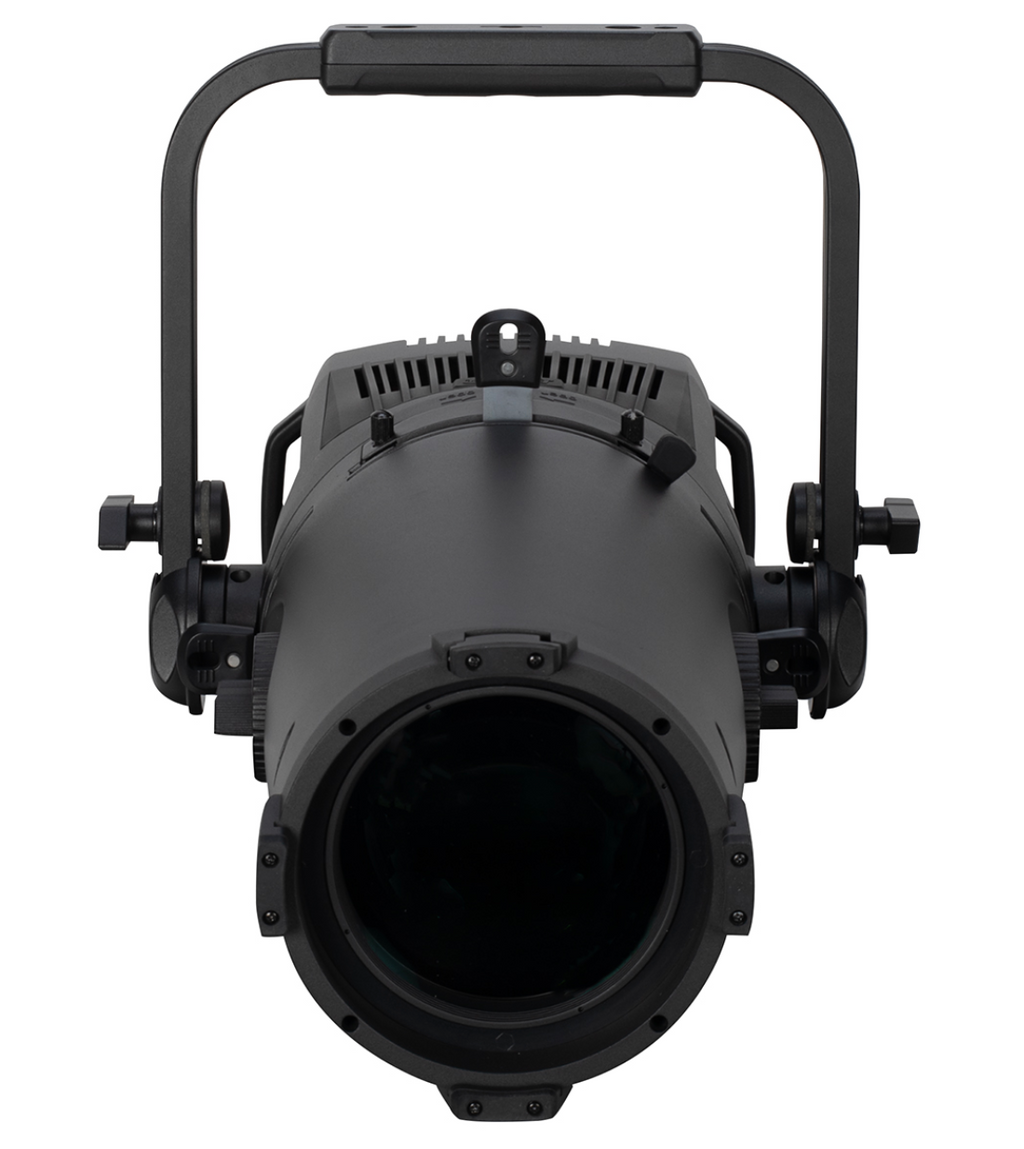

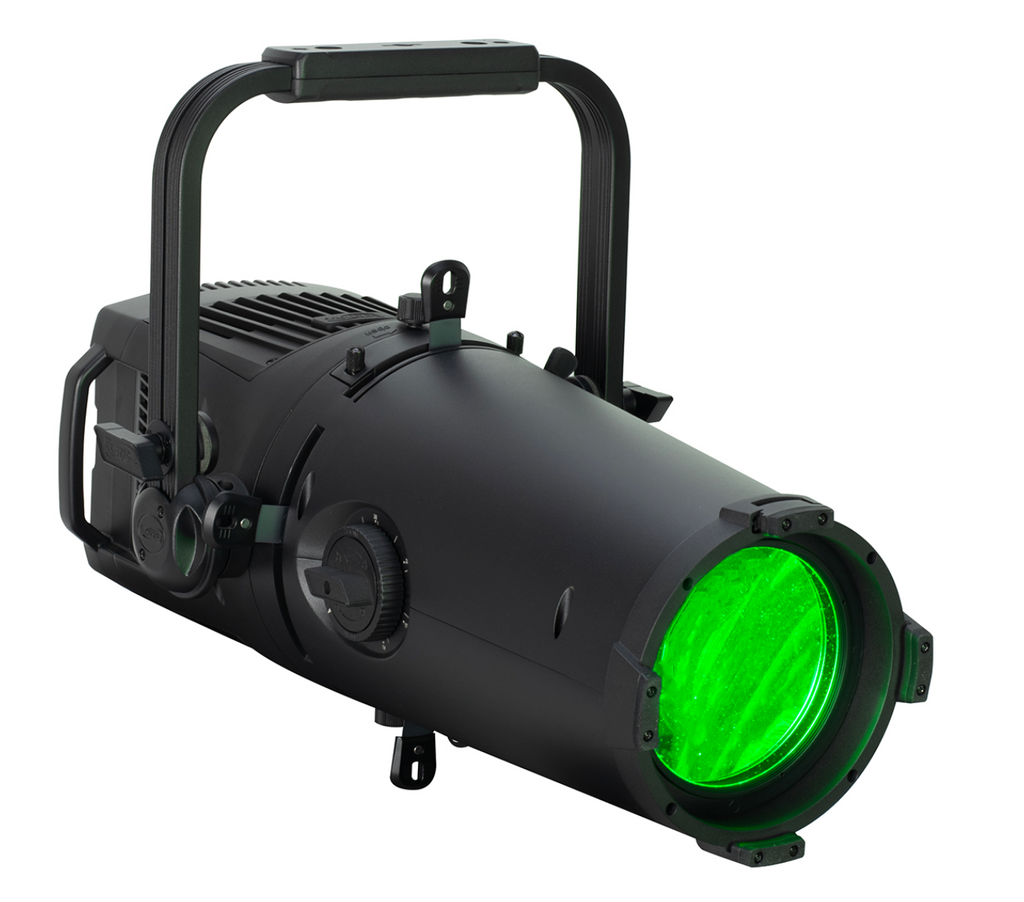

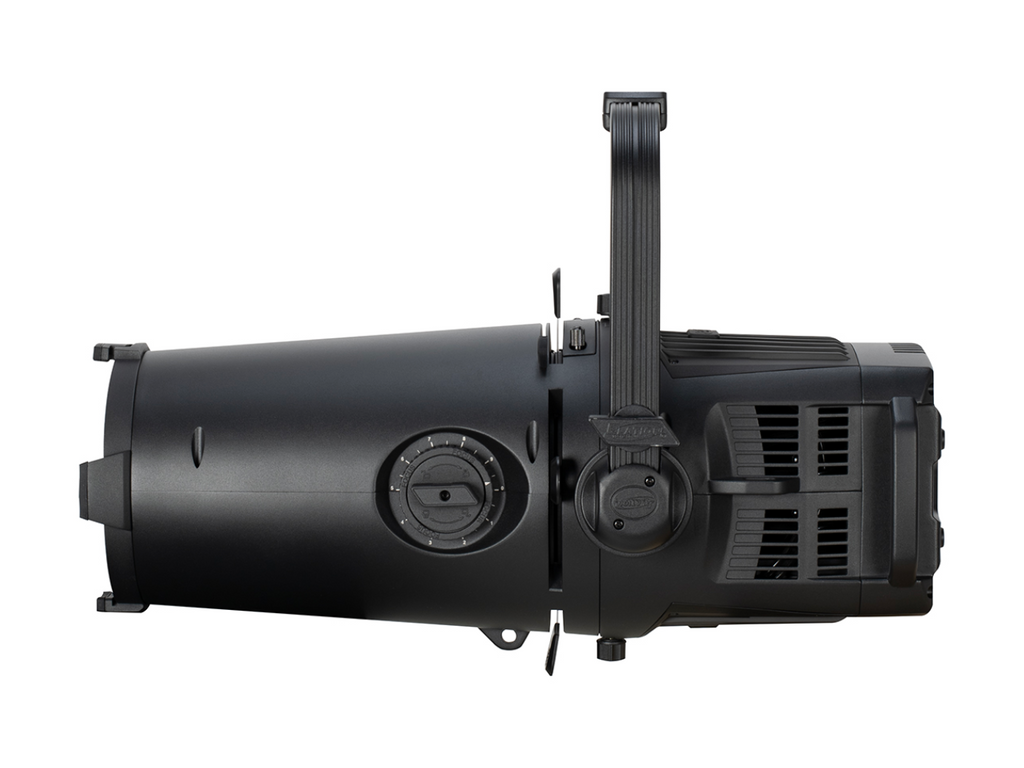

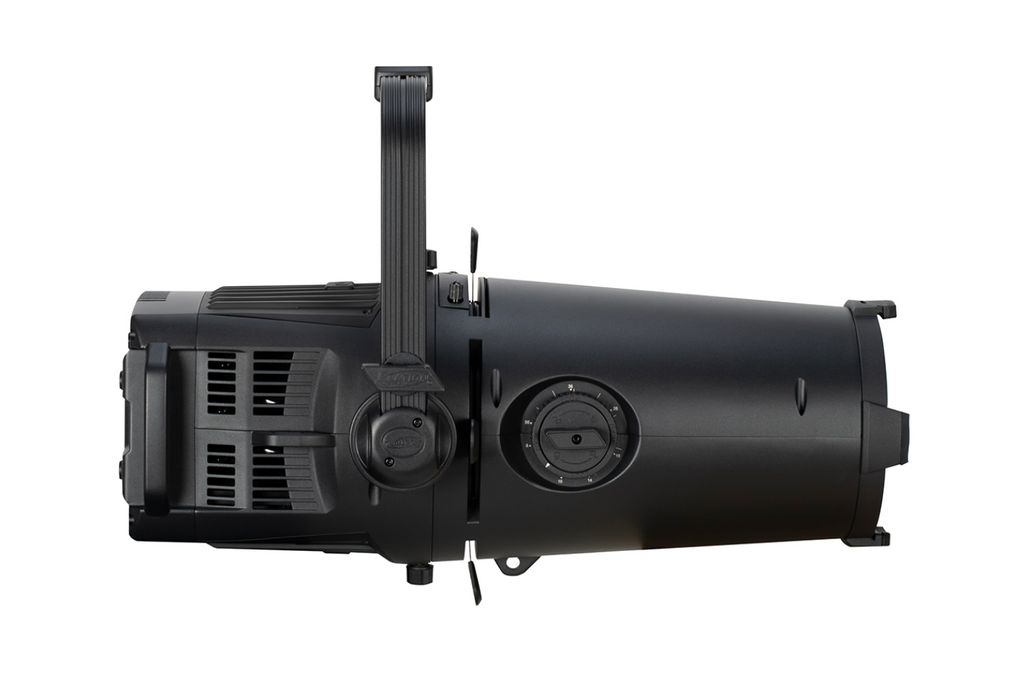

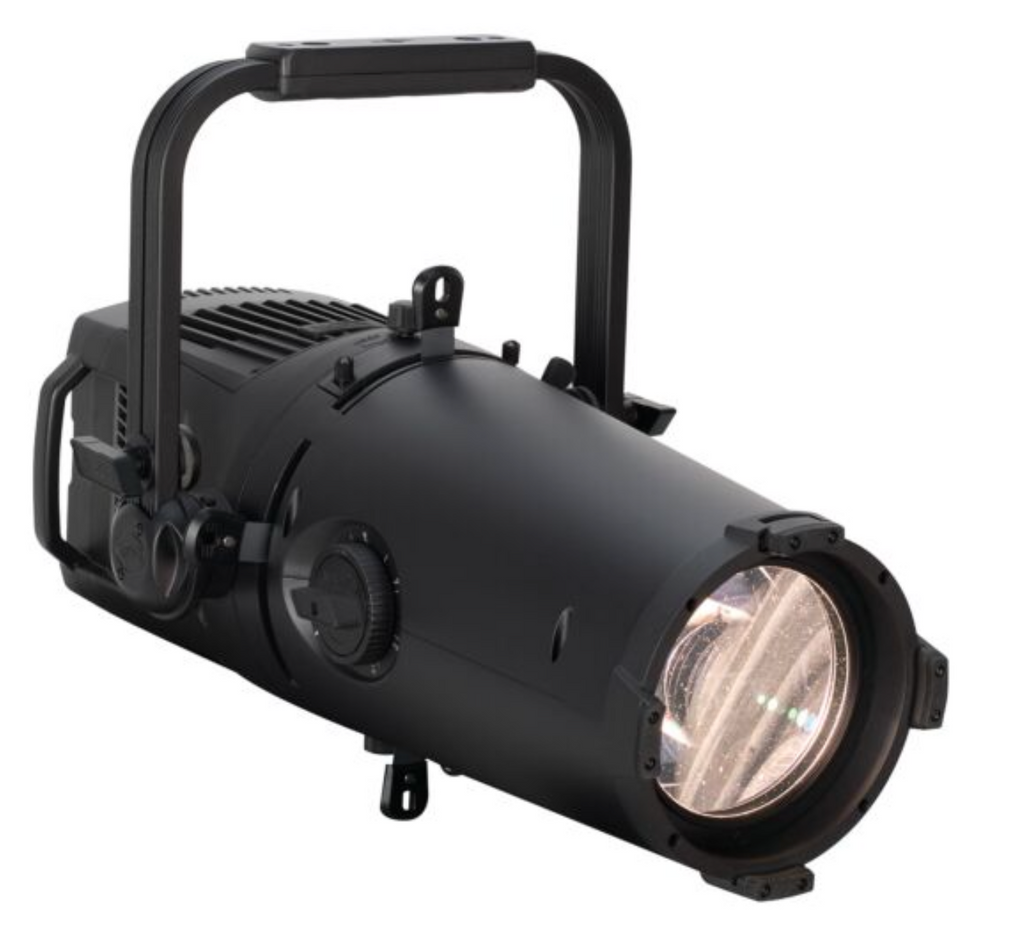

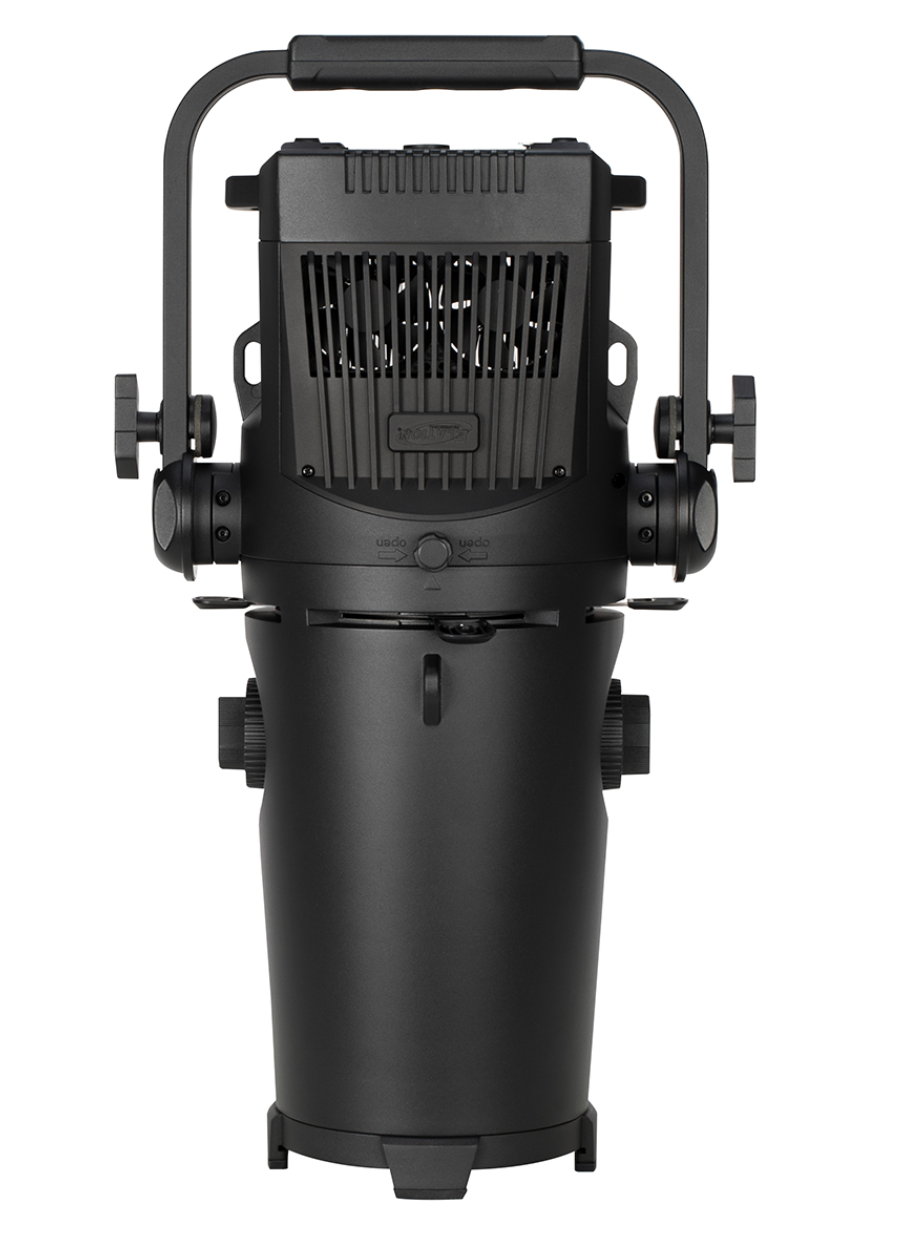

KL Profile FC 305W Full Color Spectrum LED Profile

The KL PROFILE FC™ is a manual LED framing fixture designed for a wide array of precision lighting applications. With an integrated manual zoom range of 6 to 50 degrees, the fixture requires no additional lens tubes, reducing cost, complexity and providing excellent flexibility for any theater, performance venue, or show. The integrated manual Iris allows further beam control.

The 93.5 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources with a power of 305W. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment provides the designer with immediate access to the impressive LED color array. Exceptionally quiet, the fixture offers enhanced fan controls down to Elation’s Mute Mode which disables the internal cooling fan.

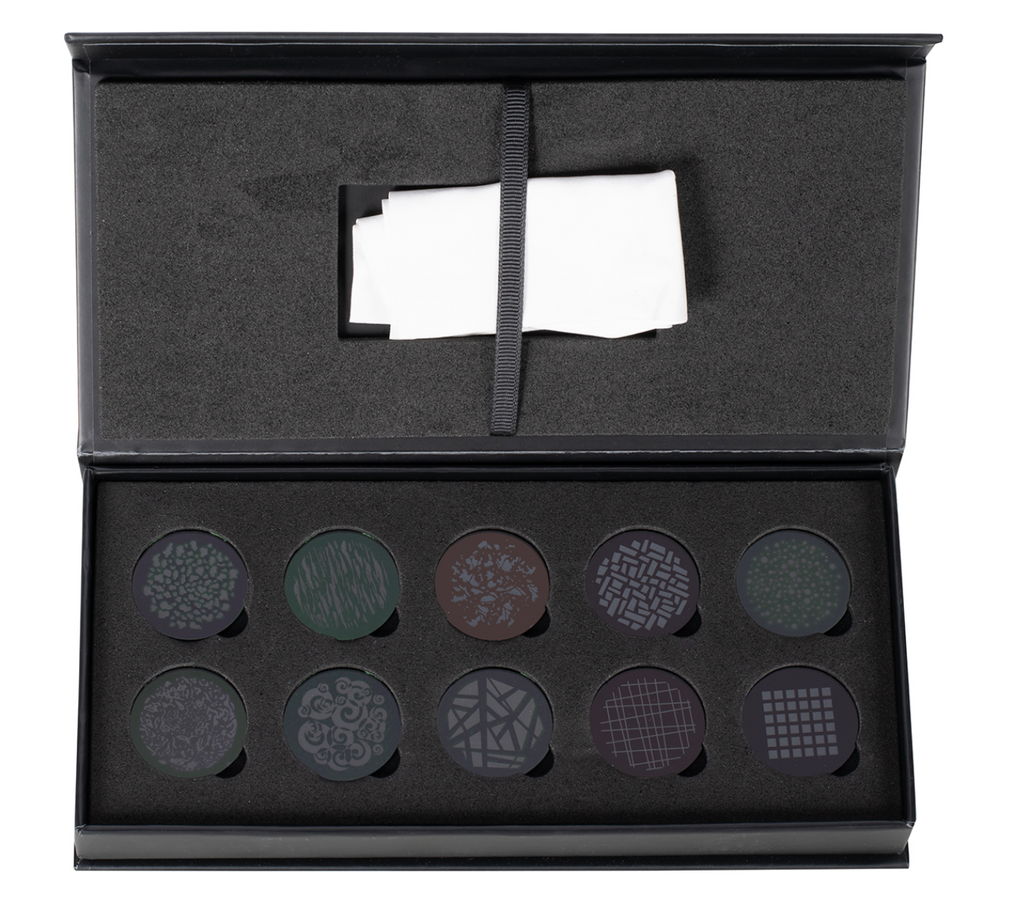

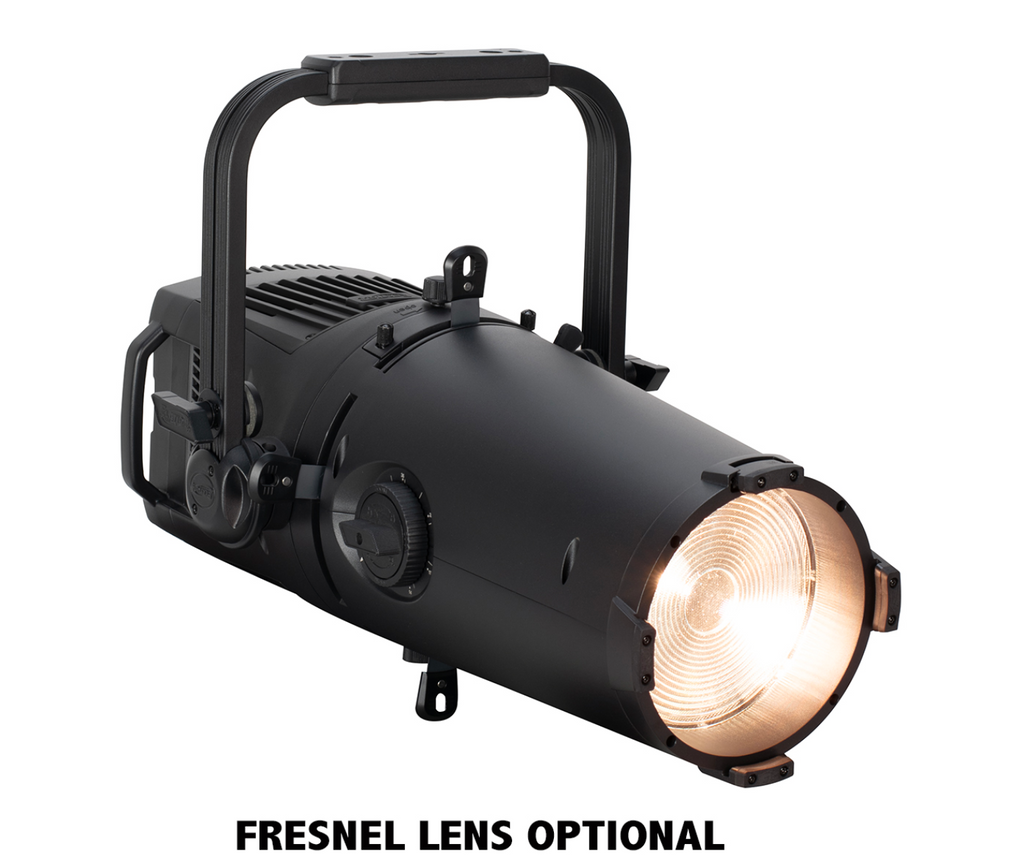

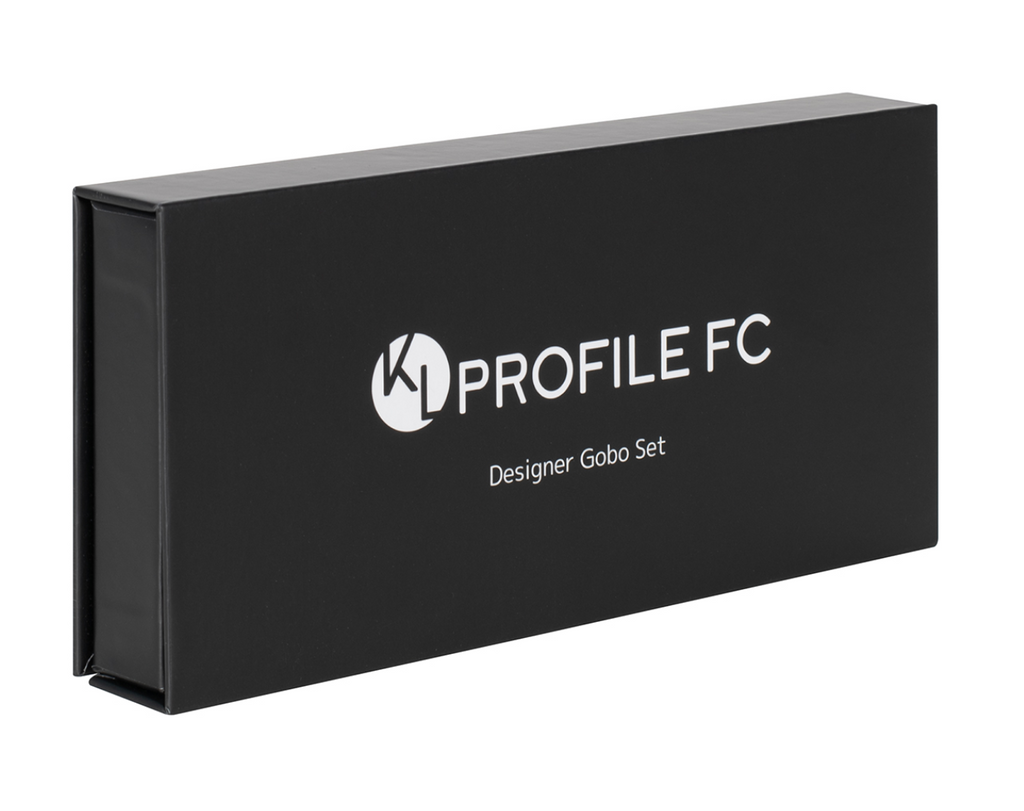

For ease of use, the fixture contains a 16-bit rotating/indexing gobo slot and is shipped with the KL Profile Designer Gobo Set, containing 10 high-resolution glass gobos. The gobo slot is easily accessible from the top of the fixture. The optional Fresnel Lens Conversion Kit allows to utilize the fixture as a framing wash fixture while providing a uniform appearance and fixture spacing.
The KL PROFILE FC is designed for any application where an ellipsoidal or wash fixture with an outstanding and impactful color range and quality and a flexible zoom range is required.

The fixtures enhanced optical design and lens coatings ensure precise and razor-sharp projections, removing all unwanted color shifting and aberrations in all zoom, focus, or framing positions.

Features:

• Compact Zooming Ellipsoidal
• Extended Color RGBMA LED Engine, 93.5 CRI
• Exceeding 10.000 lumens
• Integrated Rotating Gobo Slot
• Full Blackout Manual Framing System
• Wide Zoom Range from 6° to 50°
• 7.5” Front Accessory Holder
• Includes 7.5" Gel Frame
• Designer Gobo set with 10 high-resolution glass gobos
• Optional Fresnel Wash Lens Conversion Kit

Specifications:
SOURCE
305W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

PHOTOMETRIC DATA
10,600 Total Lumen Output
CRI 93.5
Zoom Range 6° - 50°
Beam Angle 5.9° - 45.6°
Field Angle 6.6° - 50°

EFFECTS
Manual Locking Zoom, Focus
4 Manual Rotating Full Blackout Framing Blades
Manual Barrel Rotation
Integrated Manual Iris
Variable 16-bit Dimming Curve

COLOR
RGBMA Color Array
CMY and RGB Emulation
Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book

GOBOS
1x 16bit Rotating / Indexing Interchangeable Glass Gobo

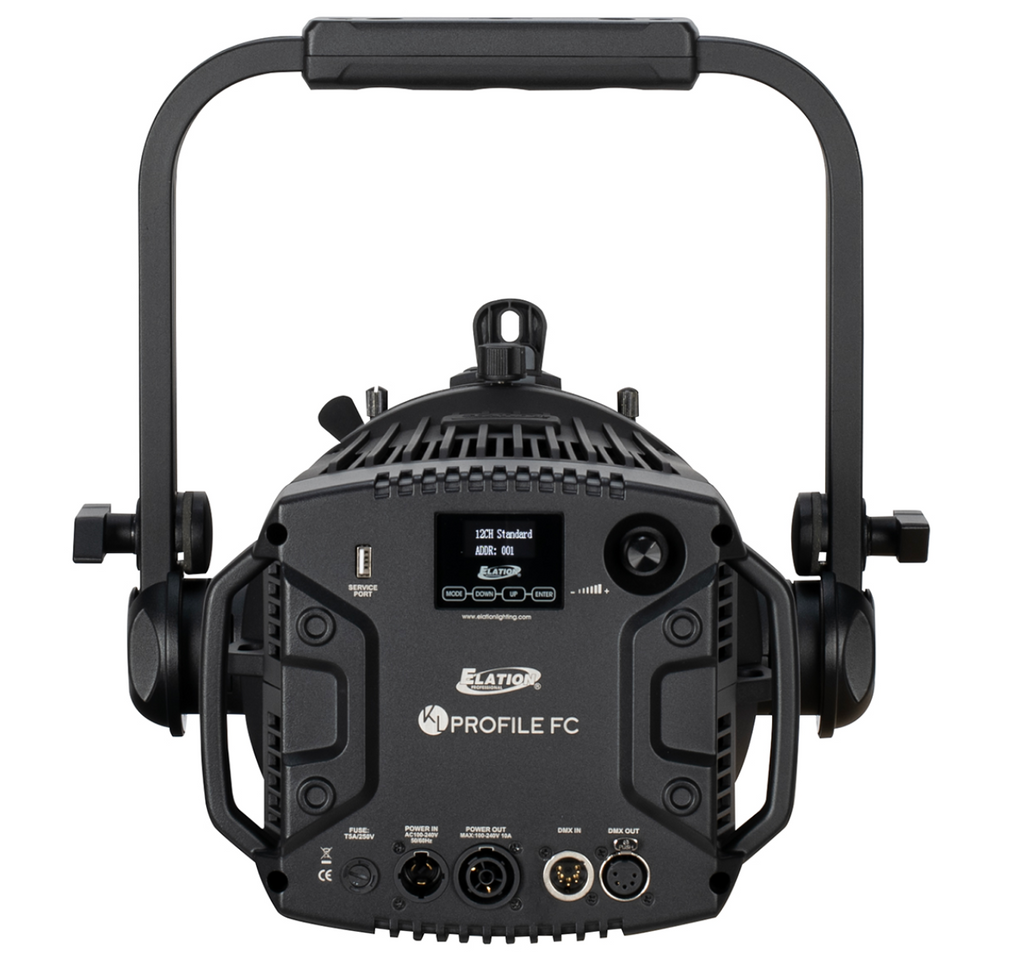

CONTROL / CONNECTIONS
8 DMX Channel Modes (1/5/12/21) CMY(10/17) RGB(10/17)
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
Encoder Control for Standalone Operation
Full Color 180° Reversible LCD Menu Display
5pin DMX In/Out
IP65 Locking Power In/Out
Elation’s E-FLY™ Internal Wireless DMX Transceiver

SIZE / WEIGHT
Length: 25.1” (637.6mm)
Length (Yoke 0°): 27.6” (701.0mm)
Width: 15.4” (390mm)
Height: 13.6” (345.0mm)
Height (Fixture Body): 11.0” (279.0mm)
Height (Yoke 90°): 18.4” (466.5mm)
Weight: 35.2lbs (15.9kg)
7.5” Front Accessory Slot

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
358W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 1124.1

OPTIONAL ACCESSORIES
#8050000053 - Omega Bracket

APPROVALS / RATINGS
CE | cETLus | IP20

Specifications and documentation are subject to change without notice.
