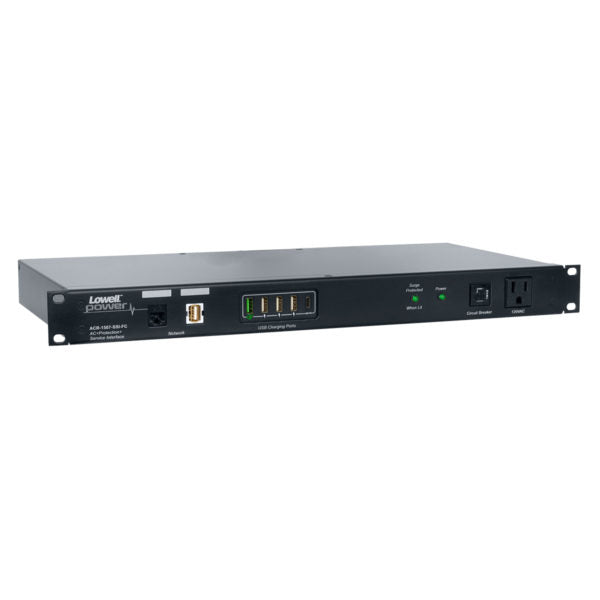

ACR-1507-SSI-FC: Service Interface Panel w/front charging ports

Service Interface Panel provides a quick way to access a network from the front of the rack, using (USB or RJ45) pass-through connectivity ports. The panel aids service technicians as well as FOH customers, providing easy-to-reach network ports for their devices. Model ACR-1507-SSI-FC includes high speed front charging ports and 7 power outlets with surge suppression.

The Service Interface Panel is also available with 5 power outlets and rear charging ports (ACR-SSI-1505-RC) or in a streamlined form without charging ports or outlets (network ports only, SIP-1).

SPECIFICATIONS

• Network pass-through ports (RJ45 and USB)
• High-speed charging connectors on panel front for convenient powering of service devices while working on equipment (USB A, USB A w/Qualcomm Quick Charge 3.0 technology, Type C)
• AC Power Outlets:  7 total (15A) NEMA outlets — 1 front, 6 rear
• Power Rating:  15A
• Power Input:  6 ft. attached cord with NEMA 5-15P plug
• Chassis:  19 in. x 9 in. x 1.75 in. (1U)
• Surge Suppression: Max surge current 40,000A

COMPLIANCE & CERTIFICATION

• ETL Listed (U.S. and Canada)
• Made in the U.S.A. with global components

A&E SPECIFICATIONS

• The rack shall include Lowell service interface panel model #ACR-1507-SSI-FC, which shall feature two pass-through ports (RJ45 jack and USB-A) to allow quick access to network connections made at the rear of the unit. The panel shall also include five front charging ports (three USB-A, one USB-A with Qualcomm Quick Charge 3.0 technology, one Type-C), seven NEMA 5-15R power outlets (one front, six rear), and an attached 6' power cord with 5-15P plug. The panel shall include surge protection capable of defeating surges up to 40,000A. The unit shall be ETL Listed to conform to UL60065.
