Description

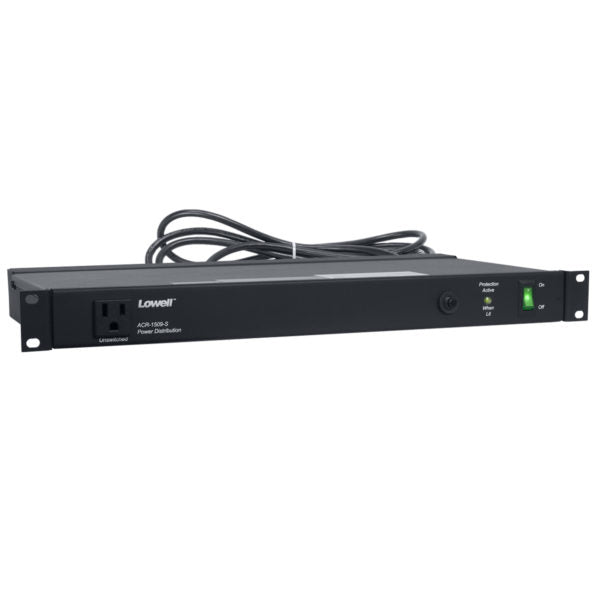

Rackmount Power #ACR-1509-S |
| Rackmount panel for standard 19 in. E.I.A. rack features 9 (15A) AC power outlets and surge protection up to 30,000A. |
|
SPECIFICATIONS • Power Rating: 120VAC, 60Hz, 15A • Outlets: 9 (15A) outlets (1 front, 8 rear) • Termination: 9 ft. attached cord with NEMA 5-15P plug • Chassis: 19 in. x 9 in. x 1.75 in. (1U) • Surge protection up to 30,000A. LED status indicator. • Switch (on/off): Lighted front rocker switch controls 3 rear outlets (other outlets are un-switched — always on when the unit has power) COMPLIANCE & CERTIFICATION • EIA/TIA Compliant • RoHS Compliant • UL Listed • Imported A&E SPECIFICATIONS The AC rackmount power panel shall be Lowell Model ACR-1509-S. It shall have a power rating of 120VAC, 60Hz, 15A with eight outlets in rear and one in front. Activation shall be via a rocker switch. Termination shall be an attached 9-ft. cord with NEMA 5-15P plug. The unit shall also include surge protection against surges up to 30,000A. Steel chassis shall be 19 in. x 9 in. x 1.75 in. (1U) and have a black powder epoxy finish. |
