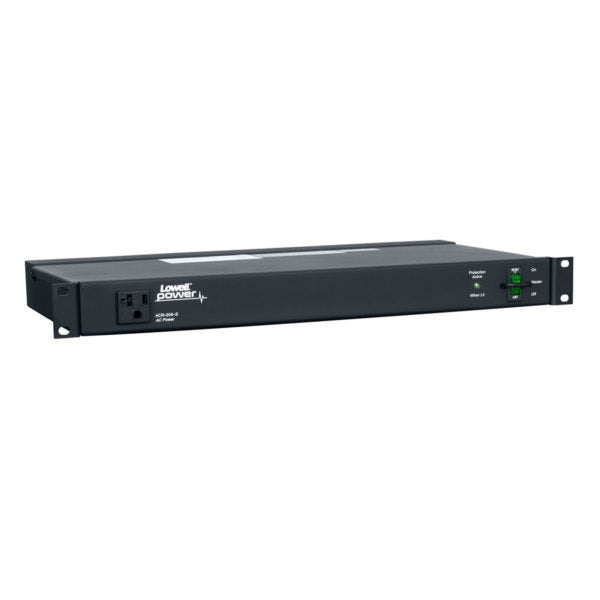

ACR-209-S: Rackmount Power, 20A outlets, SS

Model ACR-209-S power distribution panel features 20A NEMA outlets (nine total), all controlled by an on/off switch. The lighted rocker style switch makes it easy to see at-a-glance when the outlets are powered. A guard bar across the switch protects against accidental operation. This panel includes basic surge suppression with an LED status indicator.

SPECIFICATIONS

• Power Rating:  120VAC, 60Hz, 20A
• Outlets:  9 (20A) NEMA outlets (1 front, 8 rear)
• Termination:  9 ft. attached cord with NEMA 5-20P plug
• Chassis:  19 in. x 9 in. x 1.75 in. (1U)
• Basic surge suppression with LED status indicator
• On/off Switch: Rocker switch controls 1 front outlet and 8 rear outlets. Includes guard to prevent accidental operation.

COMPLIANCE & CERTIFICATION

• UL Listed
• Imported

A&E SPECIFICATIONS

• The rack shall include Lowell panel model ACR-209-S, which shall feature nine NEMA 5-20R outlets (one front, eight rear), all controlled by a lighted rocker switch with guard bar. It shall include basic surge suppression and an external grounding/bonding terminal. The panel shall be UL Listed and have a power rating of 120VAC, 60Hz, 20A. The 19"W x 9"D x 1.75"H (1U) steel chassis shall have a black powder epoxy finish. Termination shall be via an attached 9 foot cord with NEMA-5-20P plug.
