Description

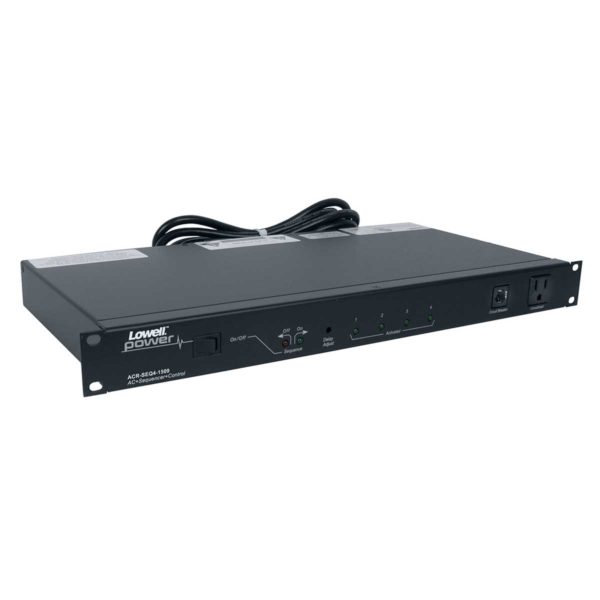

ACR-SEQ4-1509: Rackmount Sequencer (4-step) |
| Rackmount panel features 15A power outlets and four step sequencer for time-delayed activation/deactivation of equipment directly plugged into the six outlets controlled by on/off switch. Three additional outlets are un-switched (always on). Also includes a rear terminal block to connect to optional remote switches. |
|
FEATURES • Chassis: 19 in. x 9 in. x 1.75 in. (1U) • Power Rating: 120VAC, 60Hz, 15A • Termination: 9 ft. attached cord with NEMA 5-15P plug • Activation: Rocker switch • Outlets (9 total): 1 front 15A (un-switched), 2 rear 15A (un-switched) , 6 rear (15A) switched • Four-step sequencer has a delay between steps that can be set between 0.5 and 10 seconds (screwdriver adjustable) • Color coded LED status indicators • Rear terminal block for connection to optional remote switches (momentary). • Rear terminal block to allow system switches to be overridden for life safety system applications where fire code mandates an alarm interface. COMPLIANCE & CERTIFICATION • ETL Listed (U.S., Canada) • Made in U.S.A. with global components A&E SPECIFICATIONS The 1U rackmount panel with nine 15A power outlets (one un-switched in front, two un-switched in rear, six switched in rear) and four-step sequencer shall be Lowell Model No. ACR-SEQ4-1509. It shall be ETL Listed and have a power rating of 120VAC 60Hz/15A with EMI/RFI filtering. The front rocker switch shall sequentially activate and deactivate equipment connected to the "switched" rear outlets in four steps. The sequence delay between steps shall be between 0.5 to 10 seconds, which shall be screwdriver adjustable. The steel chassis shall have a black finish and feature color coded LEDs and a rocker activation switch on the front. Overall measurements shall be 19 in. x 1.75 in. x 9 in. Termination shall be via an attached 9 ft. cord with NEMA 5-15P plug. |
