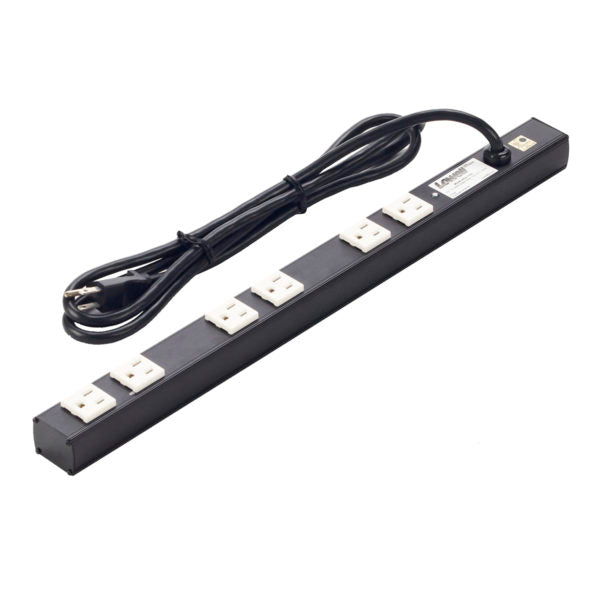

ACS-1506: Power Strip

AC power strip with 6 (15A) NEMA outlets and surge suppression.

SPECIFICATIONS

• Amperage:  15A

• Outlets:  6 NEMA, some spacing for power supplies

• Power Rating:  125VAC, 60 Hz, 15A

• Surge Suppression:  Common mode transient voltage surge suppression (UL 1449-3 Listed) with LED indicator and 15A circuit breaker. Max surge current 6500A. Max surge voltage 6000V.

• Chassis:  Steel with black finish (20 in.)

• Termination:  Attached 6 ft. cord with 5-15P NEMA plug

• Mounting Aids:  Mounting clip, screw

COMPLIANCE & CERTIFICATION

• EIA/TIA Compliant

• RoHS Compliant

• UL Listed, U.S./Canada

• Imported

A&E SPECIFICATIONS

The UL Listed power strip shall be Lowell Model ACS-1506. Power rating shall be 120VAC 15A with circuit breaker protection and an LED indicator that is lit when protection is active. The power strip shall have a suppressed voltage rating of 400V with maximum surge at 6000V and 6500 Amperes maximum peak current. Power strip shall include six (6) outlets spaced to accept power supplies. It shall be terminated with an attached 6 ft. cord and molded plug. It shall install to adjustable or fixed rail racks with mounting clip and screw.
