Lowell ACS-2006-3C-RPCP-HW
Roll over image to zoom in Click on image to zoom
Lowell ACS-2006-3C-RPCP-HW

Lowell ACS-2006-3C-RPCP-HW

Save $91.27
LowellSKU: ACS-2006-3C-RPCP-HW
Price:
$669.31 $760.58

Description

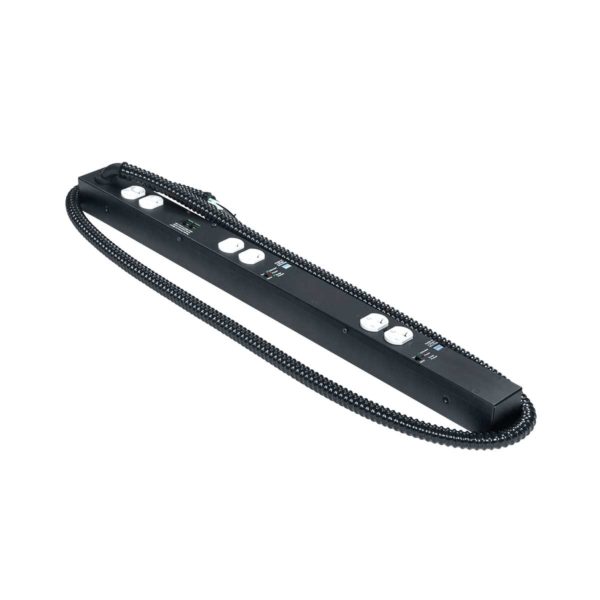

ACS-2006-3C-RPCP-HW: Power Strip w/Remote (pass-thru)

Three-circuit, 20A power strip with Remote Power Control is engineered for applications where multiple AC power circuits and the convenience of controlling AC distribution from a remote location is specified or required. This unit features pass-through connections and requires a compatible sequencer for activation (SEQ-P4 or SEQR-P4).


SPECIFICATIONS

  • Power Rating:  120VAC 60Hz 20A
  • Outlets:  Three (3) NEMA 5-20R duplex outlets (2 switched, 1 un-switched)
  • Circuits:  3
  • RPC:  Each switched circuit includes a Remote Power Control terminal with pass-through RJ45 jacks that allow equipment to be turned on/off from a remote location (order compatible sequencer separately)
  • Chassis:  Steel with black finish, 30 in.
  • Termination:  Hardwired 6-ft. non-metallic flexible conduit with pigtail leads
  • Universal mounting brackets

COMPLIANCE & CERTIFICATION

  • EIA/TIA Compliant
  • ETL Listed, U.S./Canada
  • Made in the U.S.A.

A&E SPECIFICATIONS

  • The hardwired power strip shall be Lowell model ACS-2006-3C-RPCP-HW with power rating of 120VAC 60Hz 20A. The 30" x 2" x 2" steel chassis with black powder epoxy finish shall include three circuits and three NEMA 5-20R duplex outlets. One duplex outlet shall be on an unswitched circuit (always on). The other duplex outlets shall be on two switched circuits which shall be activated and deactivated by Lowell power sequencer model SEQ-P4 or SEQR-P4, ordered separately. The power strip shall include surge protection up to 10,000A. It shall also include universal mounting brackets and a six ft. non-metallic flexible conduit with pigtail leads. The unit shall be made in the USA with global components and shall be ETL Listed.
