Description

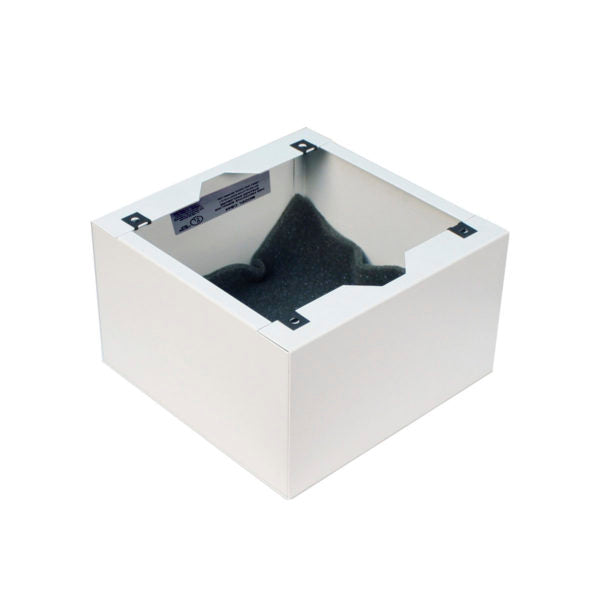

Backbox #CB44 |
| Surface-mount steel backbox with white finish. |
|
SPECIFICATIONS • Material: 20-gauge steel, welded seams, white finish • Height: 7.13 in. • Width: 7.13 in. • Depth: 4.25 in. • Volume: 0.125 cu.ft. • Acoustical Treatment: 0.25 in. foam pad • Mounting Aids: Universal mounting pattern for E.O. box (not included), 0.375 in. hole for wire access • For Grille Type: Screw-mount COMPLIANCE & CERTIFICATION • Made in U.S.A. • Certified U.S. steel • UL Listed when used with Lowell Speaker/Grille Assembly No. ULT-SG4-CT572 A&E SPECIFICATIONS The surface-mount backbox shall be Lowell Model CB44, which shall be fabricated of 20-gauge steel and lined with a 0.25 in. thick foam pad. The rear shall include provisions to mount a 4 in. square, 4 in. octagon, 2-gang or 1-gang E.O. box (not included). The rear shall also have a 0.375 in. diameter hole for wire access. The backbox shall measure 7.13 in. square x 4.25 in. deep and have a white powder epoxy finish. It shall feature four holes and 8-32 U-clips at flanged corners to accept a square screw-mount grille. |
