Lowell CB84-SGVPA
Roll over image to zoom in Click on image to zoom
Lowell CB84-SGVPA

Lowell CB84-SGVPA

Save $9.75
LowellSKU: CB84-SGVPA
Price:
$71.47 $81.22

Description

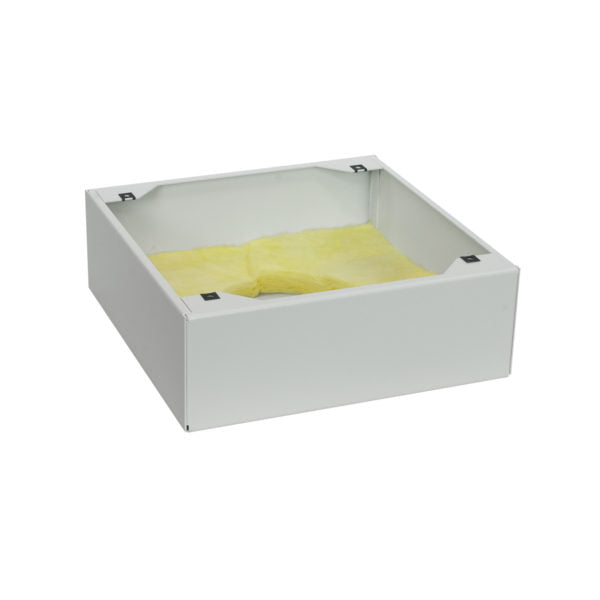

CB84-SGVPA: Surface-mount Backbox for Vandal-resistant Grille

Surface-mount steel enclosure for ceiling or wall installation is designed to screw-mount Lowell grille (model SG-8VP) with an 8" speaker in vandal-prone areas or where tampering is a concern (indoor applications).


SPECIFICATIONS

  • Material:  16-gauge one-piece steel, welded seams, white finish
  • Height:  11.50 in.
  • Width:  11.50 in.
  • Depth:  4.00 in.
  • Volume:  0.306 cu.ft.
  • Acoustical Treatment:  1 in. thick batting
  • For Grille Type:  Screw-mount, tamper-resistant
  • Mounting Aids: U-clips, holes for a tamper-resistant grille, universal mounting pattern for E.O. box, 0.875 in. hole for conduit

COMPLIANCE & CERTIFICATION

  • Made in U.S.A.
  • Certified U.S. steel

A&E SPECIFICATIONS

  • The vandal-resistant surface-mount enclosure for indoor installation of an 8" speaker shall be Lowell model CB84-SGVPA, which shall be fabricated U.S. steel with white powder epoxy finish measuring 11.5" square x 4"D. It shall feature a rear hole (.875 dia.) for 1/2" conduit or wire access and provisions to mount to an electrical box (4" square, 4" octagon, 1-gang or 2-gang – not included). It shall also feature four mounting holes and 8-32 U-clips at flanged corners to accept the specified screw-mount grille. The enclosure shall include 1" thick acoustic batting.
