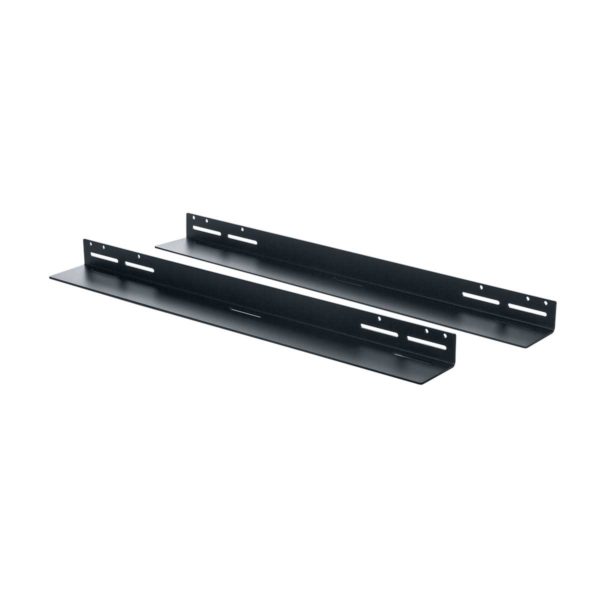

CHB Series: Chassis Brackets

Chassis brackets help support heavy equipment mounted in 19 inch x 44U x 22/23"W racks. Brackets require two pairs of Lowell Z-rail model ZR-44 or ZRN-44, ordered separately. Brackets are available in 20 in., 26 in., and 30 in. depths.

FEATURES

• Material:  11-gauge steel
• Finish:  Smooth black
• Depth: 20 in., 26 in., or 30 in.
• Load Capacity: 200 lbs.
• Sold in pairs

COMPLIANCE & CERTIFICATION

• Made in the U.S.A.
• Certified U.S. steel


A&E SPECIFICATIONS

• The installation shall include Lowell chassis brackets model ______, which shall be one pair of 11-gauge certified U.S. steel brackets with black powder epoxy finish, measuring 1.72 in. x 3.00 in. x _____ (20 in., 26 in., 30 in.) The brackets shall be made in the U.S.A.
