Description

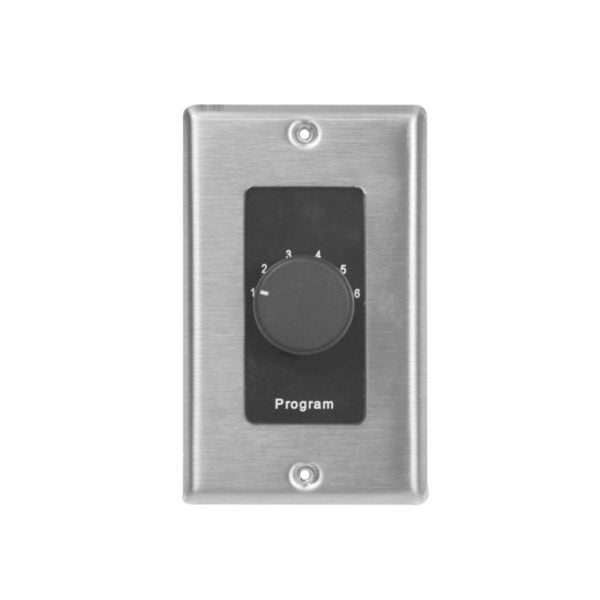

CS6-DSB: Program Selector Switch |
| Six-source program selector switch with 1-gang wall plate. |
|
SPECIFICATIONS • Program Sources: 6 • Control: Rotary knob • Termination: Pigtails • Input: Screw terminal • Wall Plate: Decorator style, stainless steel and black • Fits standard E.O. box • May be used with a 70V/25V volume control COMPLIANCE & CERTIFICATION • Made in the U.S.A. with global components
A&E SPECIFICATIONS The source selection device shall be Lowell Model No. CS6-DSB which shall be a six input selector switch in a 1-gang decorator style wall plate finished in stainless steel and black. It shall include a rotary knob and mounting screws. The selector switch shall be two-pole rotary style for isolation between lines. Wiring connections shall be to screw terminals allowing the unit to be field connected as an independent selector for use with a volume control. The wall plate shall measure 2.75 in. x 4.5 in. x 1 in. for installation into a standard gang size E.O. box (not included). |
