Description

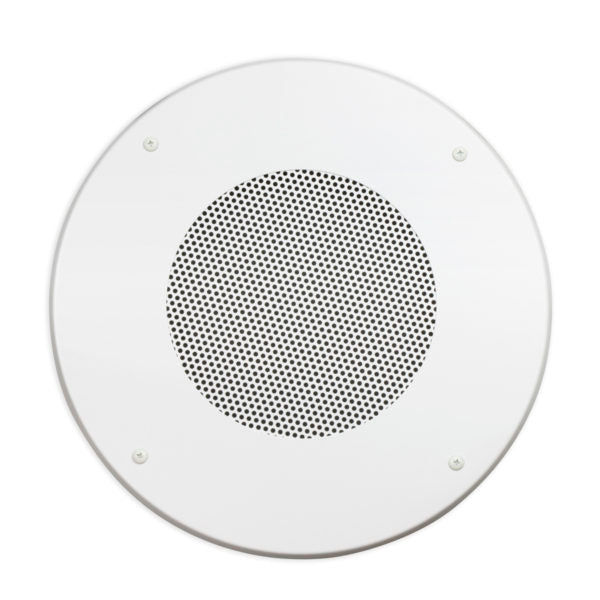

CS-8H: Steel Speaker Grille |
| Steel speaker grille is two piece welded steel with fine-mesh grille and contoured edge. For use with an 8 in. driver. |
|
SPECIFICATIONS • Style: Screw-mount • Material: 22-gauge steel, welded mesh steel inner grille • Finish: White powder epoxy finish • Size: 12.875 in. diameter • Mounting Projection: 0.25 in. • Mounting Provisions: 4 screws (white), 4 welded studs with nuts CERTIFICATION & COMPLIANCE • Made in the U.S.A. • Certified U.S. steel
A&E SPECIFICATIONS The grille for 8 in. speaker drivers shall be Lowell Model CS-8H. The two-piece grille shall have a trim ring fabricated from 22 gauge steel with a peripheral flange of 60-degrees and a perforated steel center welded into position. The grille shall measure 12.875 in. dia. with a shallow mounting projection of 0.25 in. It shall have four welded studs spaced at 90-degree intervals for mounting the specified 8 in. speaker and four (0.25 in.) holes spaced at 90-degree intervals on 11.25 in. bolt circle for mounting specified backbox or mounting ring. Model CS-8H shall be finished in a white powder epoxy. It shall include matching screws for backbox installation. |
