Lowell ESP-62TW
Roll over image to zoom in Click on image to zoom
Lowell ESP-62TW

Lowell ESP-62TW

Save $45.03
LowellSKU: ESP-62TW
Price:
$330.25 $375.28

Description

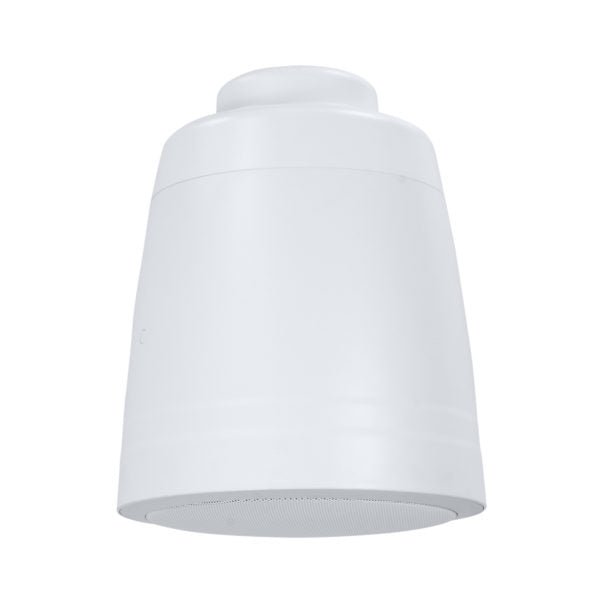

ESP-62TW: 6-1/2? Coaxial Pendant Speaker

  • Performance: ESP Pendant Speakers are engineered to acoustically match the ES Series of Recessed Speakers, enabling high performance to integrate with even coverage no matter the type of architecture encountered.
  • Quick Install:  The sleek tapered enclosure with press-fit grille has a magnetic-mount top that easily clicks into position, hiding the integral top bracket and wiring connections.
  • Extremely Versatile:  The speaker can be mounted with cable or pipe, but it's also suitable for wall- or truss mount if the optional U-bracket is mounted to the threaded side insert points.


INCLUDES

  • Driver:  6-1/2" coaxial driver
  • Transformer:   32W transformer with tap selector switch mounted behind grille. Tap selections for 25V, 70V or 100V speaker systems plus 4 ohm (UL minimum) transformer bypass position.
  • Enclosure:  Tapered durable ABS plastic enclosure with matching magnetic-mount top to hide wiring connections and rigging bracket. The ported enclosure is tuned for extended bass response. Removable phoenix-style connector.
  • Grille:  Fine mesh 20-gauge CRS press-fit grille with UV-rated white powder coating includes scrim and pull-tool.
  • Installation:  The pendant speaker can hang from cable or pipe. It can also be used for wall- or truss-mount by adding the optional U-bracket. Order all mounting hardware separately.

COMPLIANCE & CERTIFICATION

  • UL 1480A General Signaling, US
  • CSA C22.2 No.205-12 General Signaling, Canada

A&E SPECIFICATIONS

The loudspeaker shall be Lowell ESP-62TW, which shall include a high-performance 6-1/2" coaxial driver, ported bass reflex enclosure and press-fit grille for pendant or U-bracket installation. Frequency response shall be 64Hz-20kHz ±6dB. Sensitivity for the system shall be 88.6dB log average @1W/1M over the frequency response range, measured in full-space. The speaker shall be constructed of a polypro- pylene cone with rubber surround and a PEI tweeter. The woofer magnet weight shall be a minimum of 15.45 oz. (438.1g) and the woofer voice coil diameter shall be 1" (25.47mm). The transformer shall have primary taps for 100V (32, 16, 8, 4.2 watt); 70V (32, 16, 8, 4, 2 watt); and 25V (4.4, 2.2, 1.1, .55, .28 watt) with a selector switch mounted on the front under the grille that will include a 4 ohm transformer bypass position. The enclosure shall be white ABS plastic featuring a main body, magnetic cover, and bottom baffle where the driver shall be mounted. The enclosure shall feature a bracket assembly to accommodate cable or pipe hanging installations (cable/pipe not included). A four-conductor Phoenix style removable connector shall be located under the magnetic cover to allow input wiring and parallel output wiring to the next speaker. The unit shall include a fine mesh 20-gauge CRS press-fit grille with UV rated powder coating (white), scrim and pull tool.
