Lowell ESP-82TW
Roll over image to zoom in Click on image to zoom
Lowell ESP-82TW

Lowell ESP-82TW

Save $61.42
LowellSKU: ESP-82TW
Price:
$450.44 $511.86

Description

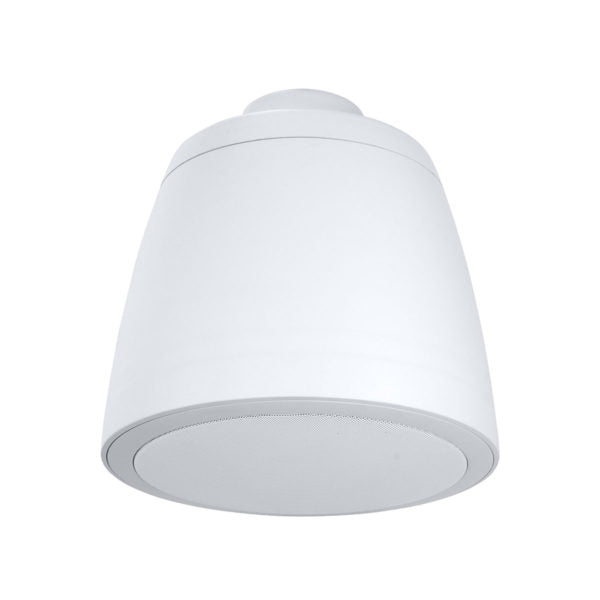

ESP-82TW: 8? Coaxial Pendant Speaker

  • Performance:  ESP Pendant Speakers are engineered to acoustically match the ES Series of Recessed Speakers, enabling high performance to integrate with even coverage no matter the type of architecture encountered.
  • Quick Install:  The sleek tapered enclosure with press-fit grille has a magnetic-mount top that easily clicks into position, hiding the integral top bracket and wiring connections.
  • Extremely Versatile:  The speaker can be mounted with cable or pipe, but it's also suitable for wall- or truss-mount if the optional U-bracket is mounted to the threaded side insert points.


ASSEMBLY INCLUDES

  • Driver:   8 in. 120W coaxial driver
  • Transformer:   120W transformer with tap selector switch mounted behind grille. Tap selections for 25V, 70V or 100V speaker systems plus 4 ohm transformer bypass position (UL minimum).
  • Enclosure:  Tapered durable ABS plastic enclosure with matching magnetic-mount top to hide wiring connections and rigging bracket. The ported enclosure is tuned for extended bass response. Removable phoenix-style connector.
  • Grille:  Fine mesh 20-gauge CRS press-fit grille with UV-rated white powder coating includes scrim and pull-tool.
  • Installation:  The pendant speaker can hang from cable or pipe. It can also be used for wall- or truss-mount by adding the optional U-bracket. Order all mounting hardware separately.

COMPLIANCE & CERTIFICATION

  • UL 1480A General Signaling, US
  • CSA C22.2 No.205-12 General Signaling, Canada

A&E SPECIFICATIONS

  • The loudspeaker shall be Lowell ESP-82TW, which shall include a high-performance 8" coaxial driver, ported bass reflex enclosure and press-fit grille for pendant or U-bracket mount. Frequency response shall be 64Hz-20kHz ±6dB. Sensitivity shall be 90.0dB log average @1W/1M over the frequency response range, measured in full-space. The speaker shall be constructed of a coated paper cone with rubber surround and a silk dome tweeter. The woofer magnet weight shall be a minimum of 19.2 oz. (544.7g) and the woofer voice coil diameter shall be 1.2" (30.55mm). The transformer shall have primary taps for 100V (120, 60, 30, 15 watt); 70V (120, 60, 30, 15, 7.5 watt); and 25V (15, 7.5, 3.75, 1.88, 0.94 watt) with a selector switch mounted on the front under the grille that will include a 4ohm (UL minimum) transformer bypass position. The enclosure shall be white ABS plastic featuring a main body, magnetic cover, and bottom baffle where the driver shall be mounted. The enclosure shall feature a bracket assembly to accommodate cable or pipe hanging installations (cable/pipe not included). A four-conductor Phoenix style removable connector shall be located under the magnetic cover to allow input wiring and parallel output wiring to the next speaker. The unit shall include a fine mesh 20-gauge CRS press-fit grille with UV rated powder coating (white), scrim and pull tool.
