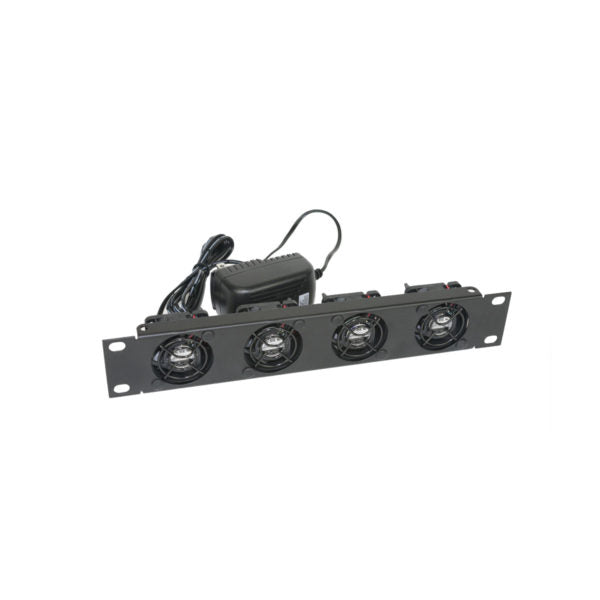

FDC4-HR Series: Fans for Half Rack

Rackmount fan panels for use with Lowell LHFR Series half width rack.

FEATURES

• Material:  Steel with black semi-gloss powder epoxy finish
• Panel Size:  10.375 in. x 1.625 in. x 1U
• Four fans with guards
• Fan Diameter:  1.57 in.
• Total Airflow Rating:  36cfm
• Total Noise Rating:  38dB
• Power supply with 6 ft. cord
• Optional thermostat probe to control fan operation

COMPLIANCE & CERTIFICATION

• Made in the U.S.A.
• Certified U.S. steel

A&E SPECIFICATIONS

• The fan panel for a half rack shall be Lowell Model No. __________. Housing shall measure 1.75 (1U) x 10.375 x 1.625 inches [45 x 264 x 41mm] and have a black powder epoxy finish. The panel shall include four fans, each with a 1.57 in. [40mm] diameter. Total airflow rating is 36cfm; total noise rating is 38dB. The unit shall include a UL Listed power supply with four plug adaptors—NEMA 1-15 for North America, Schuko CEE 7/16 for central Europe, BS1362 for the U.K. and AS3112 for Australia/New Zealand. It shall require 9.6 watts of power.
• The fan panel shall also include an optional thermostat probe to control fan operation, which shall automatically activate fans when ambient temperature reaches 86?F [30?C] and deactivate them when temperature reaches 72?F [22.2?C].
