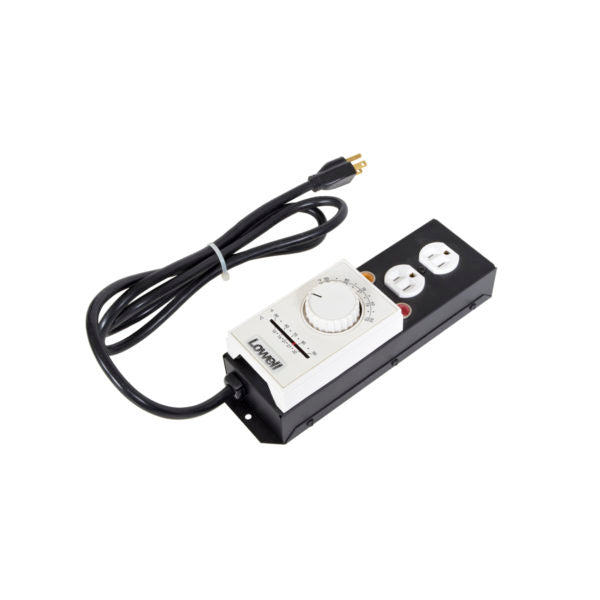

FTC-1: Fan Thermostat Control

The fan thermostat control is made to install in a rack, providing a visual check of the temperature, while controlling fan operation.

FEATURES

• 22-gauge CRS assembly with plastic thermostat/thermometer housing
• 15A duplex receptacle
• 6 ft. cord with plug
• 10 in. x 3 in. x 3 in.
• Two status indicator lights (On/Standby)
• UL Listed thermostat with Fahrenheit/Celsius dial
• Temperature range 50–90 degrees F
• Power Rating: 15A, 125vac

A&E SPECIFICATIONS

• The device for temperature controlled activation of cooling fans mounted in the rack shall be Lowell Thermostat Model No. FTC-1, which shall have a temperature range of 50–90 degrees Fahrenheit [10–32 degrees Celsius] and shall include a compact steel chassis, 15A duplex receptacle, UL Listed bi-metallic thermostat with thermometer, 6-ft. cord and LED indicators for “ON” and “STANDBY” functions.
