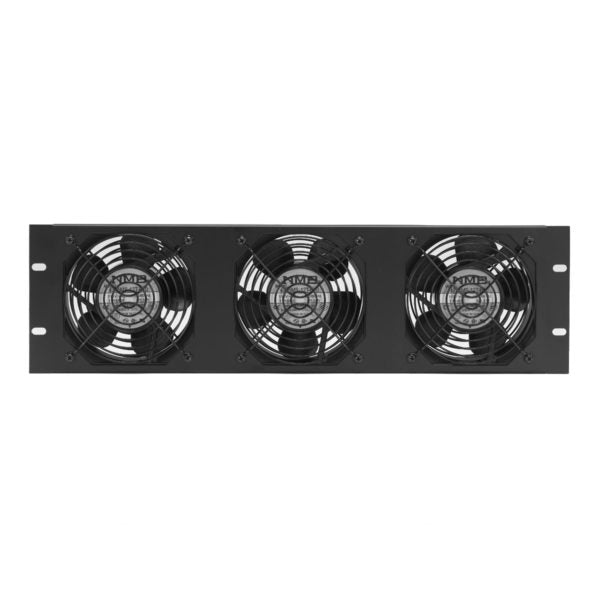

FW Series: Whisper Fan Panels

Rack mount fan panels with whisper quiet fans ship ready to install in 19 in. equipment racks.

FEATURES

• Panel:  16-gauge steel, black finish
• Fan Diameter:  4.7 inch
• Fan Quantity:  2-4 fans (model numbers in chart below)
• Noise Rating:  28 dBA per fan
• Total Airflow:  50 cfm per fan
• Guards
• Choose standard cord or thermo-cord with built-in thermostat to control fan operation


A&E SPECIFICATIONS

• The thermal management panel for E.I.A. rackmount installation shall be Lowell Model No. ______, which shall be 16 gauge U.S. steel finished in black powder epoxy paint. It shall measure ____ rack units x 19”W and include ____ whisper fans with guards. Each fan shall have a 4.7" diameter with 50 cfm airflow and 28 dBA noise rating.
• Models with Standard Cord:  The panel shall include a standard 6 ft. cord.
• Models with Thermo Cord:  The panel shall feature a green thermo cord which shall have an integral thermostat to automatically control fan activation, turning them on when ambient temperature reaches 86 degrees F and off when temperature reaches 72 degrees F.
