IM8A-TS32-2SW: 8 in. 50W Speaker (2 cf)

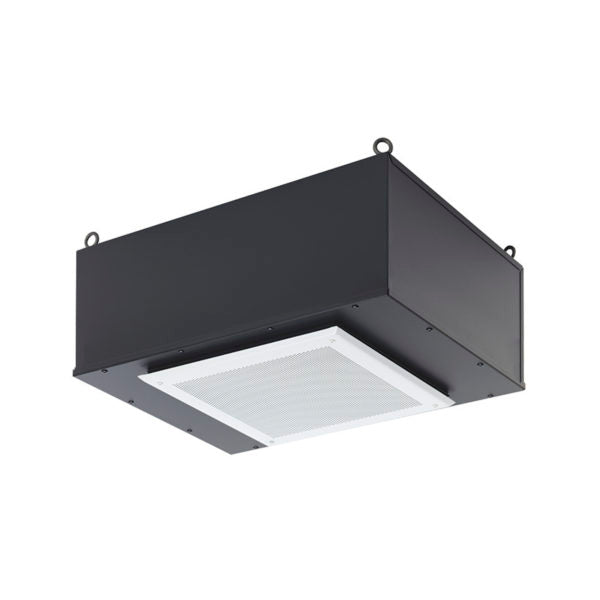

Ready-to-install high performance 50W flown rectangular speaker system for suspended installations features an 8 in. driver, 70V 32W transformer, 2 cu.ft. acoustic enclosure and white grille. It's ideal for high energy, high ceiling applications like clubs, bars, sporting facilities, concourses, hotel ballrooms, transportation terminals, convention centers and exhibit halls.

PERFORMANCE

PERFORMANCE

• Pro sound

SPEAKER ASSEMBLY INCLUDES

• Driver (8A50):  8 in. 50W driver features 20 oz. LF magnet with 1.4 inch copper voice coil to drive a polypropylene cone with half-roll rubber surround for long cone travel and good edge damping. Post-mounted tweeter is a 1 inch balanced-drive dome protected by Ferrofluid and a first-order high-pass filter. A steel plate is mounted over the driver to protect it during shipping and installation. Remove it to mount the grille. See the driver spec sheet for more information.
• Transformer (TLS-3270):  Includes 70V 32W transformer for superior music fidelity in 70V distributed applications. The 20/20 AudioVision™ transformer offers true 20Hz-20kHz performance. A screwdriver-adjustable tap selector switch is accessible through an opening in the grille.  Note: Lowell 20/20 AudioVision transformers have full frequency response and high power handling which allows the speaker to operate at full potential while providing a stable load to the amplifier. The transformer allows a distributed speaker system to sound imperceptibly the same as a transformer-less direct-to-voice-coil system but with easier wiring, reduced labor and less expense.
• Grille:  Square perforated steel grille with white powder epoxy finish is ideal for applications where the speaker is suspended in a tile, sheetrock or plaster ceiling. 15.25 in. square x 0.375 in.
• Enclosure:  2 cu.ft. precision-formed steel enclosure (23.94 in. x 18.19 in. x 8.19 in.) features anti-vibration ribs, sound-stop board, 1-1/2 in. thick premium acoustic lining and forged 1/4 in.–20 eyebolts screwed into mounting nuts for secure suspended installation (using flyware by others). Externally accessible connections are terminated through a 4 in. x 4 in. flush cover plate. Black powder epoxy finish.

CERTIFICATION & COMPLIANCE

• Certified U.S. steel (grille, enclosure)
• Made in U.S.A. with global components

A&E SPECIFICATIONS

• The 50W flown rectangular speaker for suspended installation shall be Lowell iMount® Model IM8A-TS32-2SW which shall feature an 8 in. 50W driver mounted in a black steel acoustic enclosure (23.937 in. x 18.19 in. x 8.19 in., 2 cu.ft. volume) with anti-vibration ribs, sound-stop board, 1-1/2 inch thick acoustic lining, and forged 1/4 inch-20 eyebolts screwed into mounting nuts for suspended installation using flyware by others. It shall include a perforated steel architectural grille with white finish. System frequency response shall be 50Hz–7.3kHz (±6dB) and 50Hz–20kHz (±9.1dB) with average sensitivity of 89.7dB @1W/1M. Dispersion shall be 85 degrees conical @2kHz octave measured 6dB down. The system shall include a 70V 32W transformer with tap selections behind the grille.
