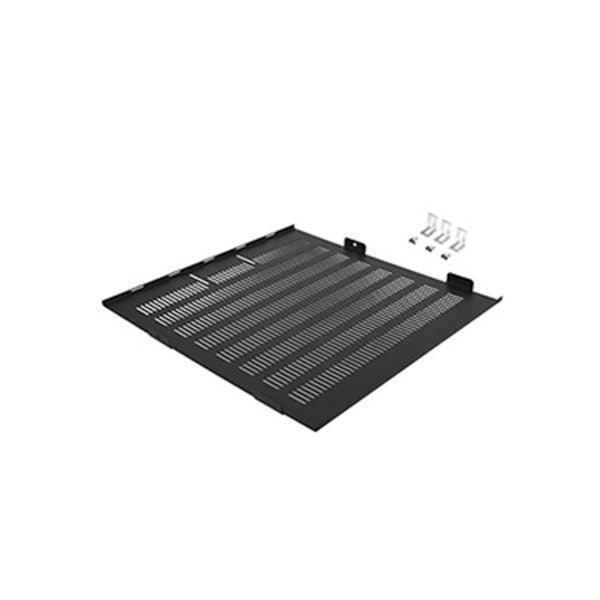

KS Series: Knockdown Shelf 2U-4U

19 in. rack shelf is built by ordering the base and sides separately. In addition, an optional clamping bracket is available as a separate purchase, allowing you to build just what you need for each project.

FEATURES

• Shelf Sides:  2U, 3U, or 4U (select  14 in. or 18 in. depth)
• Shelf Base:  14 in., 18 in., or 21 in. deep
• Width:  19.00 in.
• 16-gauge steel with smooth black powder epoxy finish, vented base
• Load capacity 50 or 70 lbs. depending on configuration
• Optional clamping bracket

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.


A&E SPECIFICATIONS

• The shelf for rack installation shall consist of a 16-gauge steel vented base Lowell Model _______ and side Model _________. The shelf shall have a smooth black powder epoxy finish. When assembled, the shelf shall measure __________ rack units and have an overall depth of _________. Load capacity shall be _____ lbs.
