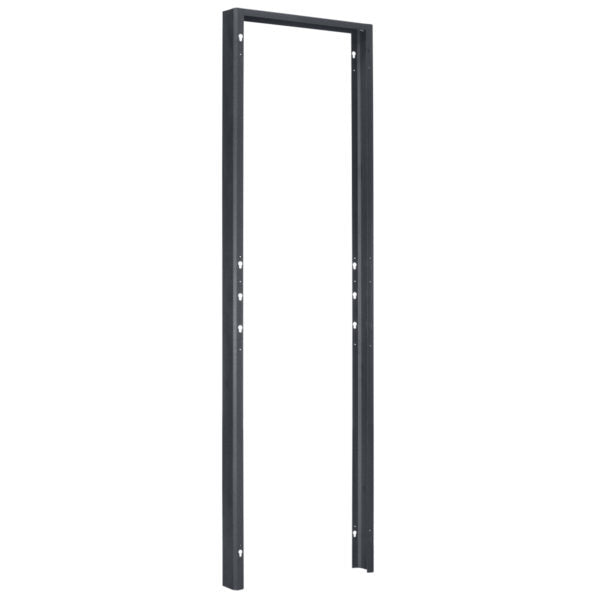

LCC4 Series: Lowell Cable Chase, 4?D

Three-piece assembly provides extra wiring space between gangable racks or at the end of a multi-bay configuration. For use with LGR Series 44U racks only.

FEATURES

• Material:  16-ga. steel
• Finish:  Smooth black
• Channel Depth:  4 in.
• Height:  83 in.
• Each unit features 4 in. of useable space, bolt-on front/rear/top, and joining hardware.

COMPLIANCE & CERTIFICATION

• Made in the U.S.A.
• Certified U.S. steel

A&E SPECIFICATIONS

• The cable chase shall be Model No. ____________ which shall provide four inches of cable management space on the side of the specified rack. Field-mounting shall be accomplished without drilling using 10-32 nuts and bolts provided. The channel shall be 16-gauge steel with a black powder epoxy finish and shall feature compound knockouts on top.
