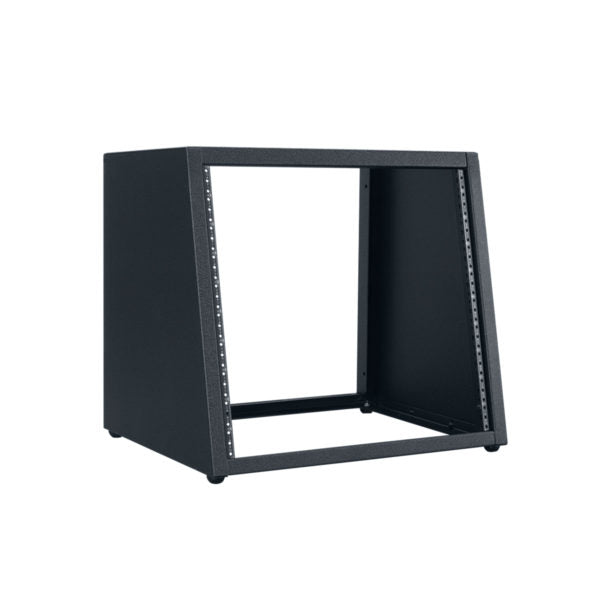

LDSR-1018: Desktop Sloped-front Rack 10U x 18?D

The desktop rack features a sloped front for easy viewing of equipment and controls from a seated position. Includes rubber feet.

SPECIFICATIONS

• Rack Space:  10U
• Height:  19.35 in.
• Width:  21.10 in.
• Depth:  18.00 in.

FEATURES

• Welded 16 gauge steel with 12 degree sloped front
• One-pair fixed position mounting rails tapped 10-32
• Open front, back, base
• Black wrinkle powder epoxy finish
• Rubber feet (.5”H)
• Suitable for UPS shipping

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• RoHS compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.

A&E SPECIFICATIONS

• The rack for desktop use shall be Lowell Model No. LDSR-1018, which shall feature a 12 degree sloped front and measure 21.10”W x 18”D (at the base) x 19.35”H and provide 10 rack units of panel space. The welded assembly shall be 16-gauge steel with a black wrinkle powder epoxy finish. It shall include one pair fixed position front mounting rails tapped 10-32 and a set of protective rubber feet which shall increase overall rack height 0.5”.
