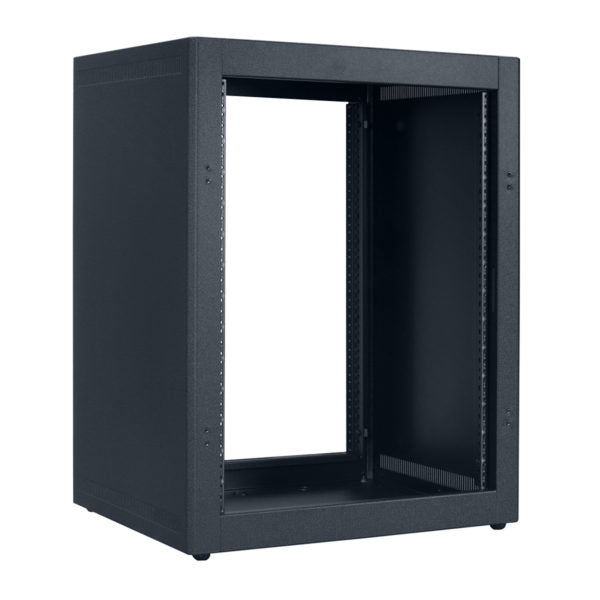

LDTR-1418: Desktop Rack 14U x 18?D

19 inch equipment rack with welded sides, top, and base is ideal for electronics kept near at hand, such as on a desk or under a counter. Includes rubber feet to protect

SPECIFICATIONS

• Rack Space:  14U
• Height:  28.88 in. (29.38 with rubber feet)
• Width: 23.06 in.
• Depth:  18.18 in. (17.20 usable)

FEATURES

• Welded steel top and base with knockouts
• Welded steel sides with top/bottom vents
• Two pair fixed-position mounting rails tapped 10-32, printed RU scale
• Rubber feet (.5 in. H)
• Beveled corners
• Black wrinkle powder epoxy finish
• Load capacity 150 lbs.

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• RoHS compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.

A&E SPECIFICATIONS

• The E.I.A./T.I.A. compliant rack shall be Lowell Model No. LDTR-1418 which shall measure 23.06"W x 18.18"D x 28.88"H (without rubber feet). It shall have a useable depth of 17.20" and racking space of 14 rack units. The welded assembly shall be 16-gauge certified US steel with fixed-position front and rear mounting rails tapped 10-32. The rack shall have a load capacity of 150 lbs. and shall include side vents and protective rubber feet. The top and bottom shall have knockouts for cable management. Rack finish shall be black wrinkle powder epoxy.
