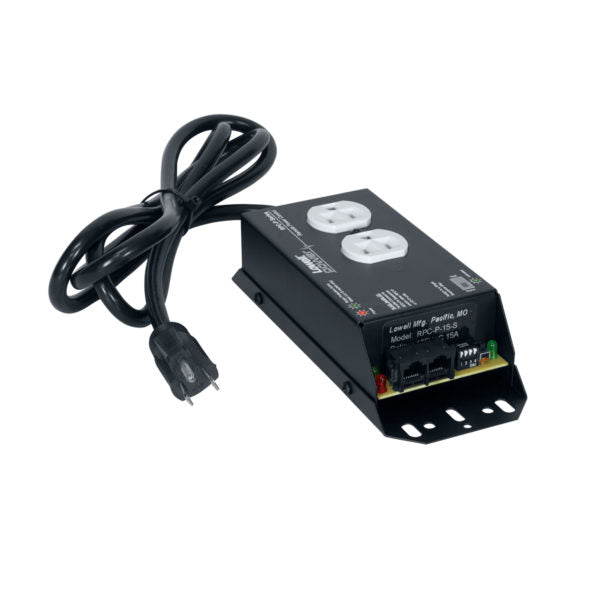

Lowell RPC-P15-S
Roll over image to zoom in Click on image to zoom
Lowell RPC-P15-S

Lowell RPC-P15-S

Save $29.54
LowellSKU: RPC-P15-S
Price:
$216.64 $246.18

Description



RPC-P15-S: Standalone RPC w/pass-through jacks (15A,SS)

Remote power control with pass-through jacks for labor-saving installation and quick changes to sequencing order via the onboard step selection switch. Note that sequencer SEQ-P4 is required to activate RPC-P Series remote power controls (order separately)


FEATURES

  • Chassis:  Steel with black finish, 7.5 in. x 3.25 in. x 1.75 in
  • Power Rating:  100-250VAC, 15A
  • Power Inlet: NEMA 5-15P (6 ft. cord)
  • Power Outlets:  NEMA 5-15R duplex
  • RJ45 jacks (2)
  • DIP Switch: Because the sequence step is selected via the switch on each RPC-P unit, the startup sequence can be quickly modified without re-wiring.
  • Activation:  This model requires sequencer (#SEQ-P4) with an external trigger (SPST switch or DSP voltage connection) for activation.
  • Multiple RPC-P units can be connected to each other (or compatible relays) to control all from a single location (up to 20 RPC-P units per step)
  • This model includes surge suppression (20,000A max. surge current)

COMPLIANCE & CERTIFICATION

ETL Listed (U.S., Canada)

Made in U.S.A. with global components

A&E SPECIFICATIONS

  • The device for remotely controlling AC power shall be Lowell model #RPC-P15-S, which shall be a 7.5"L x 3.25"W x 1.75"H steel chassis with black powder epoxy finish. The remote power control shall feature RJ45 jacks and 15A duplex,  power outlet. Power rating shall be 15A. Power input shall be via 6 ft. cord with NEMA plug. The unit shall also feature surge suppression up to 20,000A.
