Lowell RS8-AW
Roll over image to zoom in Click on image to zoom
Lowell RS8-AW

Lowell RS8-AW

Save $4.88
LowellSKU: RS8-AW
Price:
$35.80 $40.68

Description

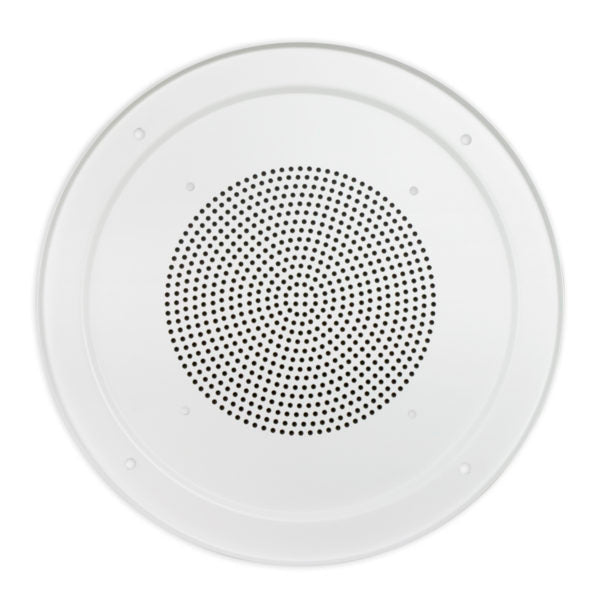

RS8-AW: Aluminum Speaker Grille

Contoured aluminum speaker grille with contoured edge is a two-step stamped design with a circular perforation pattern made for use with an 8 in. driver.


SPECIFICATIONS

  • Style:  Screw-mount
  • Material:  Precision formed .032 aluminum with contoured edge, two-step stamped design, circular perforation pattern
  • Finish:  White
  • Size:  12.625 in. diameter
  • Mounting Projection:  0.4375 in.
  • Mounting Provisions:  8 screws (white)

CERTIFICATION & COMPLIANCE

  • Made in the U.S.A.

A&E SPECIFICATIONS

  • The contoured aluminum speaker grille for 8 inch speakers shall be Lowell Model RS8-AW. It shall be fabricated one-piece 0.032 aluminum with a multi-level finished surface with a peripheral flange of 60-degrees. The grille diameter shall be 12.625 in. with mounting projection of 0.437 in. The grille shall have four 0.218 in. holes spaced at 90-degree intervals for screw mounting the specified 8 in. speaker. It shall also have four .25 in. holes spaced at 90-degree intervals on a 11.25 in. bolt circle for mounting specified backbox or mounting ring. The grille shall be finished in white powder epoxy and include matching screws for speaker and backbox mounting
