Lowell RY-4A
Roll over image to zoom in Click on image to zoom
Lowell RY-4A

Lowell RY-4A

Save $42.57
LowellSKU: RY-4A
Price:
$312.15 $354.72

Description

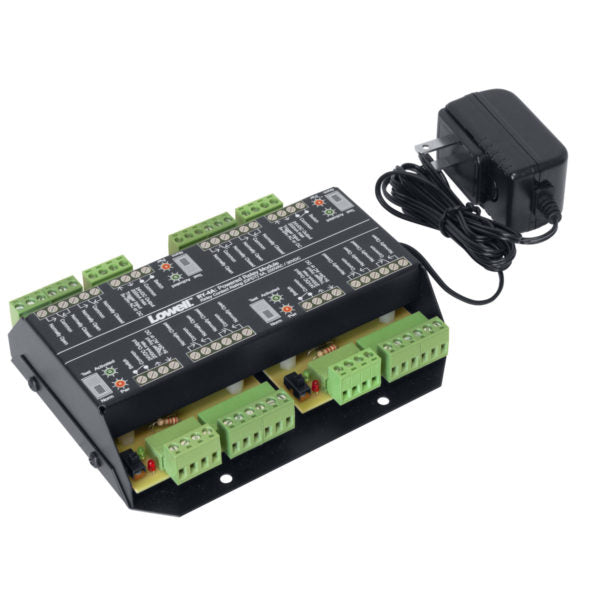

RY-4A: Relay Module (classic)

General purpose relay module with 4 heavy duty double-pole double-throw (DPDT) relays..


FEATURES

  • Steel Chassis (5.00 in. x 1.69 in. x 6.25 in.) with mounting holes
  • 5A contact rating
  • Four (4) independent DPDT relays
  • Test switch for troubleshooting
  • Relays are activated by contact closures or voltage input (5-24V AC or DC)
  • Detachable Phoenix style terminals
  • Includes power supply (100-250VAC input, 24VDC 500mA output)

COMPLIANCE & CERTIFICATION

  • Made in U.S.A. with global components

A&E SPECIFICATIONS

  • The relay module shall be Lowell Model #RY-4A, which shall have a contact rating of 5 amps, 24VDC/250VAC. It shall include a 24VDC 5000 mA power supply. All connections shall be detachable Phoenix-style terminals. Relays shall be activated by contact closures or voltage input (5-24 AC or DC) and include a test switch. The module shall be enclosed in a steel chassis with black finish measuring 5"L x 1.69"H x 6.25"W. The chassis shall feature holes for mounting to a rack shelf or wall.
