Lowell SVC100-PA-DW
Roll over image to zoom in Click on image to zoom
Lowell SVC100-PA-DW

Lowell SVC100-PA-DW

Save $10.75
LowellSKU: SVC100-PA-DW
Price:
$78.81 $89.56

Description

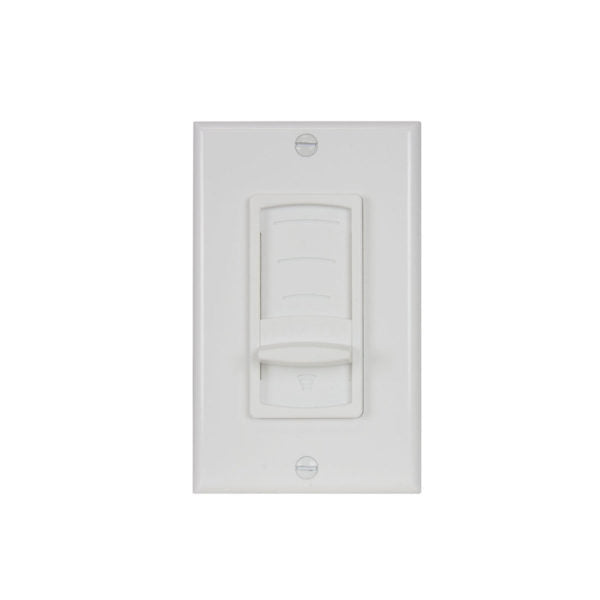

SVC100-PA-DW: 100W Attenuator w/Decorator Plate (ADA)


ADA-compliant mono attenuator with sliding bar and one-gang wall plate.


SPECIFICATIONS

  • Power Rating:  100W
  • Attenuation:  3dB per step (33dB total)
  • Use With:  25/70/100V speaker line
  • Activation:  Sliding bar
  • Volume Positions:  0-10
  • Two steps of 6dB each before off
  • Termination:  Phoenix-style
  • Wire Capacity:  14-gauge
  • Wall Plate:  1-gang decorator style
  • Finish:  White
  • Fits standard E.O. box (2.375 in. min. depth)

COMPLIANCE & CERTIFICATION

  • Made in the U.S.A. with global components
  • ETL Listed

A&E SPECIFICATIONS

  • The ADA compliant volume control with slide bar shall be Lowell Model SVC100-PA-DW. It shall feature 100W power rating, 3dB per step attenuation (6dB per step in last two positions before off), and 24VDC@15mA relay for emergency/paging signals to bypass/override the attenuator. It shall include a decorator style one-gang wall plate with white finish. The device shall be designed to fit an E.O. box with minimum inside dimensions of 1.875"W x 2.688"H x 2.375"D.
