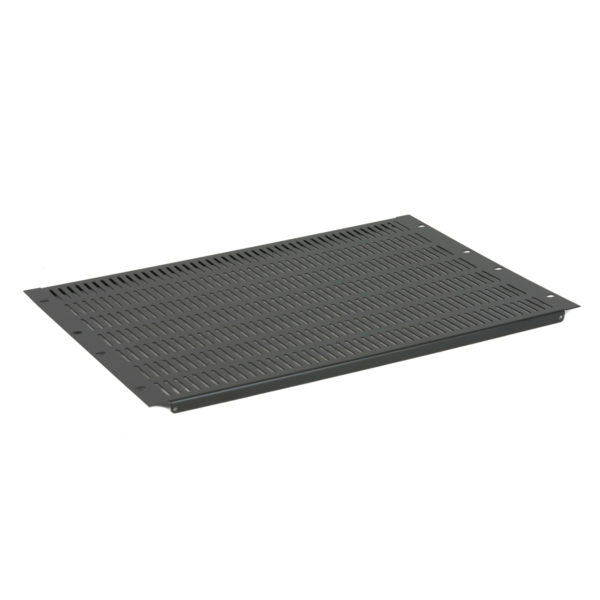

SVSP Series: Steel Vent Slotted Panels (7–10U)

Steel vent panels sized to fill the 7U or 10U top opening in many Lowell racks can also be used in 19 in. rack space in front of rack. See rack spec sheets for correct size needed

FEATURES

• Height:  3U, 4U, 7U panels (combine panels to fill all or part of 7U/10U openings)
• Width:  19 in.
• Material:  18-gauge steel
• Finish:  Smooth black semi-gloss
• Flange:  0.625 in.
• Obround Slots:  1.25 in. x .125 in. (on .375 in. centers)

COMPLIANCE & CERTIFICATION

• Made in the U.S.A.
• Certified U.S. steel
• E.I.A. compliant

A&E SPECIFICATIONS

• The rack vent panel shall be Lowell Model No. SVSP-_______, which shall be 18-gauge certified U.S. steel with a smooth black, semi-gloss, powder epoxy finish. It shall measure 19"W x ______RU and have a .625" flange. The panel shall feature 1.25" x .125" obround slots on .375" centers to allow passive ventilation.
