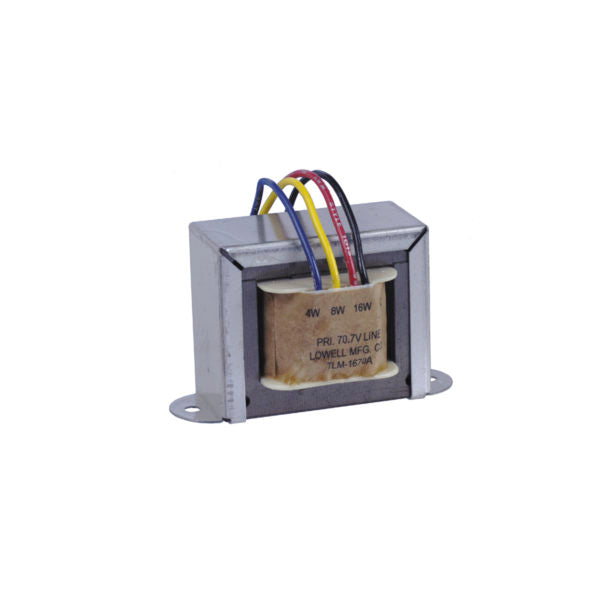

Transformer #TLM-1670A (16W)

High performance line-matching 16W transformer.

FEATURES

• Primary Voltage:  70V
• Power Rating:   16W
• Primary Taps:  4, 8, 16W
• Secondary Impedance:  8, 4 ohms
• Frequency Response:  50Hz–15kHz (±1dB)
• Lead Length:  18 in.
• Leads:  Color-coded
• Unit Size:  2.32 in. x 3.69 in. x 2.375 in.

A&E SPECIFICATIONS

• The line matching 16W transformer shall be Lowell Model TLM-1670A. Primary voltage shall be 70V with a power rating of 16 watts. Primary taps shall be available at 16/8/4 watts. Secondary impedance taps shall be available at 8 ohms and 4 ohms. All taps shall have clearly marked color-coded leads. Frequency response of the transformer shall be 50Hz–15kHz (±1dB) with insertion loss not to exceed 0.6 dB.
