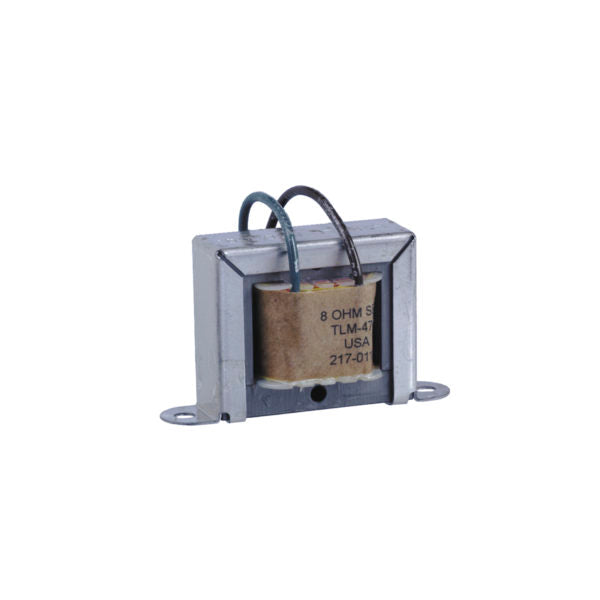

Transformer #TLM-470 (4W)

Line-matching transformer TLM-470 for high quality audio systems and general purpose paging applications where wide frequency response, low insertion loss, and high power handling are critical considerations. The TLM series features the industry standard open-housing design and color-coded leads for fast installation.

FEATURES

• Primary Voltage:  70V
• Power Rating:   4W
• Primary Taps:  .5, 1, 2, 4W
• Secondary Impedance:  8ohms
• Frequency Response:  60Hz–15kHz (±1dB)
• Lead Length:  8 in.
• Leads:  Color-coded
• Unit Size:  1.625 in. x 2.812 in. x 1.531 in.

A&E SPECIFICATIONS

• The line-matching transformer shall be Lowell Model TLM-470. Primary voltage shall be 70V with a power rating of 4W. All taps shall have color-coded leads with primary taps available at 4/2/1/0.5 watts and secondary impedance taps available at 8ohms. Frequency response shall be 60Hz-15kHz (±1dB) with insertion loss not to exceed 0.8 dB.
