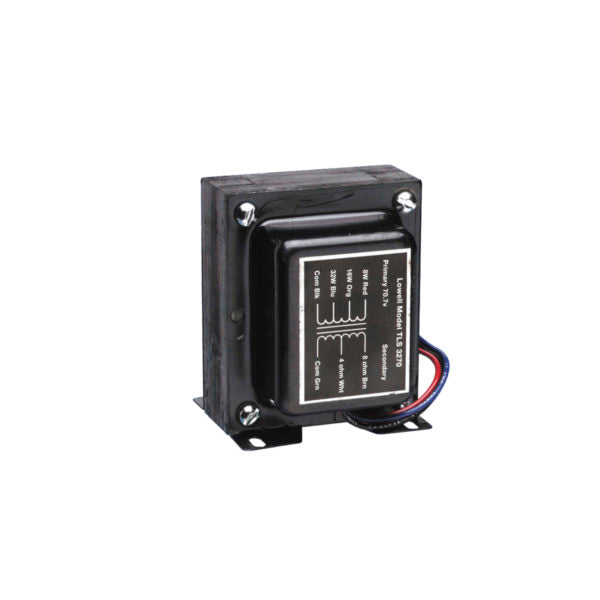

Transformer #TLS-3270 (32W)

Lowell 20/20 AudioVision™ line matching 32W transformers (TLS Series) provide true 20Hz–20kHz performance allowing a distributed speaker system to sound imperceptibly the same as a transformer-less direct-to-voice-coil system with the benefit of easier wiring layout, less expensive wire, and reduced labor. The transformer's full frequency response combined its high power handling allow a driver to operate at full potential while providing a stable load to the amplifier.

FEATURES

• Primary Voltage:  70V
• Power Rating:   32W
• Primary Taps:  8, 16, 32W
• Secondary Impedance:  8, 4 ohms
• Frequency Response:  20Hz–20kHz (±1dB)
• Lead Length:  18 in.
• Leads:  Color-coded
• Unit Size:  3.75 in. x 3.125 in. x 3.625 in.

A&E SPECIFICATIONS

• The line matching 32W transformer shall be Lowell Model TLS-3270. Primary voltage shall be 70V with a power rating of 32 watts and primary taps available at 32/16/8 watts. Secondary impedance taps shall be available at 8 ohms and 4 ohms. All taps shall have clearly marked color-coded leads. The transformer's frequency response shall be 20Hz-20kHz (±1dB) with insertion loss not to exceed 0.6dB.
